5.8 Diamond shaped drone antenna

4 month ago

8 0 

Tianjin Yingshun Communication Technology Co., Ltd

7 month

Product details

The 5.8G diamond shaped drone antenna is a high-frequency antenna designed specifically for drone image transmission systems, typically operating in the 5.8GHz frequency band and named after its unique diamond shaped structure. This type of antenna often adopts omnidirectional design, aiming to provide balanced signal coverage, reduce directional restrictions, and is suitable for scenarios such as FPV crossing aircraft and aerial drones. It can effectively improve image transmission stability and anti-interference ability. ‌

Main features and advantages:

Antennas typically have high gain characteristics (such as 8dBi), which can enhance signal strength and transmission distance. At the same time, their circular polarization design (such as right-handed circular polarization) can reduce multipath interference and improve signal reliability in complex environments (such as cities or forests). The interfaces often use standard SMA or IPEX, making it easy to quickly connect with mainstream drone devices such as DJI and self-organizing FPV systems.

Instructions:

Hello, welcome to our store! Ying Shun Communication specializes in designing and producing antenna products

100% brand new, of high quality!

Product Introduction:

Product name:

Frequency range: 5150-5850 MHz

Input impedance: 50 Ω

Gain (dBi): 3.5

Connector type: SMA male (customizable)

Antenna height 162mm

VSWR ：＜1.5

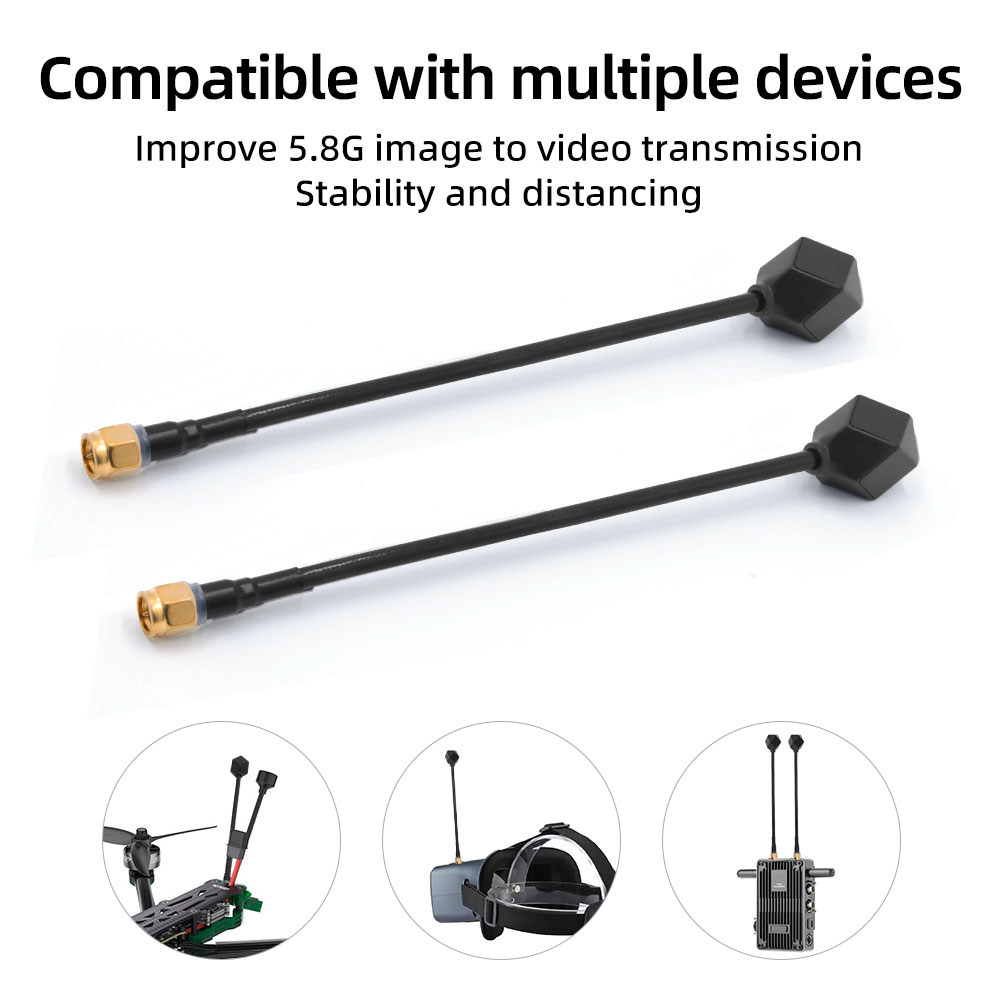

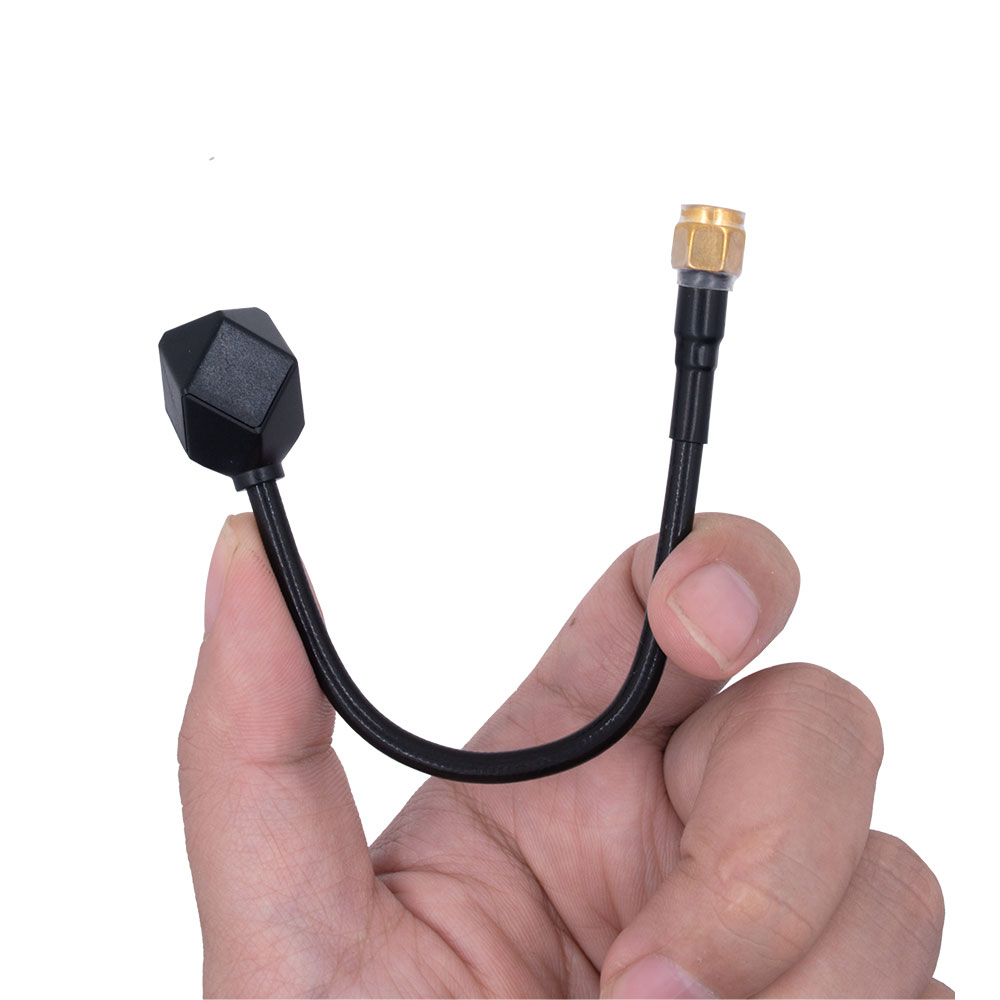

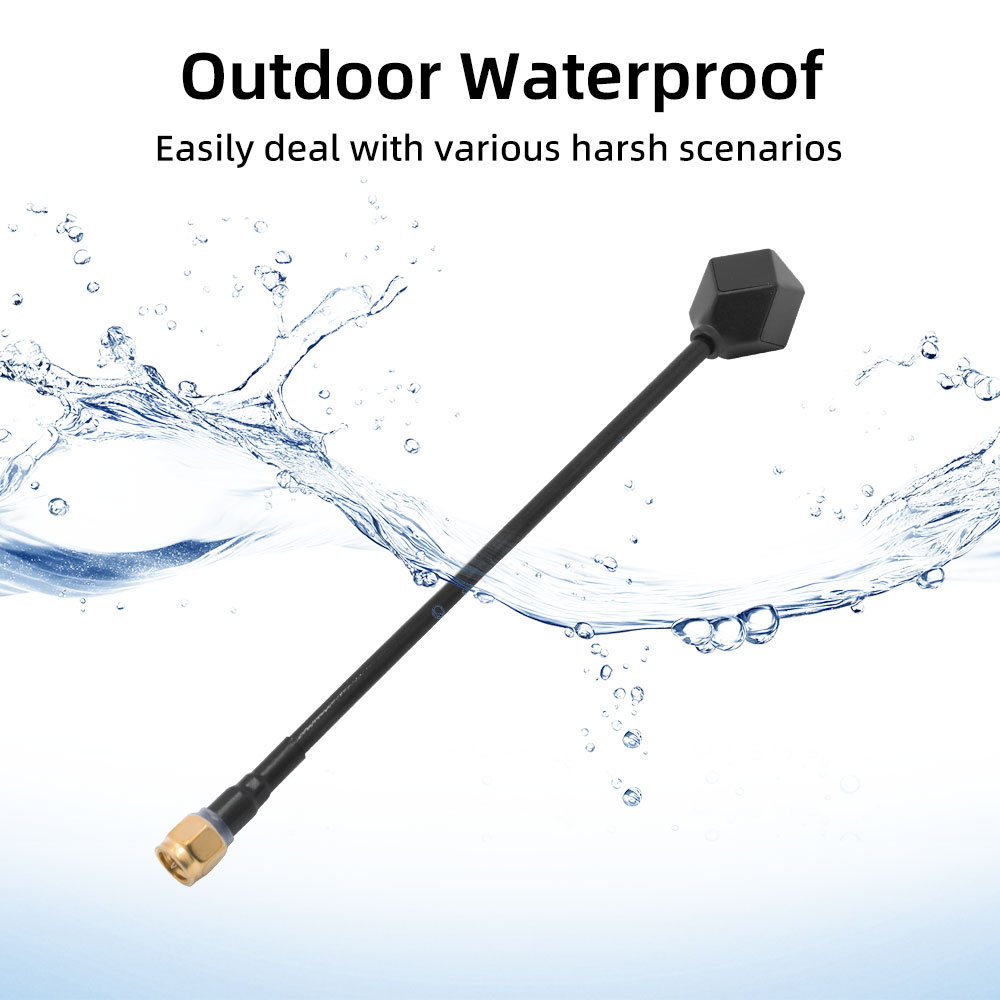

Product Display Image

Application scenarios and performance:

This antenna is widely used in scenarios such as long-distance image transmission, racing crossing machines, model aircraft aerial photography, and monitoring bridges. In areas with complex electromagnetic environments (such as urban villages), diamond shaped antennas can maintain stable image transmission rates and reduce packet loss and lag by optimizing frequency band utilization (such as 5.725-5.825GHz). ‌
