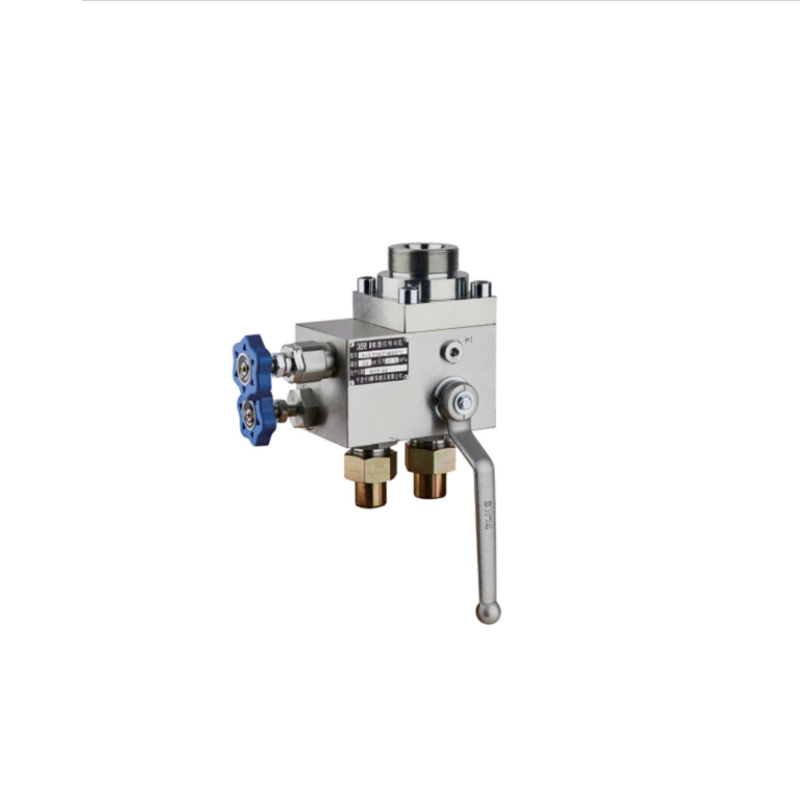

AJ-type accumulator control valve assembly

5 month ago

7 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

I. Model Description

• Name Code: Accumulator Control Valve Assembly

• Unloading Type:

• s: Manual unloading (standard type)

• d: With electromagnetic unloading

• Omitted: Without safety valve

• Nominal Diameter: 10, 20, 32 mm

• Safety Valve Pressure Rating:

• a: 6.3 MPa

• b: 16 MPa

• c: 25 MPa

• h: 31.5 MPa

• Structural Mode:

• z: Direct-acting relief valve

• c: Two-way cartridge relief valve

• Accumulator Connection Thread: M27×2, M42×2, M60×2, M72×2

II. Technical Parameters

• Nominal Pressure: 6.30 to 31.5 MPa

• Applicable Media: Mineral oil, water-glycol, and emulsion

• Media Temperature: -15°C to +65°C

III. Outline Dimensions (Examples)

Below are the outline dimensions for some common models (in mm):

【表格】

Model DN (mm) PN (MPa) L1 L2 L3 L4 W1 W2 W3 W4 H1 H2 H3 M1 M2 Weight (kg)

AJS-10※Z※ 10 10/20/31.5 25 69 90 155 42 55 20 25 40 25 55 M14×1.5 - 4

AJS-20※Z※ 20 - 45 105 145 210 42 90 40 35 53 35 20 - - 13

AJS-32※Z※ 32 - 50 120 155 225 42 95 40 40 53 40 26 - - 15

IV. Ordering Instructions

• When placing an order, the full model code must be specified. For example, an accumulator control valve assembly with a working pressure of 31.5 MPa, a nominal diameter of 20 mm, standard type, and an accumulator connection thread of M42×2 can be represented as AJS-20HZ/M42×2.

• If there are special requirements for the accumulator control valve assembly, please consult with the manufacturer.
