Yokelink Stainless Steel Cable Cleats
4 month ago
Product details

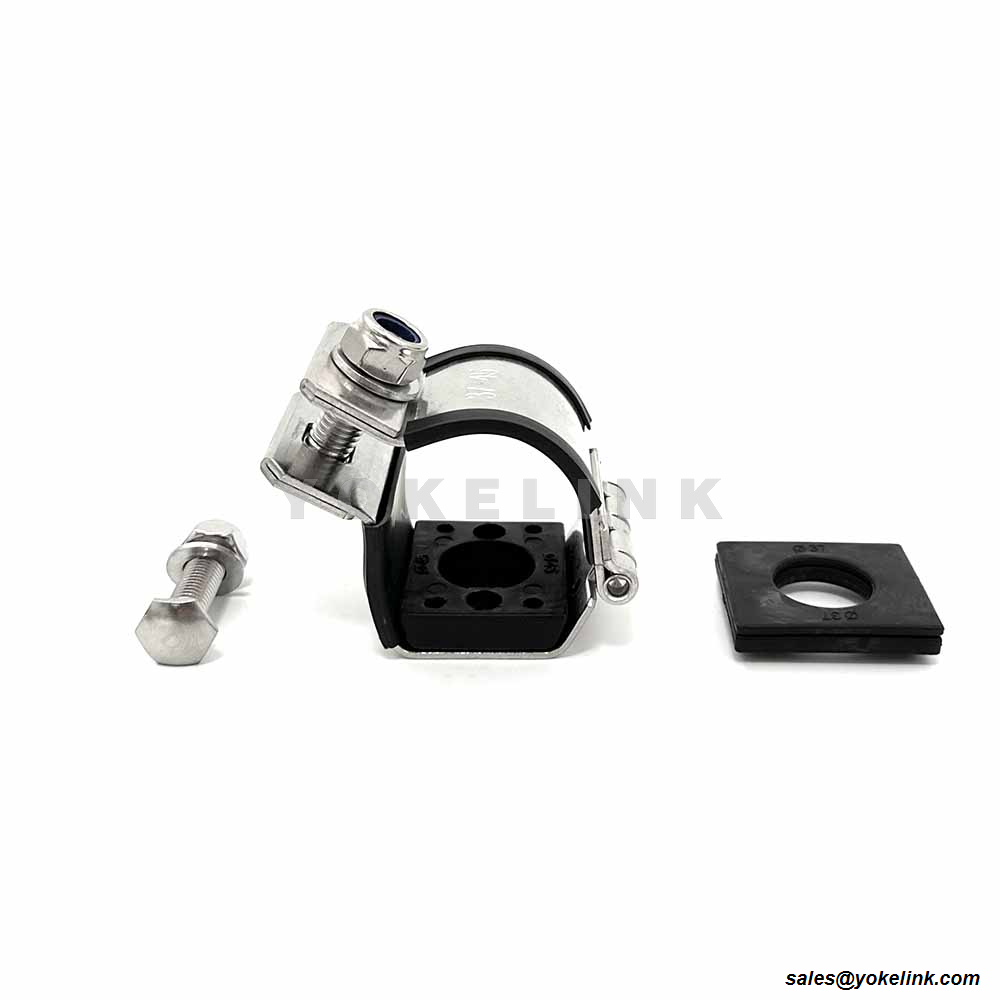

IEC 61914 Certifiated | 316L Stainless Steel Single Type Cable Cleats FF-S
Yokelink Cable Cleats Engineered to IEC 61914 standards, provides ultimate shortcircuit protection for high-voltage cable systems. Featuring a heavy-duty 50x2.1mm nonmagnetic 316L stainless steel frame, it eliminates eddy current heating while ensuring superior corrosion resistance. Integrated with LSZH (Low Smoke Zero Halogen) pads and vibration-proof 316L locking hardware, these composite cleats offer a secure solution for demanding marine, oil & gas,Offshore vessels, wind power, data centers, subways and utility applications. Available for Single Type, Trefoil Type and Quad Type.
Resistance to Electromechanical Force：
Test Cable Outer Dia: 35mm
9.5.2 180kA Perk 300mm Spacing
9.5.3 125kA Perk 600mm Spacing
Single Type Cable Cleats characteristic:
● Cleat Material: 316 L Stainless Steel, Non-magnetic
● Mounting Bolts: 316L SS, M6/M8/M10/M12 bolts available and Nylon Lock Nuts
● Intergral Pad: Low Smoke, Low Fume, Halogen Free
● Recommended Installation Spacing: 300mm or 600mm
● Packing Methods: Each unit packed in plastic bag first, then packed in strong cartons.
Single Type Cable Cleats Specifications:
For one cable, Tested to IEC 61914: 180kA Peak at 300mm spacing
| Part No. | Applicable Cable Range | Weight | |||
| Outer Diameter ФD (mm) | Kg / PC | ||||
| FF-S2832 | 27/28/29 | 31/32/33 | 0.326 | ||
| FF-S3438 | 33/34/35 | 37/38/39 | 0.333 | ||
| FF-S3239 | 31/32/33 | 34/35/36 | 38/39/40 | 0.381 | |
| FF-S3745 | 36/37/38 | 39/40/41 | 44/45/46 | 0.408 | |
| FF-S4452 | 43/44/45 | 47/48/49 | 51/52/53 | 0.443 | |
| FF-S5159 | 50/51/52 | 53/54/55 | 58/59/60 | 0.478 | |
| FF-S5866 | 57/58/59 | 61/62/63 | 65/66/67 | 0.507 | |
| FF-S6573 | 64/65/66 | 68/69/70 | 72/73/74 | 0.541 | |
| FF-S7385 | 72/73/74 | 74/75/76 | 78/79/80 | 84/85/86 | 0.624 |
| FF-S8494 | 83/84/85 | 85/86/87 | 89/90/91 | 93/94/95 | 0.658 |
| FF-S94118 | 93/94/95 | 97/98/99 | 105/106/107 | 117/118/119 | 0.833 |
| FF-S118130 | 117/118/119 | 119/120/121 | 123/124/125 | 129/130/131 | 0.811 |
| FF-S127150 | 126/127/128 | 130/131/132 | 138/139/140 | 149/150/151 | 0.978 |
| FF-S145155 | 144/145/146 | 154/155/156 | 1.015 | ||
DNV,ABS,CE,Short circuit test report, low smoke halogen-free report
Yokelink Cable Cleats with LSZH Pads: Our integral pads are Low Smoke, Low Fume, and Halogen Free, ensuring maximum personnel safety in confined spaces. Combined with 316L SS frames, they provide IEC 61914 certified short-circuit protection for marine, tunnel, and utility projects. Buy high-safety cable supports now.
Standardized Protection: Fully tested for short-circuit protection in accordance with IEC 61914, providing a critical line of defense for personnel and infrastructure.
Easy Installation: Only a standard wrench is required; includes all necessary mounting hardware for immediate deployment.
Yokelink FF-S Single Cable Cleat Cross-Reference Guide
Looking for Ellis EMPEROR™ SINGLE and CMP SAPPHIRE (SHDSS) equivalents? Yokelink FF-S series cable cleats offer a 2.1mm 316L SS frame and LSZH pads. IEC 61914 certified with 180kA short-circuit protection. High-performance, cost-effective alternatives for marine and utility projects.
Yokelink FF-S series is a direct equivalent to Ellis EMPEROR™ SINGLE and CMP SAPPHIRE (SHDSS)
| YOKELINK Part No. | Cable OD (mm) | CMP (SAPPHIRE)SHDSS |
Ellis EMPEROR SINGLE
|
Panduit |
| FF-S3239 | 32-39 | SHDSS032038 | ES32-39 | (The aluminum or polymer series are usually recommended) |
| FF-S3745 | 38-46 | SHDSS038046 | ES37-45 | |
| FF-S4452 | 44-52 | SHDSS046051 | ES44-52 | |
| FF-S5159 | 51-58 | SHDSS051058 | ES51-59 |
All third-party product names, logos, and brands (such as Panduit, Ellis Patents, and CMP) are property of their respective owners. Their use in this guide is for identification and cross-reference purposes only, and does not imply any affiliation with or endorsement by them. Yokelink FF Series are independent, high-performance alternatives engineered to meet or exceed industry standards.
Why choose YOKELINK as the "best alternative"?
1. Higher Specifications:
YOKELINK's frame thickness is 2.1mm, slightly thicker than the industry standard of 2.0mm,
resulting in greater structural stability under extreme short-circuit forces.
2. Materials Comparable:
Both use 316L non-magnetic stainless steel and LSZH (Low Smoke Halogen-Free) gaskets,
ensuring compliance in harsh environments such as marine and oil/gas spill conditions.
3. Installation Compatibility:
The mounting hole design references mainstream international standards,
allowing direct installation on existing Panduit or Ellis dedicated cable trays for seamless switching.
How to select Cable Cleats?
1. Know the Cables
- Which type of cable is being used, Single or Multi-Conductor?
- What is the outer diameter of Cables?
- What is the available short circuit current (RMS or IP Peak) of the cable?
- If a ground wire is installed in the cleats, know the outer Diameter of the ground wire.
2. Know the System and Cleat Types
- What is the cable formation, Single or Trefoil?
- What type of the cable tray is installed?
If you have any questions or confusion on selecting the cleats models for different cables, please feel free to send us the inquiry details, Our team is ready to offer any clarification or customization options to meet your needs.
