YZPST-BYT62 Standard Avalanche Sinterglass Diode

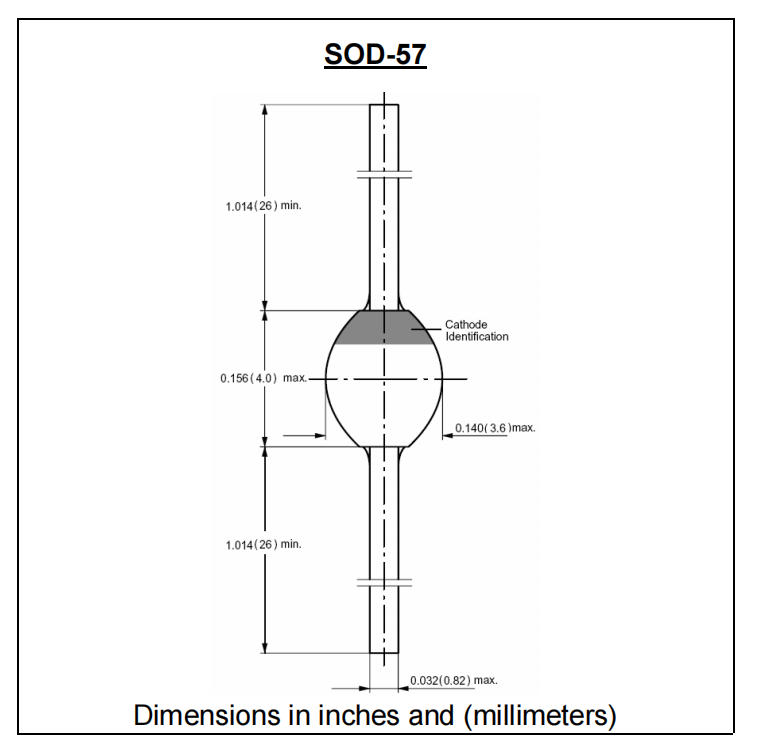

MAXIMUM  RATINGS  AND  ELECTRICAL  CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25。C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

BYT62

units

Maximun Repetitive Peak Reverse Voltage

Vrrm

2400

V

Maximum RMS Voltage

Vrms

1680

V

Maximum DC blocking Voltage

Vdc

2400

V

Maximum Average Forward Rectified Current

If(av)

0.35

A

Non-Repetitive Peak Forward Surge Current at tp=10ms half sinewave

Ifsm

10.0

A

Maximum Instantaneous Forward Voltage at 0.5A

Vf

3.0

V

Maximum DC Reverse Current                            Ta =25。C

at rated DC blocking voltage                             Ta =150。C

Ir

10.0

250.0

μA

Typical Reverse Recovery Time                            (Note 1)

Trr

2000

nS

Typical Thermal Resistance                                   (Note 2)

Rth(ja)

60

K /W

Storage and Operating Junction Temperature

Tstg, Tj

-65 to +175

C。

Note:

1.  Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A

2.  on PC with spacing 25mm
