12135 truck dropside latch

A Truck Dropside Pillar Latch (often called a "Pillar Lock" or "Kinnegrip style" latch) is a professional-grade locking system where the latching mechanism is built directly into the vertical support posts (the pillars) of a flatbed or tipper truck.

While a standard dropside latch is just a handle on the panel, a Pillar Latch is a structural part of the truck's frame. It allows the sideboards to lock into the corner or center posts, and often allows the posts themselves to be removed for a completely clear loading floor.

How It Works

These systems are more complex than simple toggle latches. They typically feature:

1. Internal Rods: The handle on the pillar moves internal rods or "rule rods" up and down inside the post.

2. Two-Stage Locking: * Stage 1: The latch is "cracked" open but still caught, ensuring the heavy sideboard doesn't fall on the operator if the cargo has shifted.

   • Stage 2: The latch fully releases, allowing the panel to drop.

3. Removability: In many systems (like the common Kinnegrip K20), once the side panels are dropped, you can flip a second lever to "unplug" the entire pillar from the truck bed, turning your dropside truck into a flatbed in seconds.

Key Components

• The Pillar: The vertical aluminum or steel post at the corners or center of the bed.

• The Handle: Usually recessed into the pillar to prevent damage from forklifts.

• The Pocket/Socket: The heavy-duty hole in the truck's "side rave" (the edge of the floor) where the pillar sits.

• The Keeper/Catch: A small plate on the end of the sideboard that the pillar's internal hook grabs onto.

Why Use a Pillar Latch Instead of a Standard Latch?

Common Materials & Styles

• Anodized Aluminum: The most popular choice for modern trucks because it's lightweight and doesn't rust.

• Galvanized Steel: Used for heavy-duty tippers and construction trucks where impact resistance is the priority.

• Pendulum Pillars: A specialized version for tipper trucks. It allows the tailgate to swing from the top (like a pendulum) to dump gravel, or drop from the bottom like a normal tailgate.

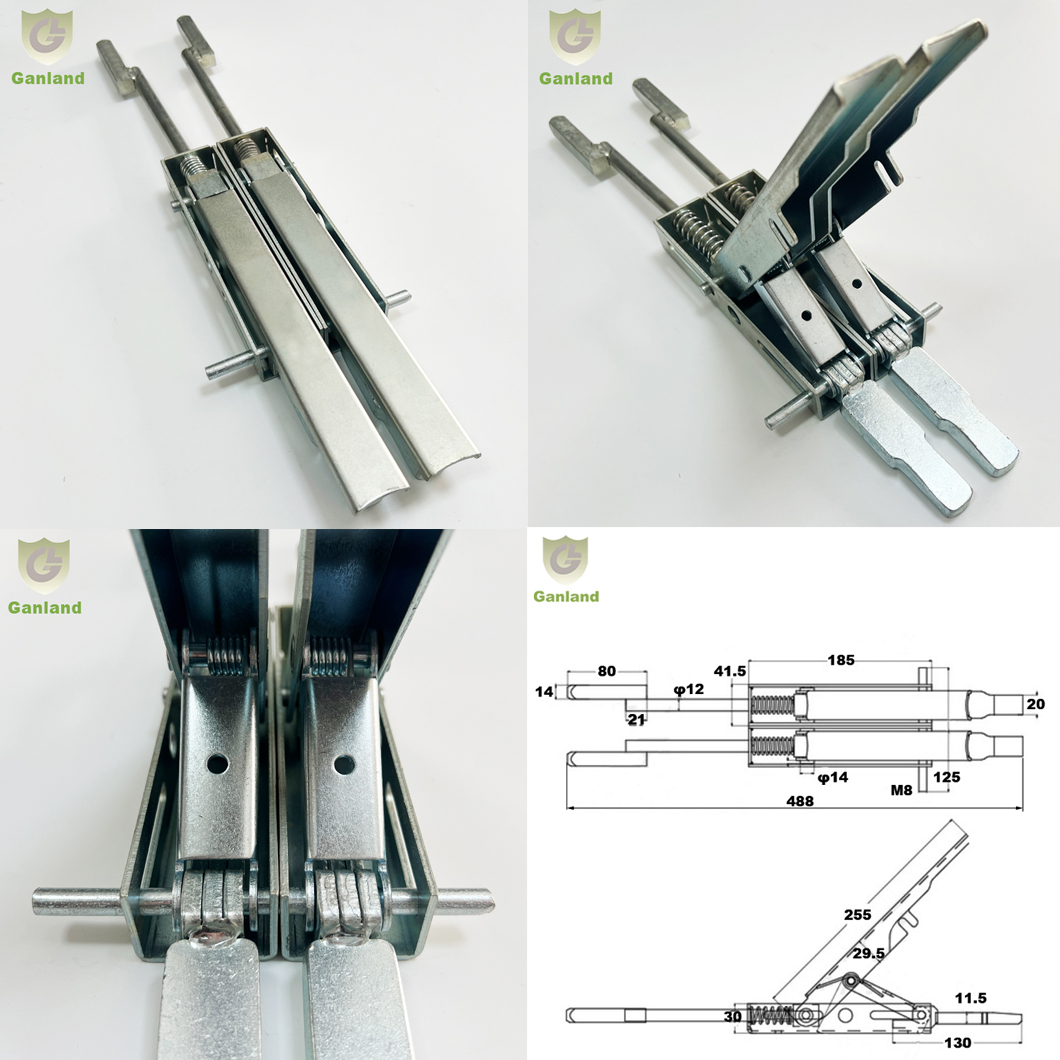

GL-12135 Truck Dropside Pillar Latch Sping Lock Heavy Duty application, very popular for Central Asia market

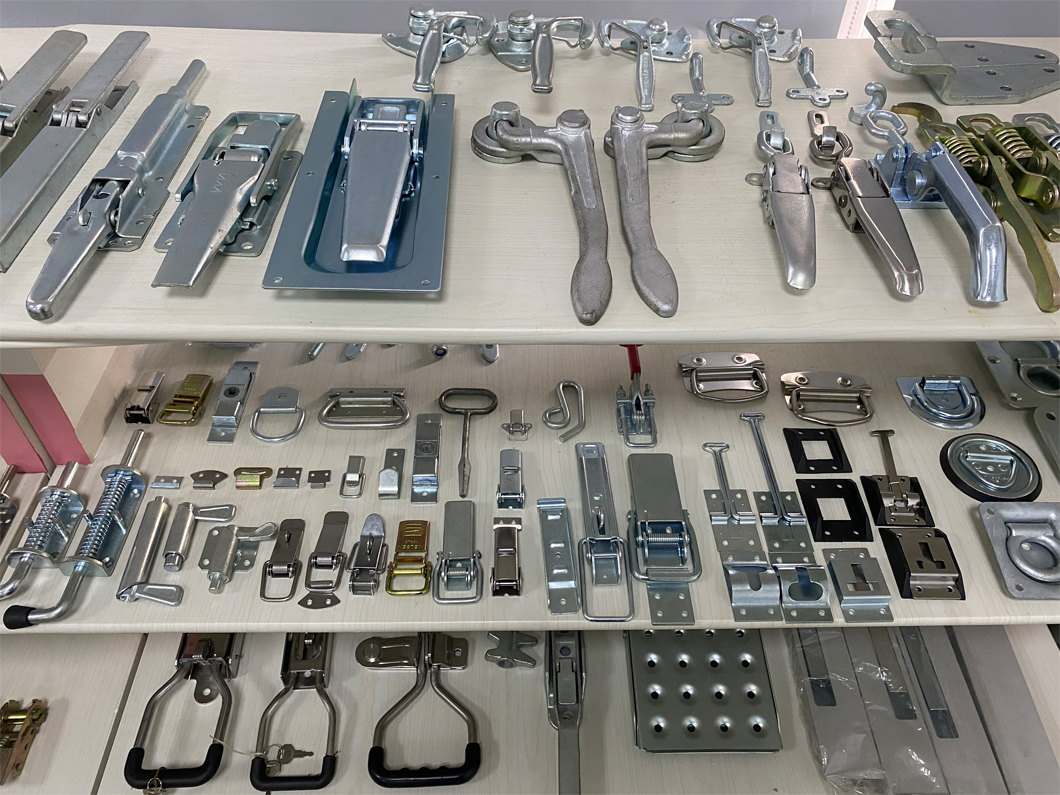

Jiaxing Ganland Auto Parts Co., Ltd. is a professional manufacturer specializes in designing and producing different types of machinery parts for trucks and other commercial vehicles. Our main products include Truck Trailer Cam Door Locks , Toolbox Serie, Truck Door Hinges, Fastener Serie, Cargo Control, Curtainsider Truck Parts, Wing Opening Van Parts , Rubber Bumpers & Buffers, Trailer Mudguard , Truck Door Seal , Excavator Body Parts, and Other Hardware And Accessories
