12122 Toolbox Paddle Latch Lock

A Tool Box Paddle Latch is the most common type of flush-mounted handle used to secure truck bed toolboxes, service body doors, and heavy-duty storage cabinets.

It gets its name from the flat, rectangular "paddle" handle that you pull toward you to retract the locking bolt. Because it sits recessed into the door, it provides a clean, snag-free surface on the outside of your vehicle.

Why It’s the Industry Standard

The paddle latch is popular because it combines three specific functions into one small unit:

1. Slam-Latch Convenience: You don’t have to turn a handle to lock the door. You simply "slam" the lid or door shut, and the spring-loaded bolt clicks into place automatically.

2. Integrated Security: It features a built-in key cylinder right on the face of the paddle.

3. Low Profile: Since the handle doesn't stick out, it won't get caught on your clothes, tools, or branches as you move around the truck.

Key Components

• The Paddle: The moving part you pull to open.

• The Gasket: A rubber seal that prevents water from leaking into the toolbox.

• The Bolt (Tongue): The spring-loaded piece that "grabs" the frame.

• The Cutout: The rectangular hole you must have in your door to install the latch.

Technical Specifications to Know

If you are buying a replacement or building a box, these are the two things you must check:

Single-Point vs. Multi-Point

• Single-Point: The paddle moves one bolt. Perfect for standard horizontal toolboxes.

• Multi-Point: The paddle is connected to long rods inside the door. When you pull the handle, it unlatches the door at the top and bottom simultaneously. These are used for tall vertical doors on service trucks.

Pro-Tip: If your latch is "sticking" or hard to pull, don't just force it. Usually, a quick spray of dry silicone lubricant (not WD-40, which attracts dust) into the keyhole and behind the paddle will make it feel brand new.

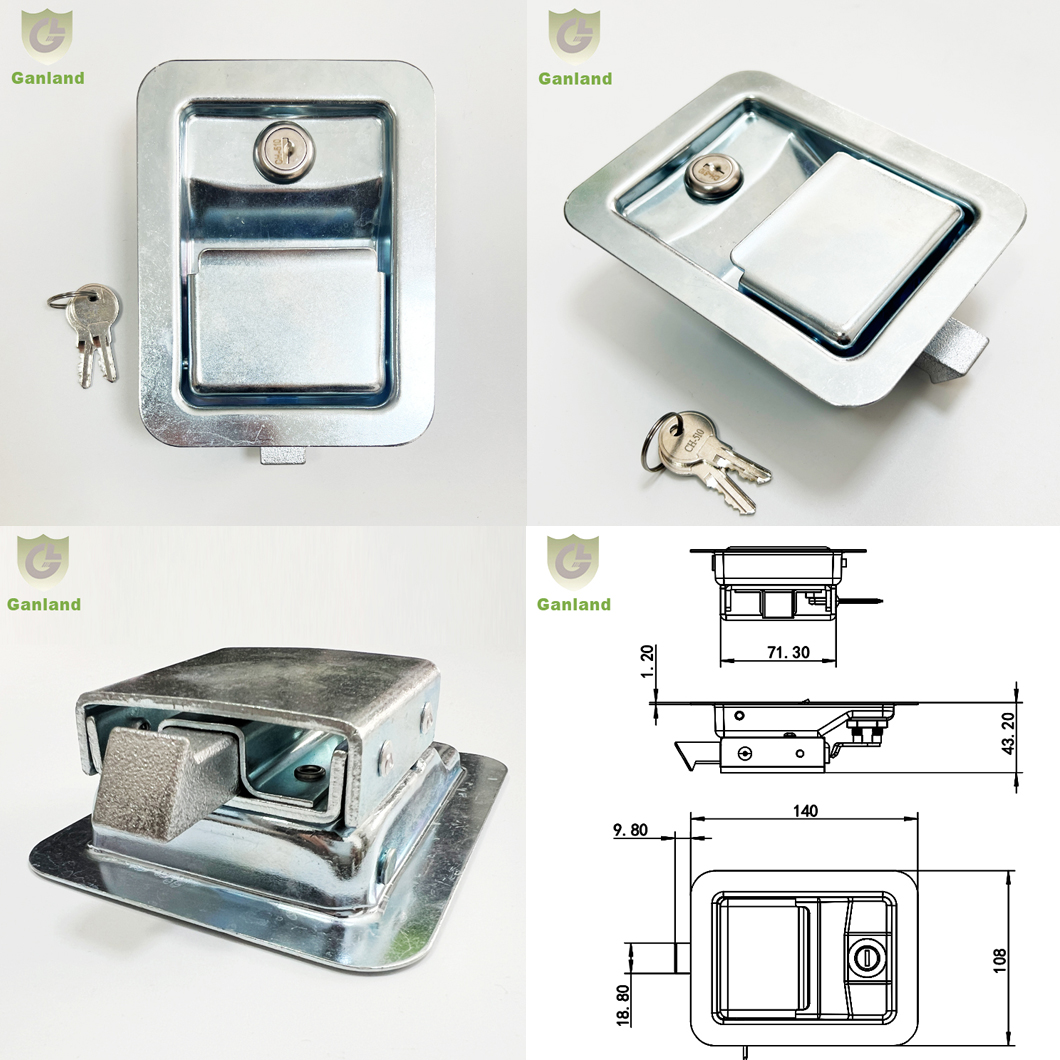

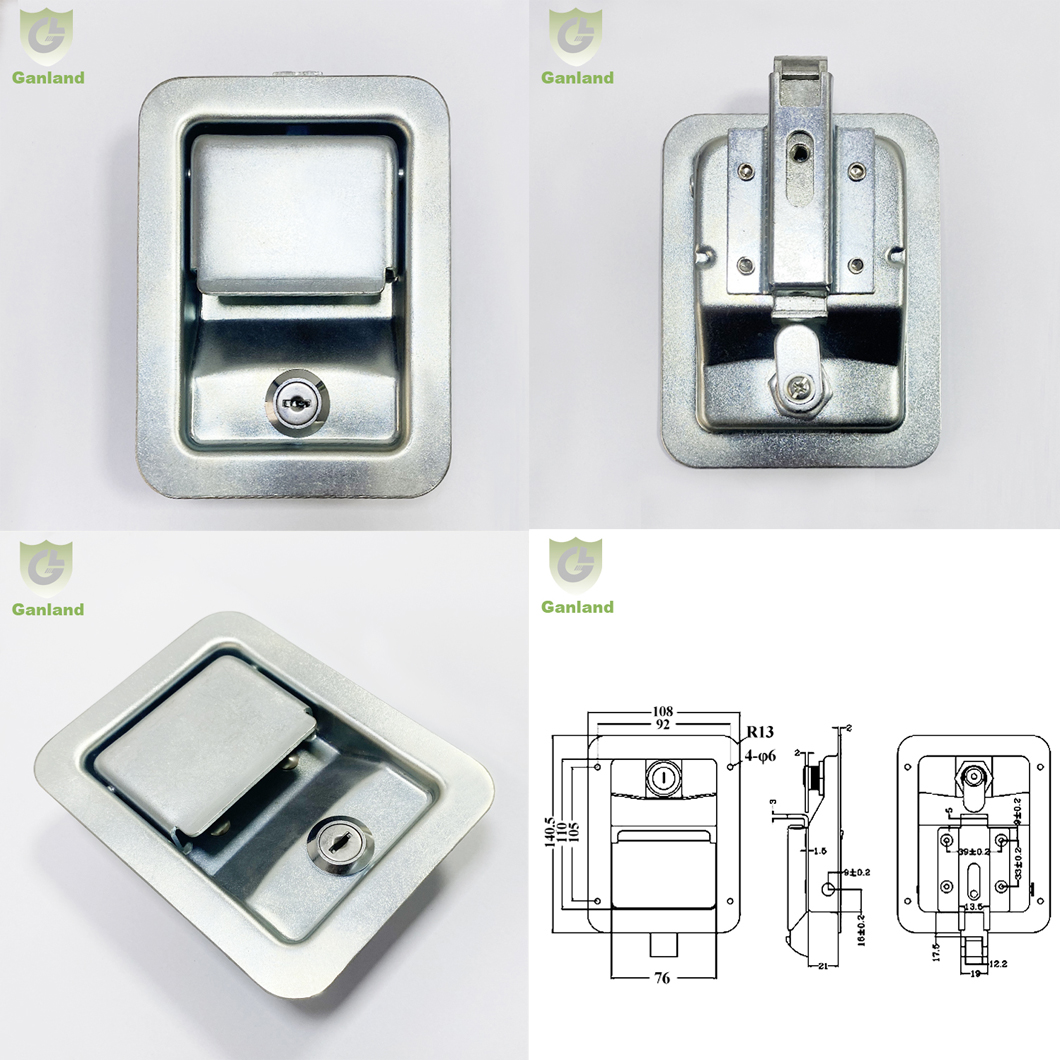

GL-12122 Steel Trailer Truck Tool Box Paddle Latch Lock size is 140*108, weight 0.8kgs, very heavy duty and durable.
