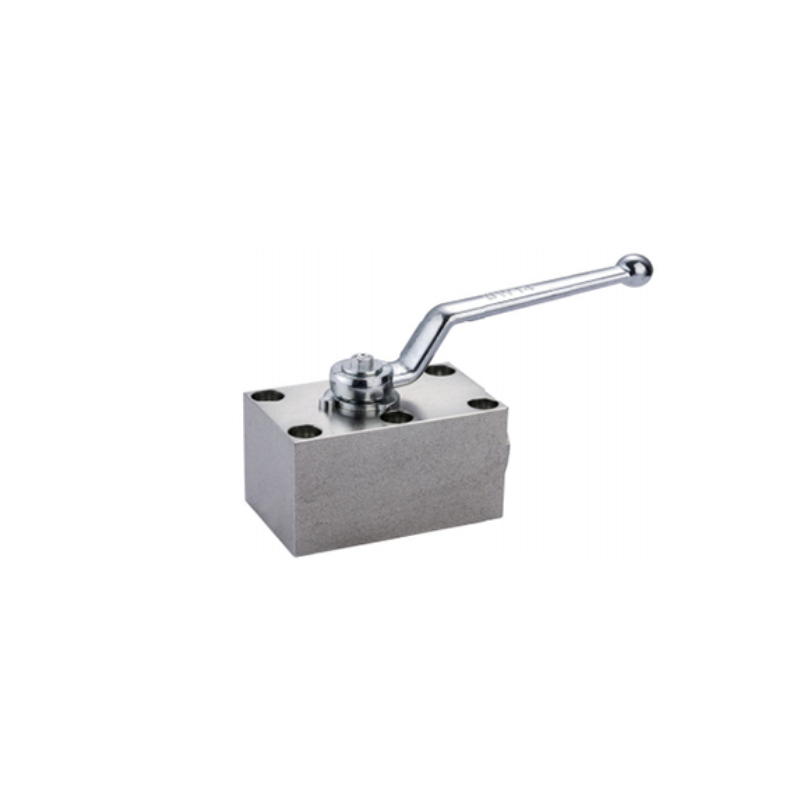

KHP Series Plate-Type Ball Valve
TheKHP Series Plate-Type Ball Valveis a high-performance valve widely used in industrial fluid control applications. It features a compact structure, rapid response, and reliable sealing, making it suitable for various high-pressure, high-temperature, and corrosive media control scenarios.
------
Key Features
1. High-Pressure Resistance
• Designed for high-pressure environments, the KHP series offers a wide range of nominal pressure ratings to meet diverse industrial requirements.
2. High-Temperature Performance
• Capable of stable operation under high-temperature conditions, making it ideal for applications requiring thermal control.
3. Reliable Sealing
• Utilizes advanced sealing technology and materials to ensure leak-free performance in the closed position, enhancing system safety and reliability.
4. Compact Structure
• The plate-type design ensures a space-saving footprint, facilitating easy installation and maintenance.
5. Flexible Operation
• Available with multiple actuation methods, including manual, pneumatic, and electric, allowing customization based on specific needs.
6. Diverse Material Options
• Components such as the valve body, ball, and seat can be manufactured from various materials to accommodate different media corrosion requirements.
------
Technical Specifications
• Nominal Diameter (DN): Typically includes DN6, DN10, DN16, DN20, DN25, DN32, DN40, DN50, and other sizes.
• Nominal Pressure: Ranges widely, such as 31 MPa to 50 MPa, depending on the model and material.
• Operating Temperature: Varies based on material and sealing components, e.g., -25°C to +100°C or -30°C to +170°C.
• Actuation Methods: Manual, pneumatic, electric, etc.
• Valve Body Material: Carbon steel, stainless steel (e.g., 304, 316), etc.
• Ball Material: Steel, brass, etc.
• Sealing Material: Nitrile rubber (NBR), fluororubber (FKM), etc.
------
Applications
The KHP Series Plate-Type Ball Valve is widely used in the following fields:
1. Hydraulic Systems
• Controls the flow direction and pressure of hydraulic oil.
2. Chemical Systems
• Suitable for controlling various corrosive media.
3. Energy Industry
• Fluid control in power generation, oil, and natural gas sectors.
4. Metallurgical Industry
• Fluid control in blast furnaces, converters, and other equipment.
5. Environmental Protection Industry
• Fluid control in wastewater treatment and exhaust gas treatment systems.
------
Selection and Usage Considerations
1. Select Based on Media Characteristics
• Choose the appropriate valve model and material based on the pressure, temperature, and corrosiveness of the media.
2. Pay Attention to Installation Orientation
• Ensure the valve is installed in alignment with the fluid flow direction to avoid affecting normal operation.
3. Regular Inspection and Maintenance
• Periodically check the valve's sealing performance and actuation device status. Replace worn components promptly to ensure long-term stable operation.
