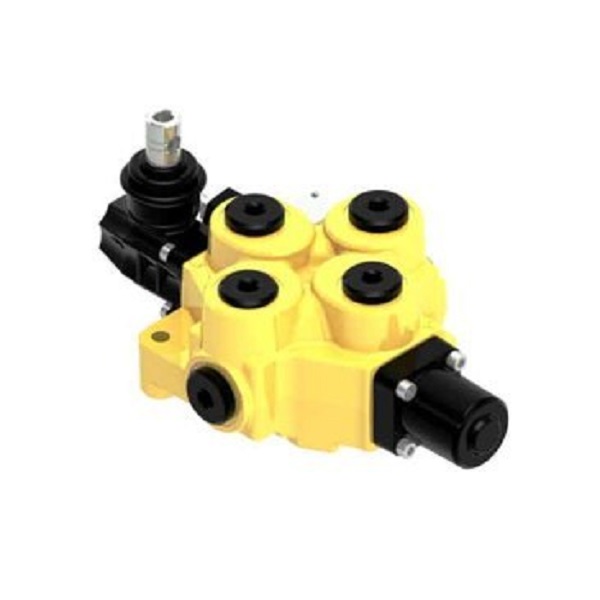

M120 Integrated Multi-Way Valve
5 month ago
Product details
I. Product Overview
TheM120 Integrated Multi-Way Valveis a high-performance, modular-designed multi-port control valve specifically developed for flow distribution, directional control, and pressure regulation in hydraulic systems. Its integrated structure reduces piping connections, minimizes leakage risks, and enhances system reliability and response speed.
------
II. Key Design Features
1. Integrated Structure
• The valve body and functional modules are integrated, reducing installation space and connection points while lowering system complexity.
• Modular components enable quick replacement for easy maintenance and upgrades.
2. Multi-Way Control
• Supports bidirectional or multi-directional fluid control for flow distribution, directional switching, and throttling.
• Suitable for complex hydraulic circuits, such as multi-actuator联动 (coordinated) control in construction and agricultural machinery.
3. High-Precision Sealing
• Utilizes high-performance sealing materials (e.g., PTFE or NBR) to ensure leak-free operation under high pressure.
• Wear-resistant design extends service life.
4. High Pressure & Corrosion Resistance
• Valve body typically made of carbon steel or stainless steel, capable of withstanding pressures up to350 bar or higherand corrosive media.
• Surface treatments (e.g., nickel plating or painting) enhance environmental adaptability.
5. Flexible Actuation Options
• Available in manual, pneumatic, electric, or hydraulic actuation to meet diverse automation needs.
• Supports proportional or on/off control for precise operation.
------
III. Key Technical Specifications
【表格】
Parameter Specification
Nominal Diameter (DN) DN10–DN50 (model-dependent)
Rated Pressure 350 bar–630 bar (optional)
Operating Temperature -40°C to +120°C (seal material-dependent)
Flow Range 10–200 L/min (valve port size-dependent)
Connection Type SAE flange, BSP thread, or manifold mount
Control Mode Manual, pneumatic, electric, or electro-hydraulic proportional control
------
IV. Typical Applications
1. Construction Machinery
• Coordinated control of multiple actuators (e.g., cylinders, motors) in excavators, loaders, and cranes.
2. Agricultural Machinery
• Flow distribution and directional switching in hydraulic systems of combine harvesters and tractors.
3. Industrial Automation
• Precision fluid control in injection molding machines and die-casting equipment.
4. Energy & Marine
• Hydraulic power units (HPUs) in wind turbine systems and ship steering gear.
------
V. Product Advantages
1. Energy Efficiency
• Reduces piping pressure loss, lowering system energy consumption.
2. Easy Installation
• Modular design shortens installation time and reduces labor costs.
3. High Reliability
• Integrated structure minimizes leakage points, ensuring low failure rates and long maintenance intervals.
4. Strong Adaptability
• Customizable designs meet special requirements (e.g., explosion-proof or low-temperature environments).
------
VI. Selection Guidelines
• Choose the appropriate nominal diameter and rated pressure based on system flow and pressure demands.
• Confirm actuation method (e.g., remote control or proportional regulation).
• Select sealing materials compatible with the media type (e.g., hydraulic oil or water-based fluids).
