UV-D-355 high power laser
4 month ago
355 nm laser includes DPSS laser (diode-pumped solid-state) and pulse laser. All solid state 355nm UV laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, measurement, physics experiment, laser rapid modeling, etc.
355nm laser products includes 7 series: UV high stability laser, UV passively Q-switched laser, UV actively Q-switched laser, UV picosecond laser, UV lamp pumped Q-switched Laser, UV fiber laser , UV fiber coupled laser system.
As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, High power laser, optical measuring equipment, single longitudinal mode laser, laser processing equipment, High energy laser,machine vision and the photoelectric detection equipment.
Applications
- Holographic, photography
- Lithography
- Raman spectra
- Fluorescence excitation
- Bioengineering
- Interference measuring method
- Photoelectric inspection
- Material analysis
- Semiconductor Inspection
Spectifications
|
Wavelength (nm) |
355±1 |
||||
|
Operating mode |
CW |
||||
|
Model |
UV-FN-355 |
UV-A-355 |
UV-B-355 |
UV-C-355 |
UV-D-355 |
|
Output power (mW) |
1-50 |
50-450 |
100-1000 |
1W-2W |
2W-5W |
|
Power stability (rms, over 4 hours) |
<5%, <3% ,(<2% optional) |
<3%, <2%, <1% |
<3%, <2%, <1% |
<2%, <1% |
<3%, <2%, <1% |
|
Transverse mode |
TEM00 |
/ |
|||
|
M2 |
<1.5 |
/ |
<1.2/<1.2 |
<1.3 |
<1.5 |
|
Beam diameter at the aperture (1/e2, mm) |
<1.0 |
<3.0 |
<2.0 |
~2 |
|
|
Beam divergence, full angle (mrad) |
<1.2 |
<3.0 |
<5.0 |
<4.0 |
<4.5 |
|
Polarization Ratio |
>50:1, Vertical (Horizontal Optional) |
>100:1, Horizontal |
>100:1 Horizontal |
||
|
Warm-up time (minutes) |
<10 |
||||
|
Cooled method |
Air cooled (Add hest sink) |
Water cooled (WCH-580 water chiller) |
Water cooled |
||
|
Operating Temperature (°C) |
10-35 |
||||
|
Power supply (90-264VAC) |
PSU-H-FDA |
PSU-W-FDA |
DC 24V/ 13A （PSU-24/ PSU-24-P optional） |
DC 36V/13.9A |
DC 36V/ 19.6A |
|
Warranty |
1 year |
|
|||
|

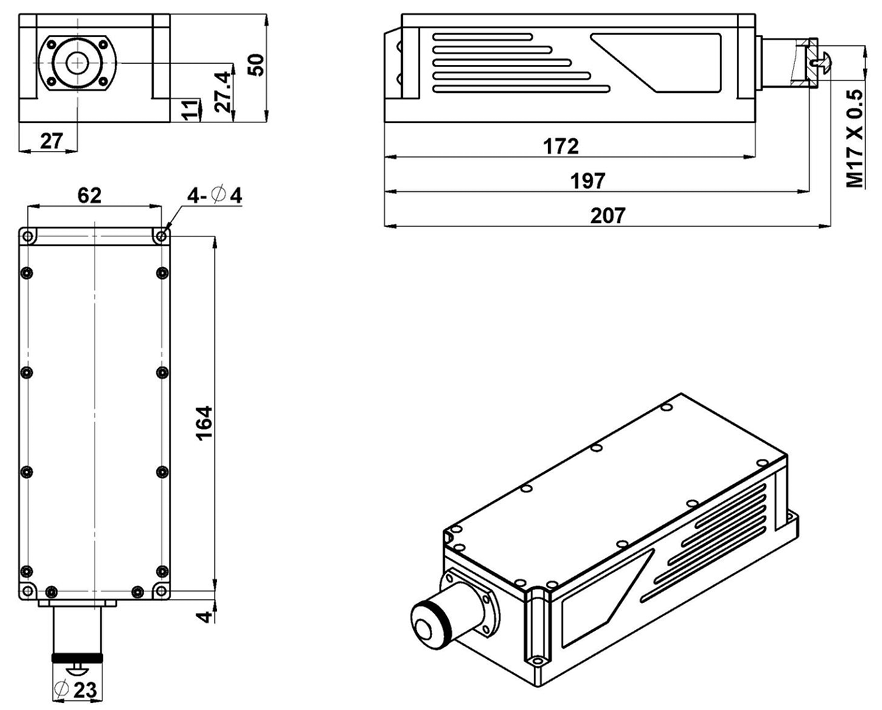

LASER HEAD
(UV-FN-355 ≤50mW)
|
LASER HEAD
(UV-A-355 50mW-450mW)
|
 |
 363(L)×215(W)×100(H)mm3, 8.0kg
|
|

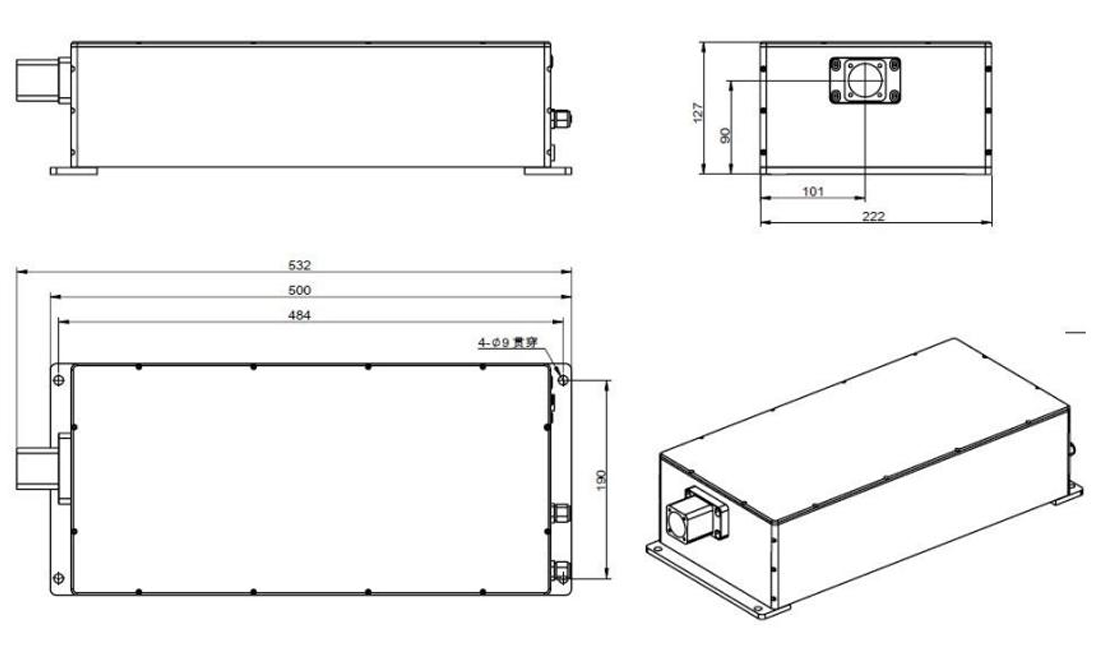

LASER HEAD Integrated electronics
(UV-B-355 100mW-1000mW)
|

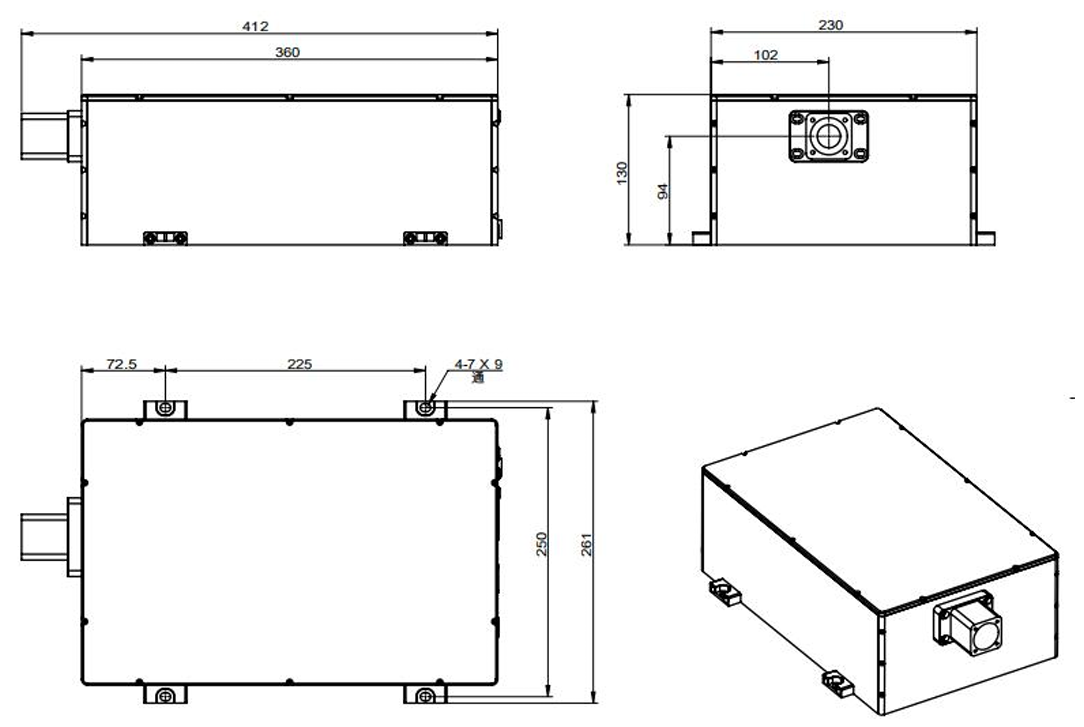

LASER HEAD Integrated electronics
(UV-C-355 1W-2W)
|
 |
 |
|

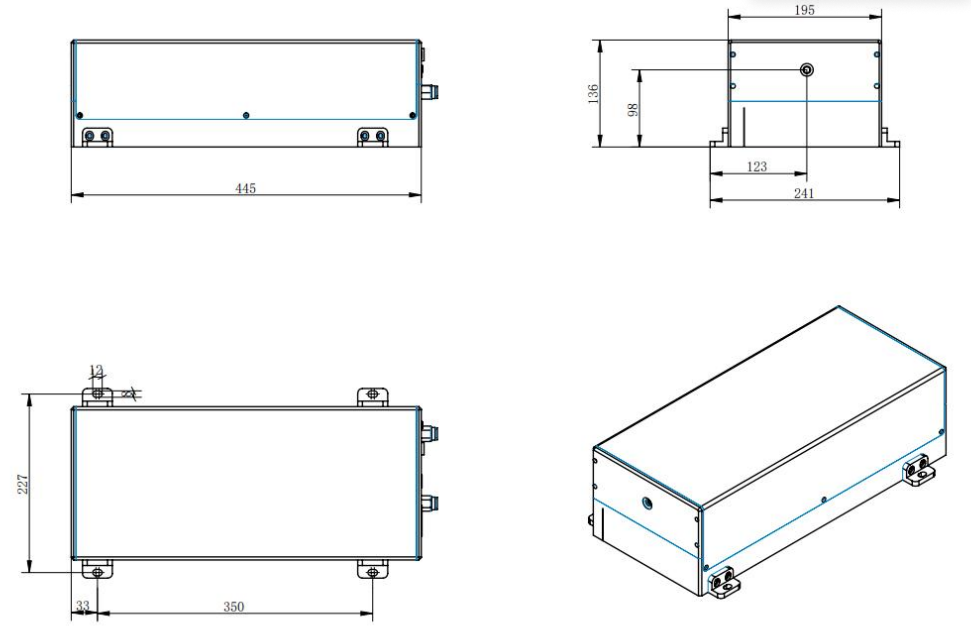

LASER HEAD Integrated electronics
(UV-D-355 2W-5W)
|

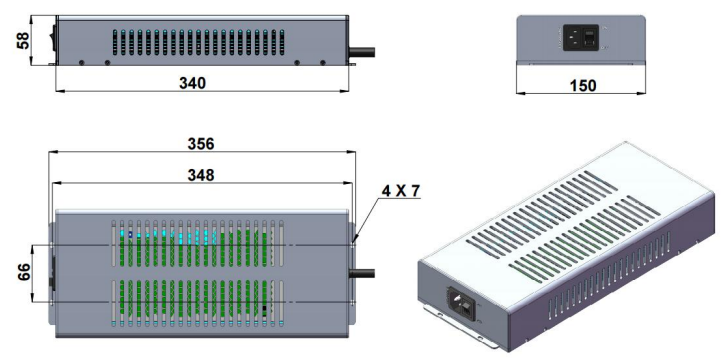

PSU-36
(Power supply 100-240VA)
|
 |
 DC36V 19.6A;356(L) ×150 (W) ×58 (H) mm3 , 3.51 kg
|
|
POWER SUPPLY
(PSU-H-FDA)
|

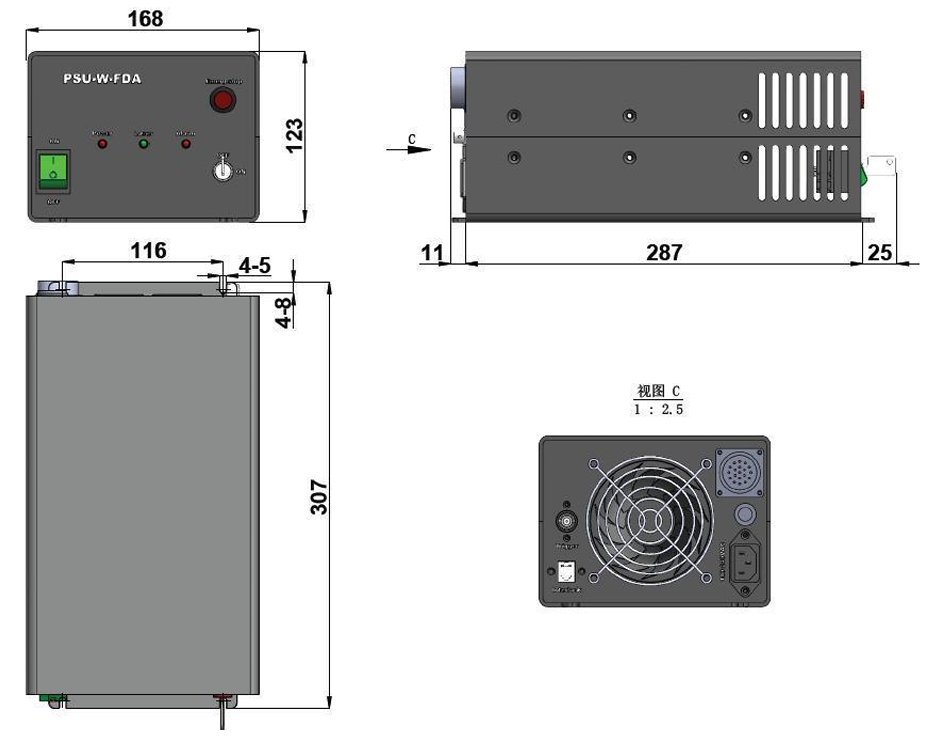

POWER SUPPLY
(PSU-W-FDA)
|
 |
 |
|

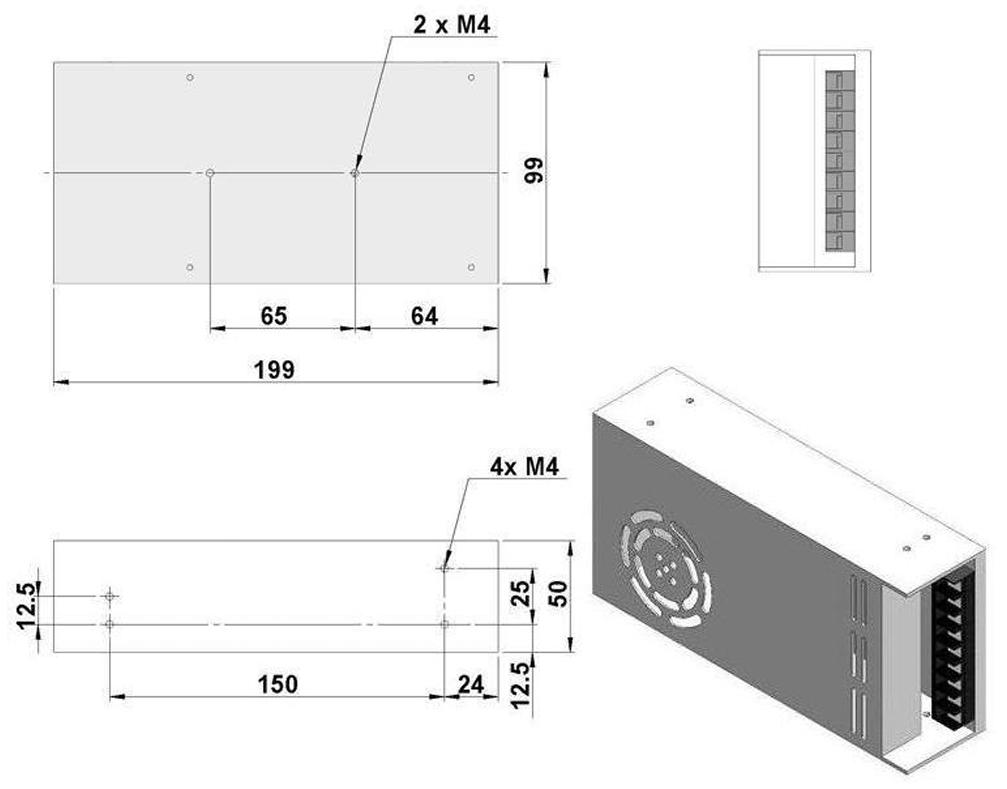

PSU-24
(Power supply 100-240VA, adaptor for 24V/13A)
|
PSU-24-P
(Power supply 100-240VA, adaptor for 24V/13A, and power control function is included)
|
 |
 |
|

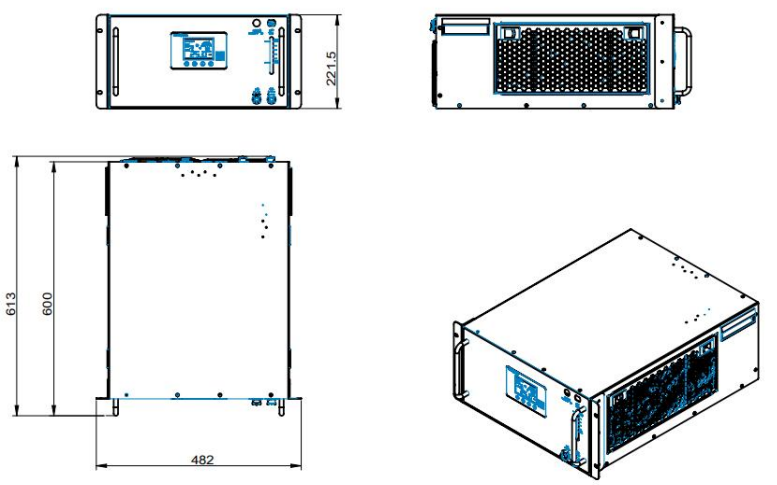

Water Chiller for UV-D-355
|
Water Chiller (WCH-580) |
 613(L) ×482 (W) ×221.5(H) mm3 , 28 kg
|
 369.8(L)×258.4(W)×240.6(H)mm3, 10.5kg
|
