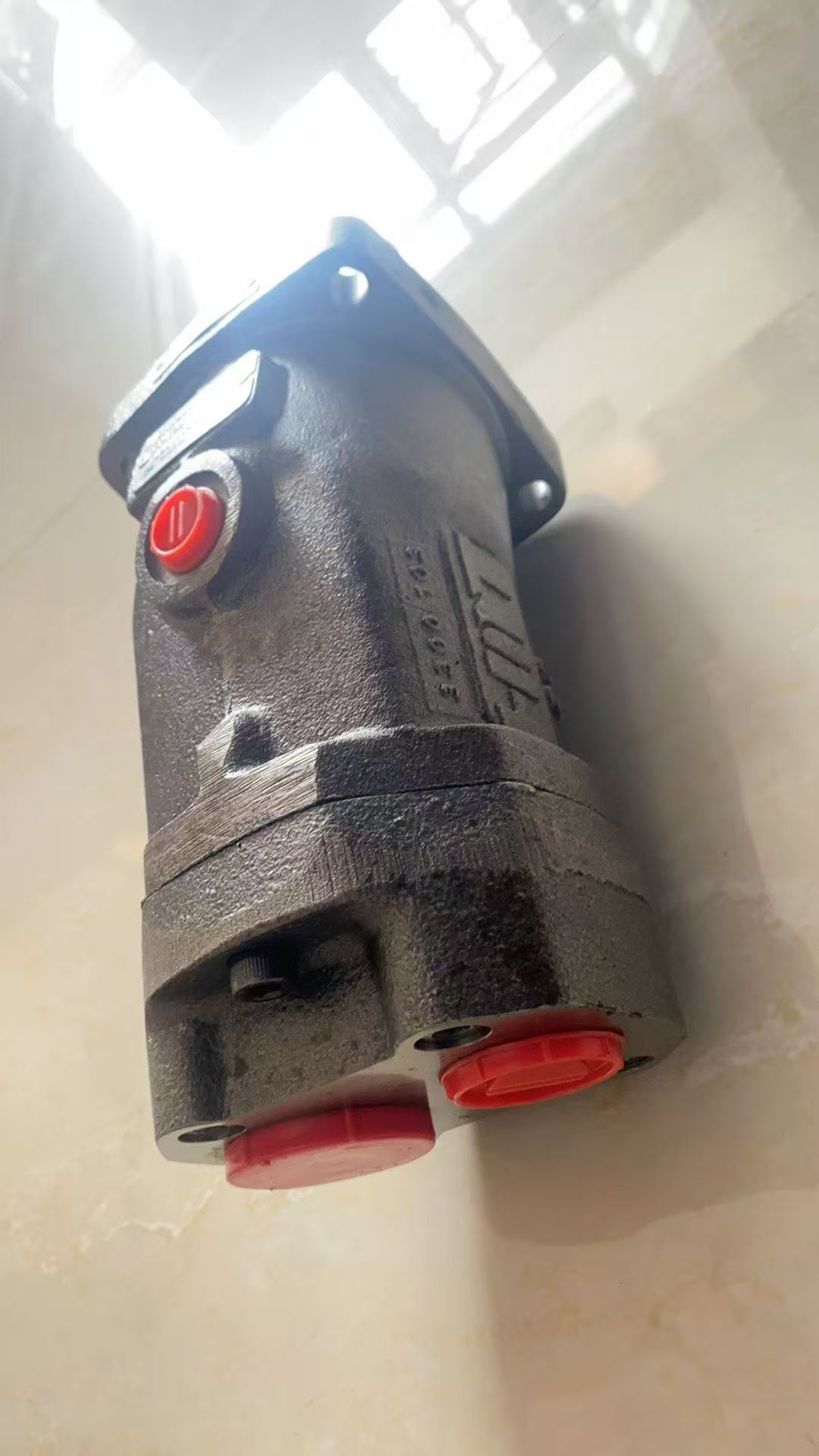

SAMHyDRAULIK pump H1C P 020 ME CBM FP1 SX
5 month ago
Product details
I. Product Overview
• Brand: SAMHYDRAULIK (Italian hydraulic component manufacturer specializing in high-performance hydraulic systems)
• Model: H1C P 020 ME CBM FP1SX
• Type: Axial piston pump (fixed displacement)
• Applications: Hydraulic systems in construction machinery, metallurgy, mining, energy, tunneling equipment, and other industrial sectors.
------
II. Key Specifications
1. Displacement: 20 cc/rev (20 cubic centimeters per revolution)
2. Rated Pressure: 350 bar (continuous operating pressure up to 315 bar)
3. Rated Speed: 300–4,000 rpm (suitable for high-speed operations)
4. Rotation Direction: Bi-directional (supports forward and reverse rotation)
5. Structural Features:
• Axial piston design with reciprocating pistons for oil suction and discharge.
• Fixed displacement configuration (flow proportional to rotational speed).
------
III. Core Characteristics
1. High-Pressure Performance:
• Maximum pressure of 350 bar meets demanding hydraulic system requirements.
• Continuous operating pressure of 315 bar ensures long-term reliability.
2. High-Speed Adaptability:
• Wide speed range (300–4,000 rpm) for compatibility with high-speed hydraulic systems.
3. Bi-Directional Functionality:
• Supports reverse rotation, ideal for applications requiring bidirectional motion (e.g., rotary machinery).
4. Compact Design:
• Axial piston layout minimizes size while maximizing power density.
5. Durability:
• Constructed with high-strength materials (e.g., cast iron pump body, alloy steel pistons) for wear and corrosion resistance.
• Precision machining reduces internal leakage and enhances efficiency.
------
IV. Typical Applications
1. Construction Machinery:
• Hydraulic systems in excavators, loaders, and cranes (e.g., swing motors, travel drives).
2. Metallurgical Industry:
• Hydraulic control for continuous casting machines and rolling mills.
3. Mining Equipment:
• Drives for tunneling machines and crushers.
4. Energy Sector:
• Yaw and pitch systems in wind turbines; hydraulic systems for oil drilling rigs.
5. Tunneling Machinery:
• Hydraulic propulsion systems for shield machines and roadheaders.
------
V. Selection and Compatibility Guidelines
1. System Matching:
• Select pump displacement and speed based on required flow and pressure.
• Example: For a system requiring 40 L/min, set pump speed to 2,000 rpm (20 cc/rev × 2,000 rpm ÷ 1,000 = 40 L/min).
2. Mounting and Port Configuration:
• Verify compatibility of mounting flange (e.g., CBM, SAG) and port orientation (FP1SX denotes specific port configuration) with your system.
3. Maintenance Recommendations:
• Replace hydraulic oil every 1,000–3,000 operating hours or 6 months (whichever comes first).
• Monitor oil cleanliness to prevent pump wear from contamination.
------
VI. Alternative Models
If the H1C P 020 ME CBM FP1SX is unavailable, consider these alternatives (confirm parameter compatibility first):
• H1CP 020 SAG FP1SX(different mounting flange or port configuration)
• H1CM 020 series(similar displacement, but may be a motor model—verify functionality)
------
VII. Precautions
1. Avoid Overpressure: Prolonged operation above rated pressure reduces pump lifespan.
2. Prevent Dry Running: Ensure the pump is primed with hydraulic oil before startup to avoid piston wear.
3. Temperature Control: Hydraulic oil temperatures exceeding 90°C (194°F) degrade pump efficiency—install a cooling system if necessary.
