OTDR Fiber Optic Tester 2
4 month ago
OTDR Fiber Optic Tester SM 1310/1550nm 24dB/22dB, Multi-Function Tester OPM/OLS/RJ45 Test/Event Map/VFL Test Rang 10m-60Km Compatible with SC FC ST APC Adapters for Fiber Optic Testing

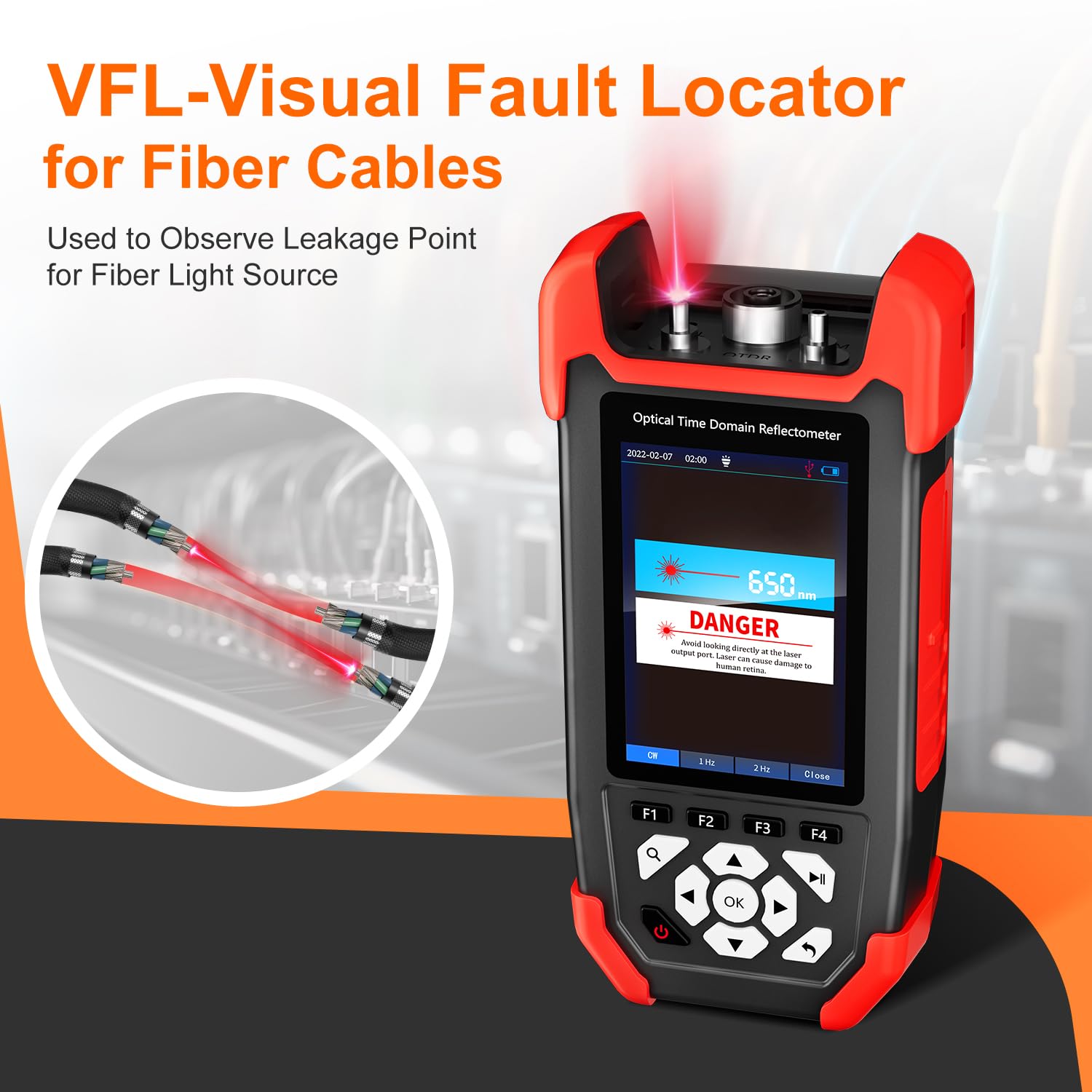

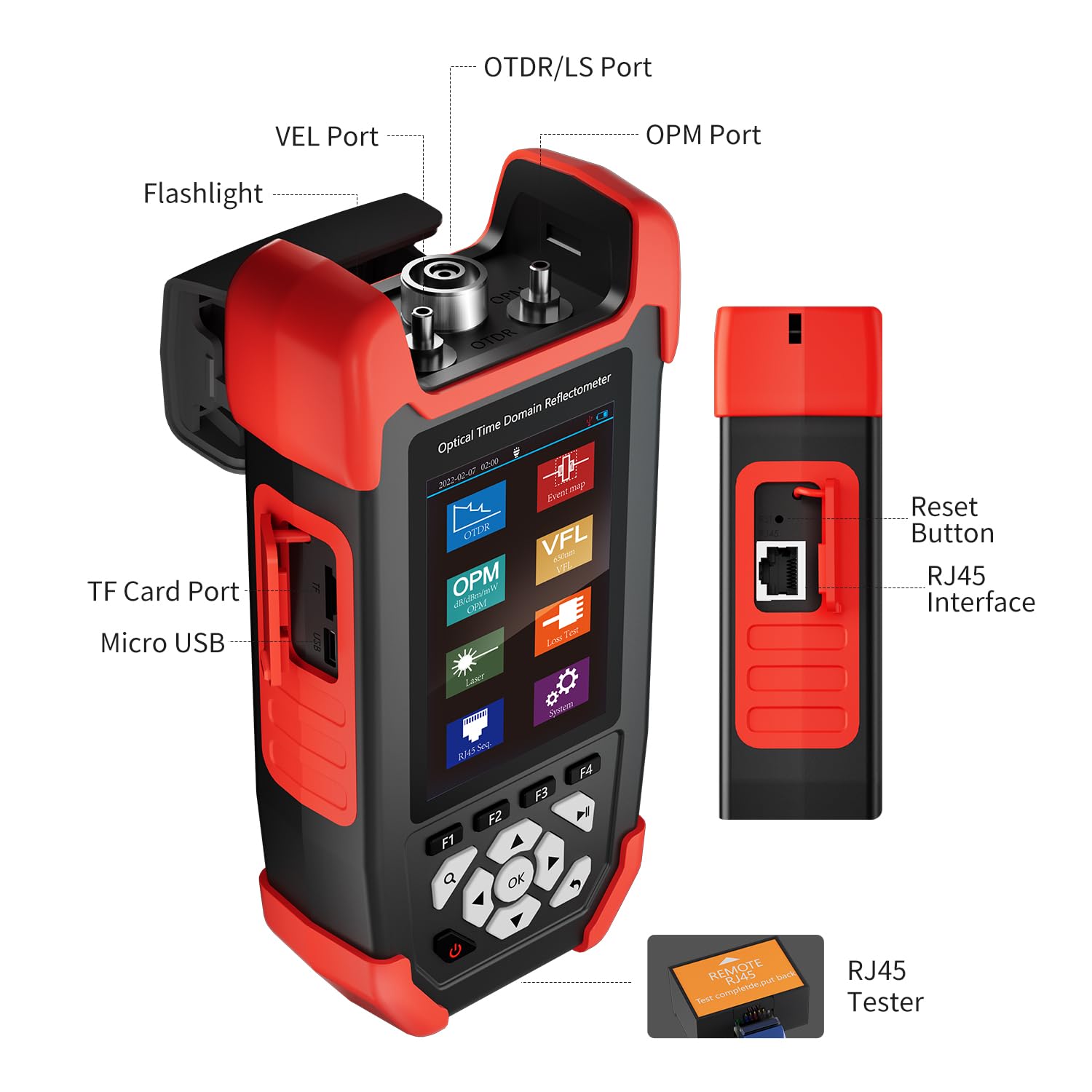

- Fiber Optic Tester: The 8-in-1 fiber optic tester is built in OTDR, OPM, Visual Fault Locator, Optical Light Source, Event Map (IOLM), RJ45 Sequence Test, Loss Tester and Smart Systerm Set. It is can quickly and accurately detect the location and type of fiber optic cable fault points.
- OTDR Tester: Note: don't use this function with lamp. Test Wavelength 1310/1550nm,Test Range 10m~60km. Dynamic Range 24dB/22dB (Note: Can't test spliter) Connector FC/APC (Interchangeable SC、ST) or connector FC/PC (Interchangeable SC、ST). This OTDR supports real time measuring function,can store it as SOR format file. Report include event information, link length, link loss, average loss. This OTDR meets the growing demands of modern fiber optic systems

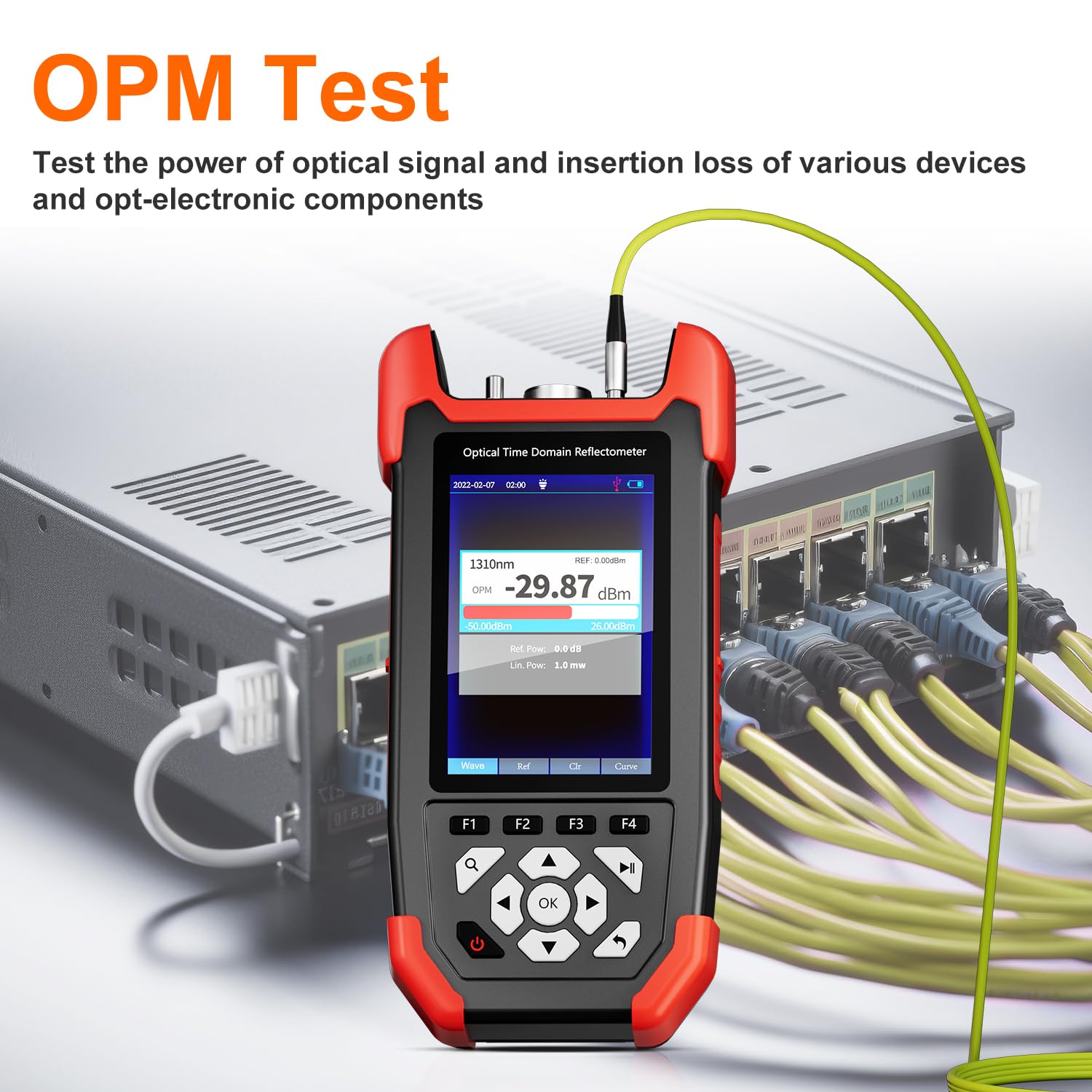

- Optical Power Meter: FC/APC (Interchangeable SC、ST) or FC/PC (Interchangeable SC、ST) and other interfaces are universal. Support the test of different wavelengths of the red light source (650nm±20nm) and optical power/light source (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm); Optical fiber fault detection, optical fiber breakpoint location, optical transmitter power measurement (dBm and W), optical fiber line loss test

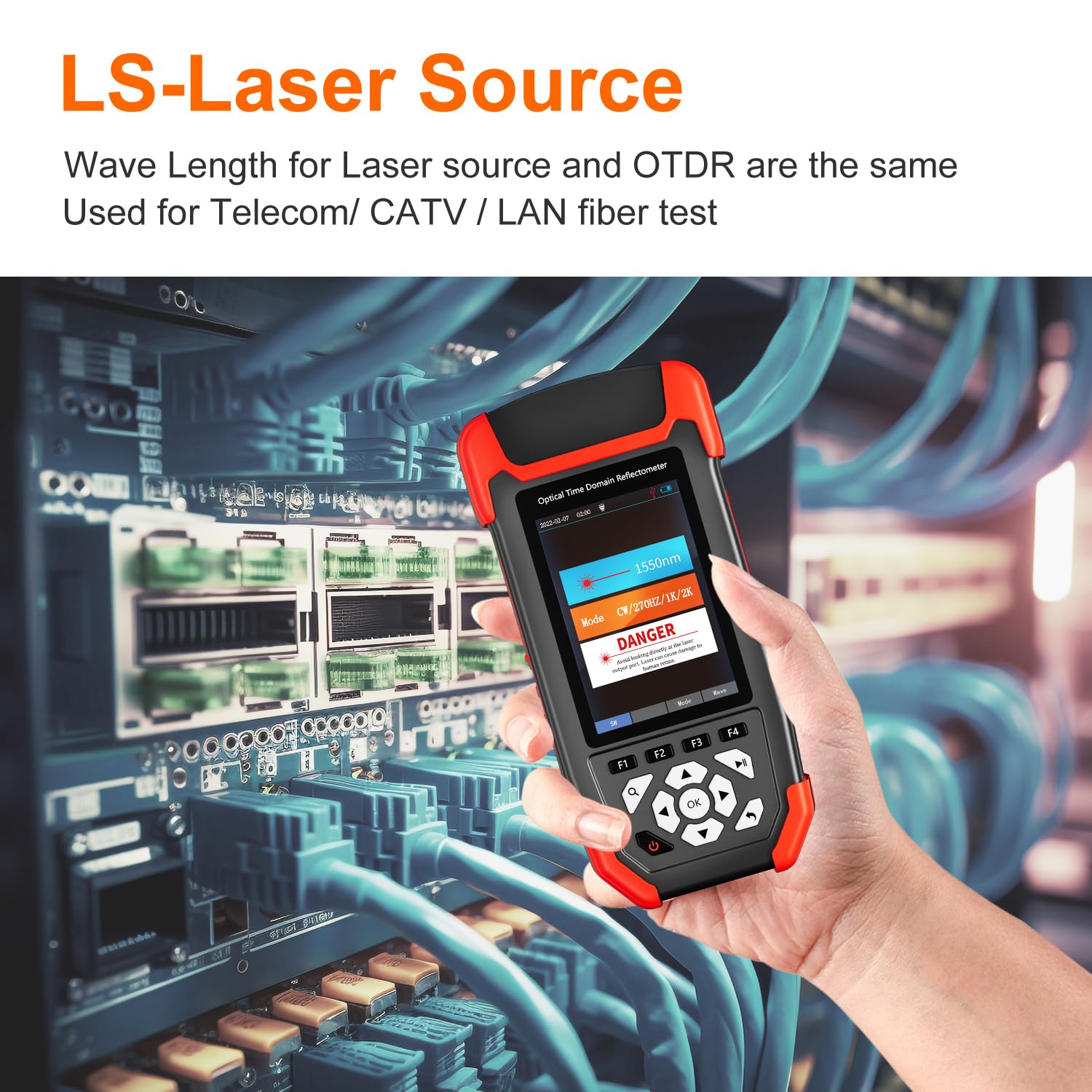

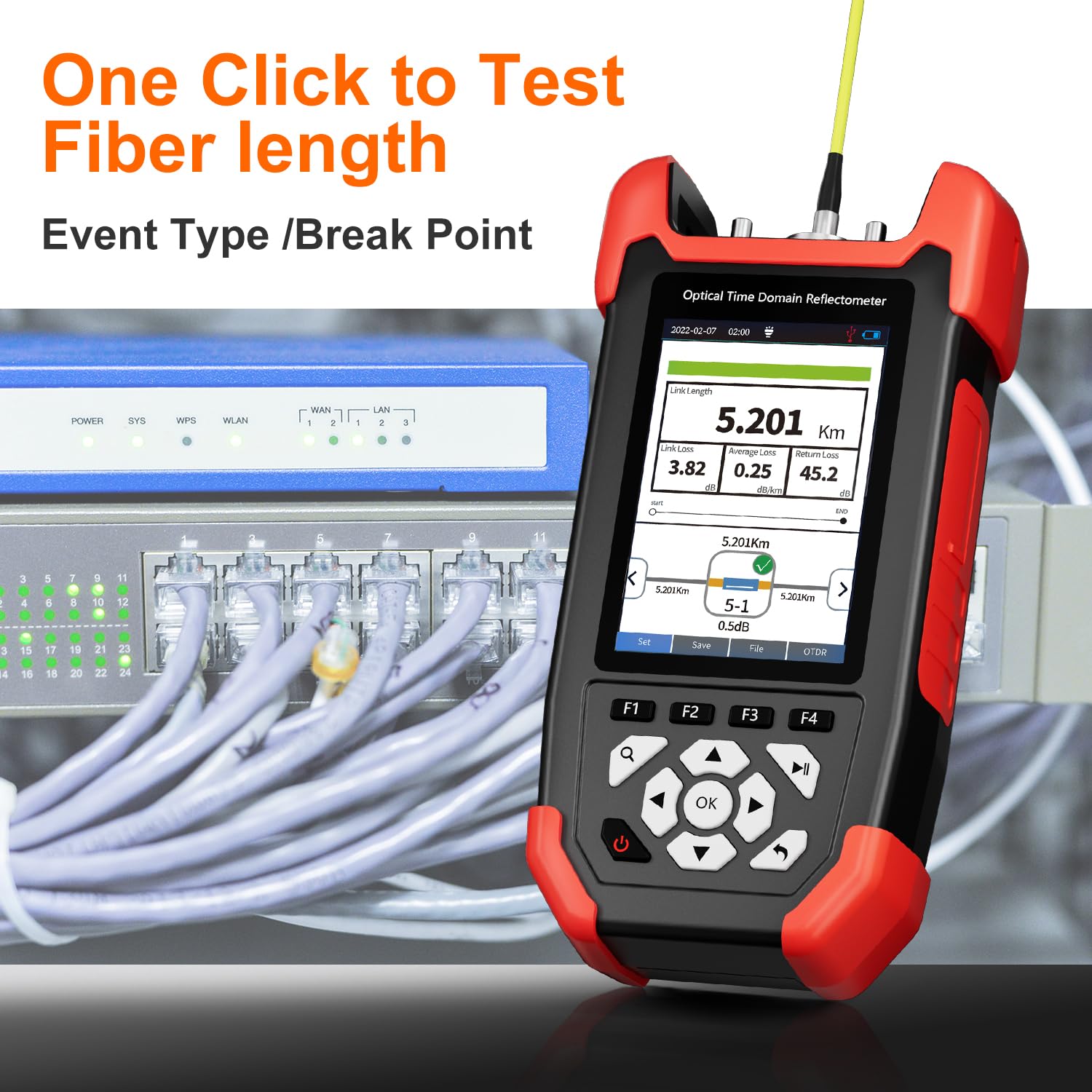

- Event Map & Light Source: The event map function is one-click automatic test, which displays the length of the optical fiber link under test, event point type, breakpoint location and other information in a graphical form. The stable light source is used for telecommunications, CATV, and LAN optical cable parameter testing.
- Cable Length Test: The RJ45 cable tester can quickly measure the length of the cable with a range of 200m. Please connect the remote module for RJ45 line sequence measurement during the test.
