• [WIDE APPLICATION] - for network construction, optical fiber breakpoint identification, optical cable length measurement, and calculating relative optical power loss.

• [SIMPLE AND PRACTICAL DESIGN] - The portable design of this optical fiber tester allows for easy operation, while the 3.97in touchable screen and USB data interface provide convenience and flexibility.

• [EXTENSIVE MEASUREMENT RANGE] - With a wavelength range of 800‑1650nm and support for 6 calibration wavelengths, this optical power meter offers accurate measurements ranging from -50dBm to +26dBm.

• [ AND SUITABLE FOR ALL ENVIRONMENTS] - Made of ABS plastic, the shell of this optical fiber power meter isand ensuring its reliability in any environment.

Spec:

Item Type: OTDR Fiber Optical Tester
Model: AUA28A
Connector Type:
OPM: -50~+26dBm
Material: ABS
Wavelength: 1550nm (20dB)
Product Voltage: 100-240V
Input Voltage: 8.4V 0.5-1A
Dynamic Range: 20dB
Measuring Distance: 0-60km
Fiber Optic Connector Type: 9/125μm
Test Type: FC PC; SC PC)FC , SCOptional)
Unit: Meter, Inch, Mile
Reflection Blind Area: 2 meter
Data Storage: 200 Groups
Display: 3.97in
Resolution: 800 x 480pixels screen (touchable screen)

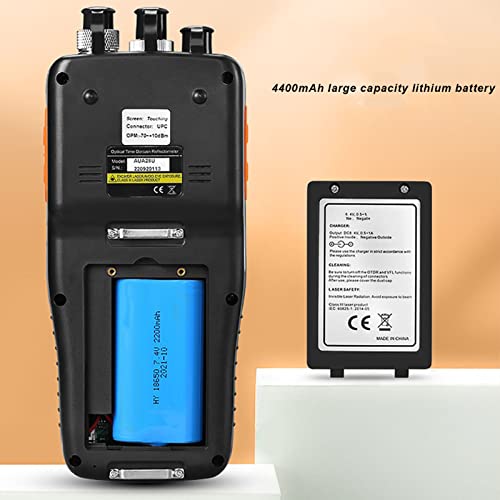

Power Supply: 7.4V 4400mAh lithium ion battery (built in battery) can be used for more than 5000 times
Visual Fault Locator:
Wavelength: 650nm
Output Power: ≥10mW
Mode: CW, 1Hz, 2Hz
Optical Fiber Type: , MM
Optical Power Meter:
Measuring Range: -50~+26dBm
Wavelength Range: 800-1650nm
Calibration Wavelength: 850 1300 1310 1490 1550 1625
Detection Type: For InGaAs
Connector: Replaceable FC PC, SC PC (ST as Optional)
Optical Light Source:
Emitter: FP-LD
Wavelength: 1310/1550nm
Connector: FC PC (SC ST as Optional)
Output Power: ≥-5dBm
Fiber Type:

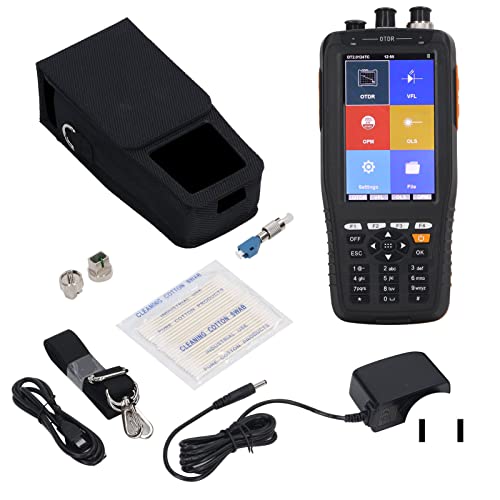

Package List:
1 x Reflectometer
1 x User Manuals
1 x Cotton Swab Bag
1 x CD
1 x Sling
1 x SC Connector
1 x FC Connector
1 x USB Line
1 x Power Cord
1 x Storage Bag
1 x FC-LC Adapter


How To Use:
It can be used directly after startup.
