6x 4 25T garbage truck electric vehicle

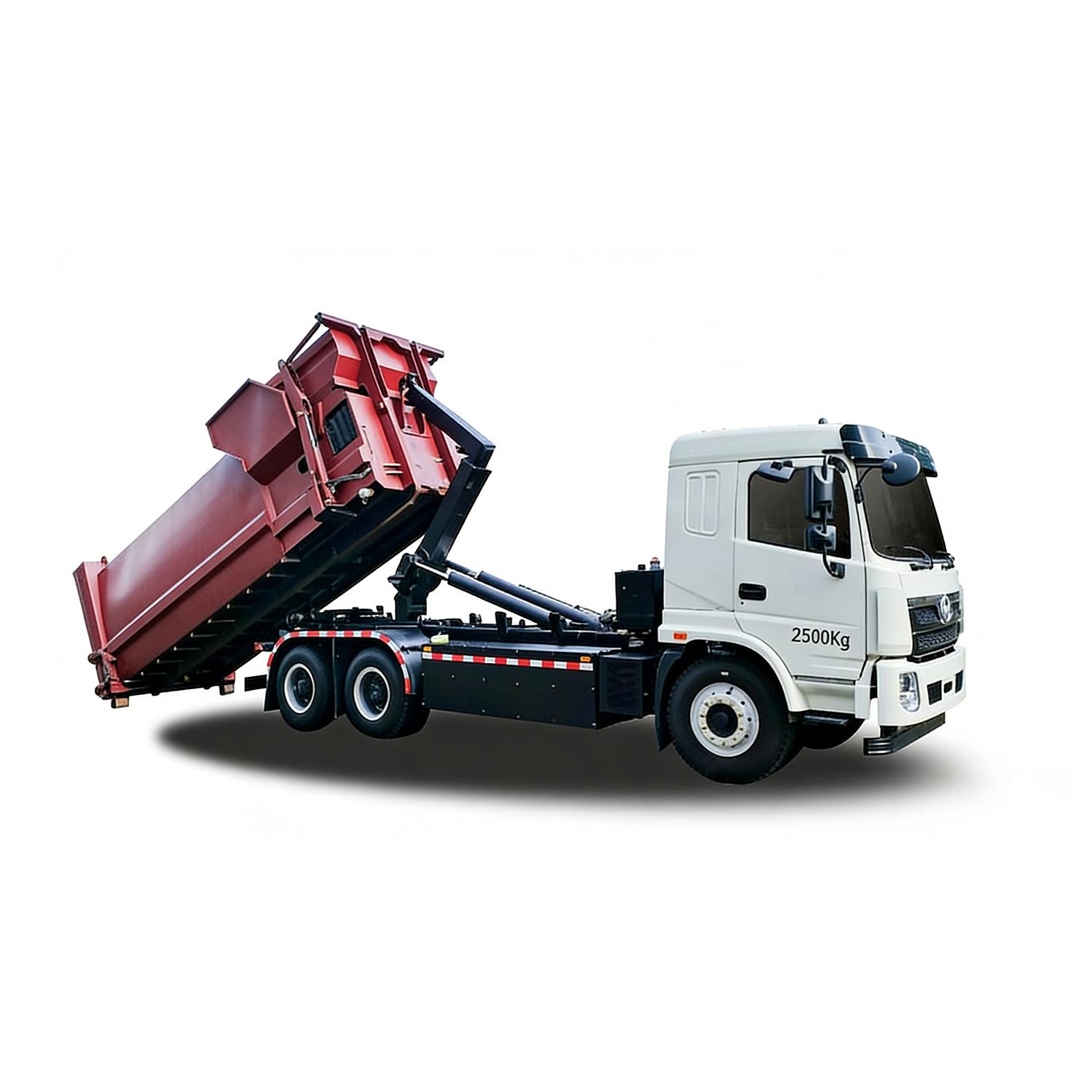

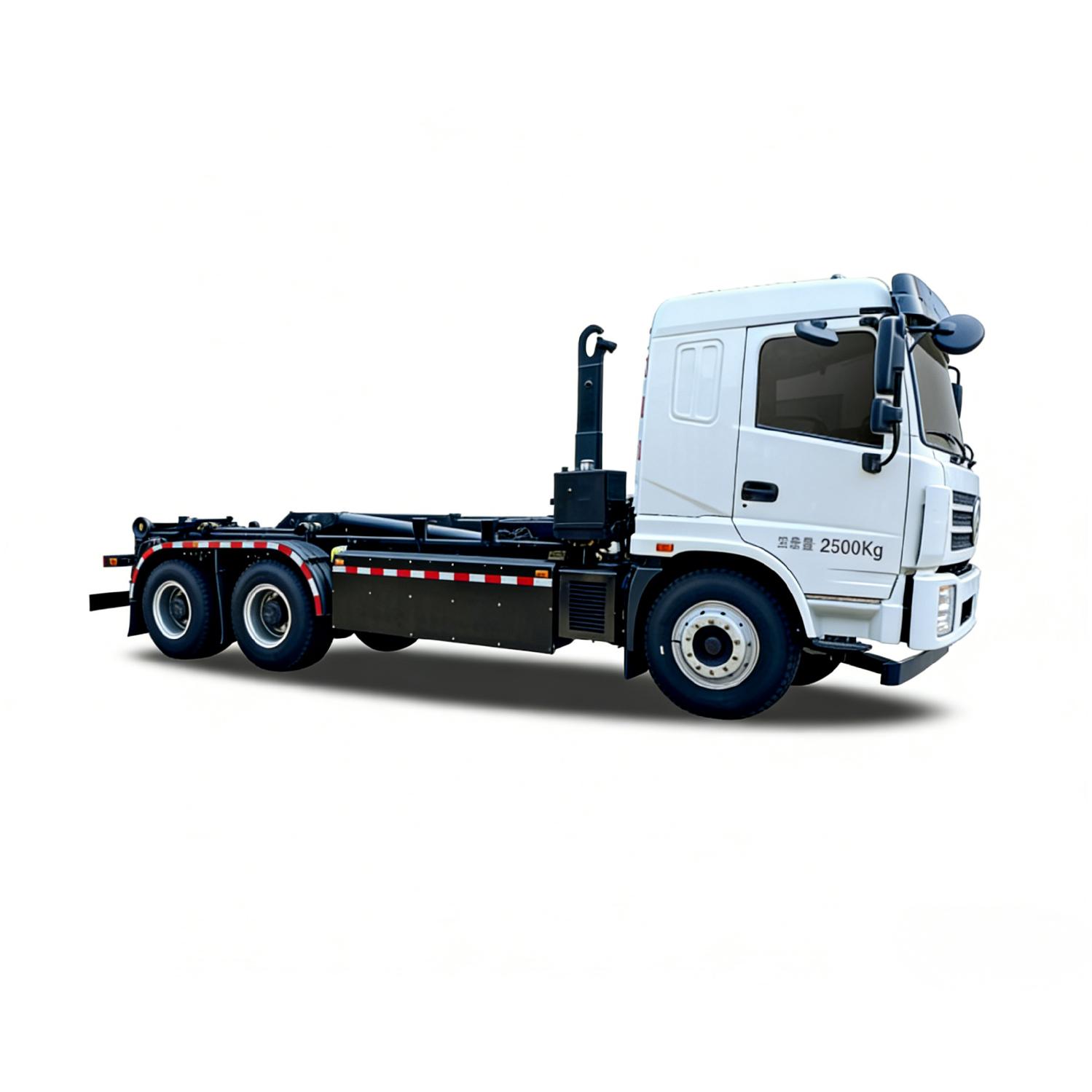

This pure electric 25T detachable garbage truck is equipped with a cargo truck chassis and consists of a hook-lift mechanism, chassis modifications, and an electro-hydraulic system. It can be used for transporting integrated containers and transfer containers. It is primarily used to transport compressed and reduced-volume municipal solid waste to waste treatment plants. The truck has loading, unloading, and discharging functions, and is easy to operate; the driver can complete all operations from inside the vehicle. It can be equipped with multiple containers, making it a convenient, energy-efficient, environmentally friendly, safe, and reliable garbage transfer vehicle.
This pure electric sanitation hooklift truck, relying on CAE/CFD simulation and an industry-first distributed electric drive and disc motor, boasts 18% lower overall energy consumption than the industry average. It features low maintenance costs for its three core electrical components (battery, motor, and electronic control system), strong regenerative braking, and energy savings. The three core electrical components achieve IP68 protection, with electrical and water circuit isolation, and dual-sided strong cooling for the motor, ensuring safety and durability. The vehicle offers strong versatility, operational efficiency, and environmental adaptability. It features CAN bus control, comfortable driving, and convenient operation. The chassis utilizes high-safety lithium iron phosphate batteries, a high-efficiency axial flux motor, and an integrated electric drive axle, delivering leading performance. The superstructure is reliable and safe, and an optional intelligent sanitation system can be installed to achieve intelligent monitoring, cost reduction, and efficiency improvement, comprehensively enhancing the level of sanitation operations.
Main technical parameters:
Product Model: CDL5250ZXXSHBEV Maximum Gross Vehicle Weight (kg): 25000
Curb Weight (kg): 12800, 12550, 12300 Rated Payload (kg): 12070, 12005, 12320, 12255, 12570, 12505
Drive Type: 6X4 Cab Passenger Capacity (persons): 2, 3
Wheelbase (mm): 4350+1350 Length x Width x Height (mm): 8440×2550×3050, 3100, 3150, 3200
Front Overhang/Rear Overhang (mm): 1490/1250 Approach Angle/Departure Angle (°): 22/19
Maximum Gradient (%): ≥30 Minimum Turning Diameter (m): 16.8
Driving Range (km): 330 km
Chassis model: STQ1257L12Y2SBEV Power battery brand/type: CATL/Lithium iron phosphate
Energy consumption (kWh): 279.59 Drive motor model: TZ315XS230
Rated power/peak power kW: 125/230 Monitoring system: Reversing camera
Security alarm system: Voice alarm device
Hook-box action time (s): ≤60 Unloading action time (s): ≤72
Unloading action time (s): ≤110 Maximum unloading angle (°): 45
Lifting capacity of boom hook (t): 20 Hook core height (mm): 1570
Guide rail width (mm): 1070 Hook-wheel distance (mm): 5450/5360
Box locking position (mm): 4920/4860
