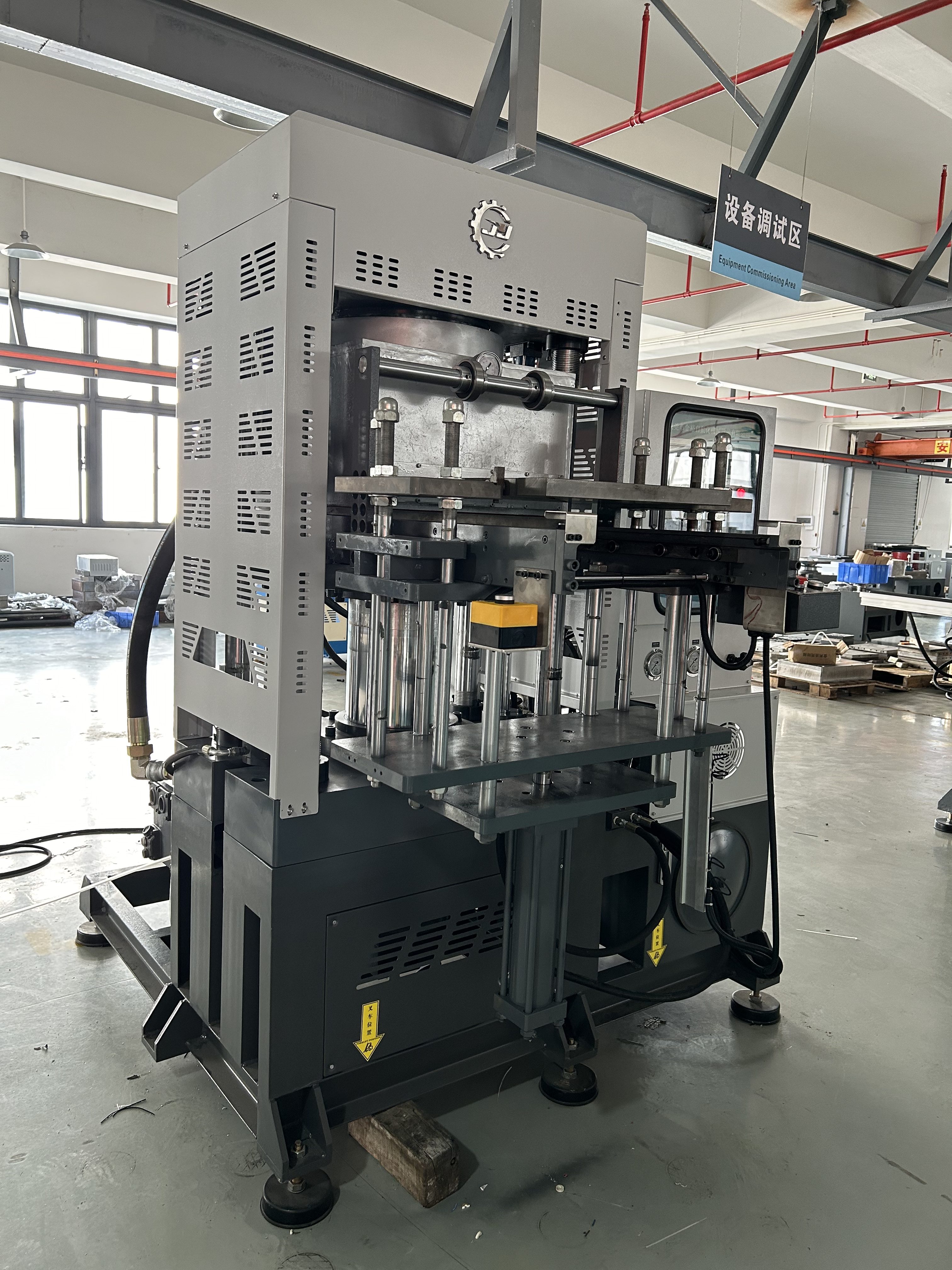

A Customized Hydraulic Model is Currently Under Testing
4 month ago
Product details

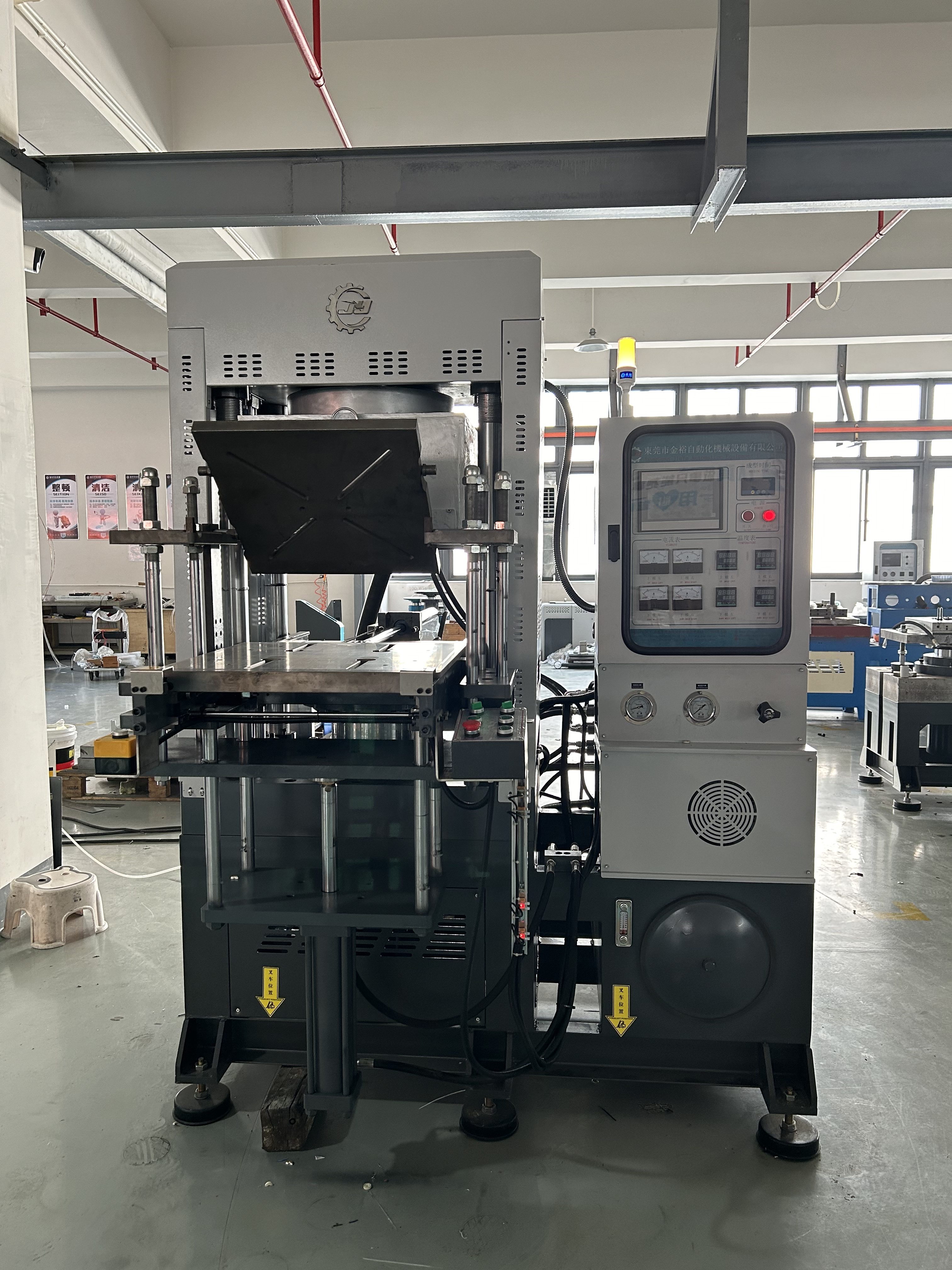

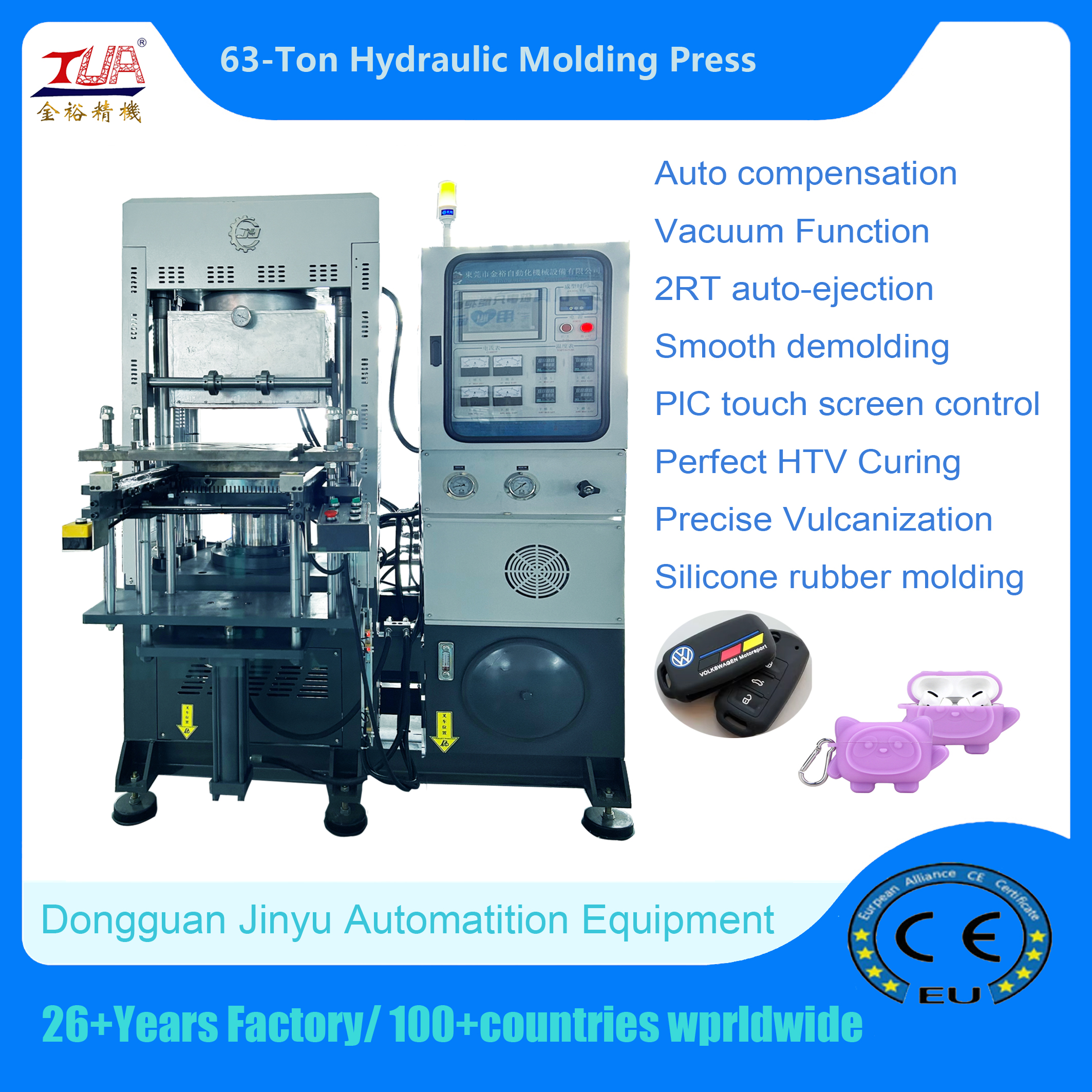

This hydraulic machine with vacuum function is from Jinyu Machinery.

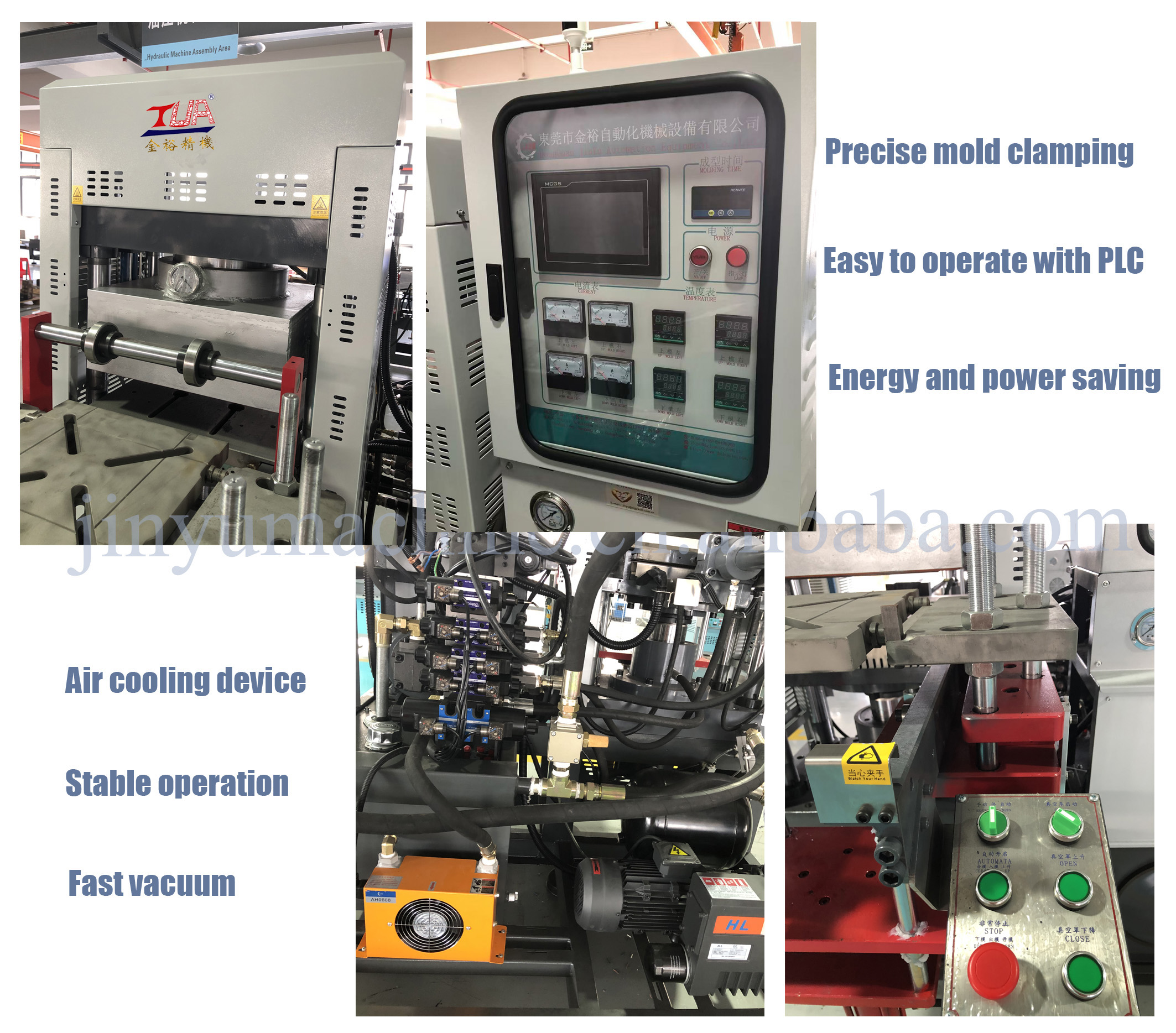

It adopts a three-beam and four-column structure, with a thickened upper beam made of medium carbon steel and hardened columns, ensuring precise mold clamping. The upper and lower heating plates have extremely high flatness.
It is equipped with a high-end PLC intelligent control system and touch screen, which allows direct operation for both setup and production.
The machine features an optimized oil circuit design with high-quality hydraulic components, ensuring stable operation of the entire hydraulic system. It is also equipped with an air cooling device to effectively extend the service life of the hydraulic system.
The heating plates are manufactured with deep-hole processing technology, providing uniform heating and energy saving.
The fast vacuum pumping greatly improves product yield and reduces bubbles and defects.
Jinyu hydraulic press is highly professional for producing transparent silicone pads. It features high precision, stable temperature control, optional vacuum system, uniform pressure, durability and energy saving, enabling stable production of high-transparency, bubble-free, flat silicone pads, ideal for high-quality and mass production.
The Technical Parameter of Jinyu Machinery's hyraulic press with vacuum:
| Name | 30T single head hydraulic machine | 50T single head hydraulic machine | 63T single head hydraulic machine | 100T single head hydraulic machine |
| Model | JY-A02V | JY-A02V | JY-A02V | JY-A02V |
| Voltage | 380V | 380V | 380V | 380V |
| Max working pressure | 30 | 50 | 63 | 100 |
| Wore area | 300*300mm | 350*350mm | 400*400mm | 450*450mm |
| Power | 3.7kw | 5.5kw | 5.5kw | 5.5kw |
| Heating Power | 10.8kw | 10.8kw | 10.8kw | 10.8kw |
| Total Power | 16kw | 17.8kw | 20.3kw | 20.3kw |
| Max temp | 400℃ | 400℃ | 400℃ | 400℃ |
| Main cylinder diameter | 150mm | 180mm | 200mm | 250mm |
| Main cylinder stroke | 160mm | 160mm | 250mm | 250mm |
| Vacuum pump power | 1.5kw | 1.5kw | 4kw | 4kw |
| Cylinder stroke of vacuum hood | 100mm | 100mm | 200mm | 200mm |
| Size | 1250*1530*1550mm | 1350*1650*1650mm | 1560*2020*2060mm | 1570*2150*2060mm |
| Weight | 1200kg | 1500kg | 2500kg | 3500kg |
Key Advantages
1. High precision & flatness
Four-column three-beam structure with thickened columns ensures stable performance under high pressure. Parallelism ≤0.05mm for uniform pressure, no thickness difference or uneven transparency.
2. Accurate temperature control
PID temperature control with fluctuation ≤±2℃, effectively preventing yellowing or uneven curing of transparent silicone.
3. Vacuum system (optional)
Eliminates bubbles and fogging, ensuring ultra-high transparency and significantly improving yield.
4. Stable pressure & high efficiency
Adjustable and stable pressure with precise curing time control. Optional slide mold for fast operation.
5. Reliable & energy-saving
Optimized oil circuit and efficient heating design ensure long service life and lower power consumption.
Jinyu Machinery focuses on the silicone dispensing process and silicone product production, providing customized full-process equipment and supporting technical services, covering the core equipment of the entire production process:
• Raw Material Preparation: Batching machine, automatic batching machine, automatic mixer, automatic vacuum deaerator
• Solid Silicone Processing: Rubber mixing machine, rubber cutting machine
• Molding Core (Key for Output): Dispensing machine, mold heating table, hydraulic press
All series of equipment can be flexibly selected according to needs, adapting to different production demands such as small-batch multi-variety and large-scale mass production. We also provide full-cycle technical support including raw material selection, process debugging and equipment maintenance, accurately empowering the production of silicone products in various fields.
