Semi-Automatic Water Cooling Resistance Flash Butt Welder

Features:

As a professional Butt Welding Machine, it operates on a mature working principle: the control system drives workpieces to move slowly, removing oxide layers and irregular parts on welding surfaces through flash trimming. Afterwards, the equipment heats the workpiece ends, and instantly applies upset force to make the welding ends fuse together.

This Automatic Butt Welding Machine adopts a micro-controller to fully govern the whole workflow including clamping, flash trimming, upsetting, pressure holding and shutdown, delivering exceptional control precision.

Welded workpieces feature superior structural strength and tight sealing. No cold welds or air pores will occur, ensuring reliable performance and neat welding appearance.

Applications:

The versatile Butt Fusion Machine is widely applicable to metal workpieces with uneven ends and burrs. It can process pipes, bars, sheet metal and section steel made of carbon steel, alloy steel, non-ferrous metals and other materials.

Advantages:

Water Cooling Resistance Flash Butt Welder Semi-Automatic Butt Welding Machine

1, Machine body of thick steel sheet, not easy to deformation.
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.

Model		UNS-100	UNS-150	UNS-200	UNS-250	UNS-400	UNS-600	UNS-800	UNS-1000	UNS-1250
Rated power	KVA	100	150	200	250	400	600	800	1000	1250
Min welding area	mm²	12.5	28	28	200	400	400	400	600	600
Max welding area	mm²	200	314	600	700	1400	2200	3200	4000	5500
Jaw distance	mm	55	90	90	200	360	360	500	500	500
Adjustable size of Jaw	mm	30	50	50	150	150	160	200	200	200
Welding movement speed	mm/s	5-30	5-30	5-30	5-30	5-30	5-30	5-30	5-30	5-30
Rated clamping force	KN	6.1	8	8	300	400	600	600	800	900
Rated upsetting force	KN	2.5	3	3	150	200	300	300	400	450
Welding transformer gears number		0	0	0	6	6	6	6	6	6
Secondary voltage	v	4-9	4-9	4-9	4-10	4-9	5-11	7.6-14.6	7-15	7-12.6
Cooling water pressure	Mpa	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Cooling water flow	L/min	4	8	12	24	50	60	60	60	60
Oil pump motor	kw	1	1.5	2	4	11	15	22	22	22
Duty cycle	%	50	50	50	60	60	60	60	60	60
Productivity	pc/min	20	20	20	6	6	6	5	5	5
Machine weight	kg	435	1350	1450	5000	9000	9000	15000	16000	18000

Water Cooling Resistance Flash Butt Welder Semi-Automatic Butt Welding Machine

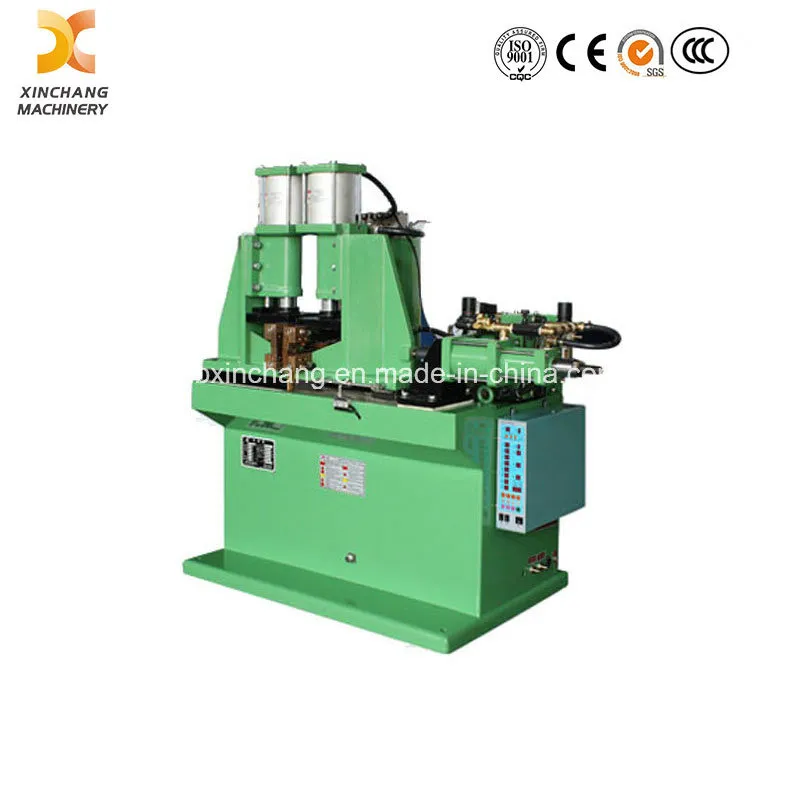

Economic Hydraulic Butt Welders Band Saw Butt Fusion Welding Machine12
