Flash Butt Welding Machine3
4 month ago

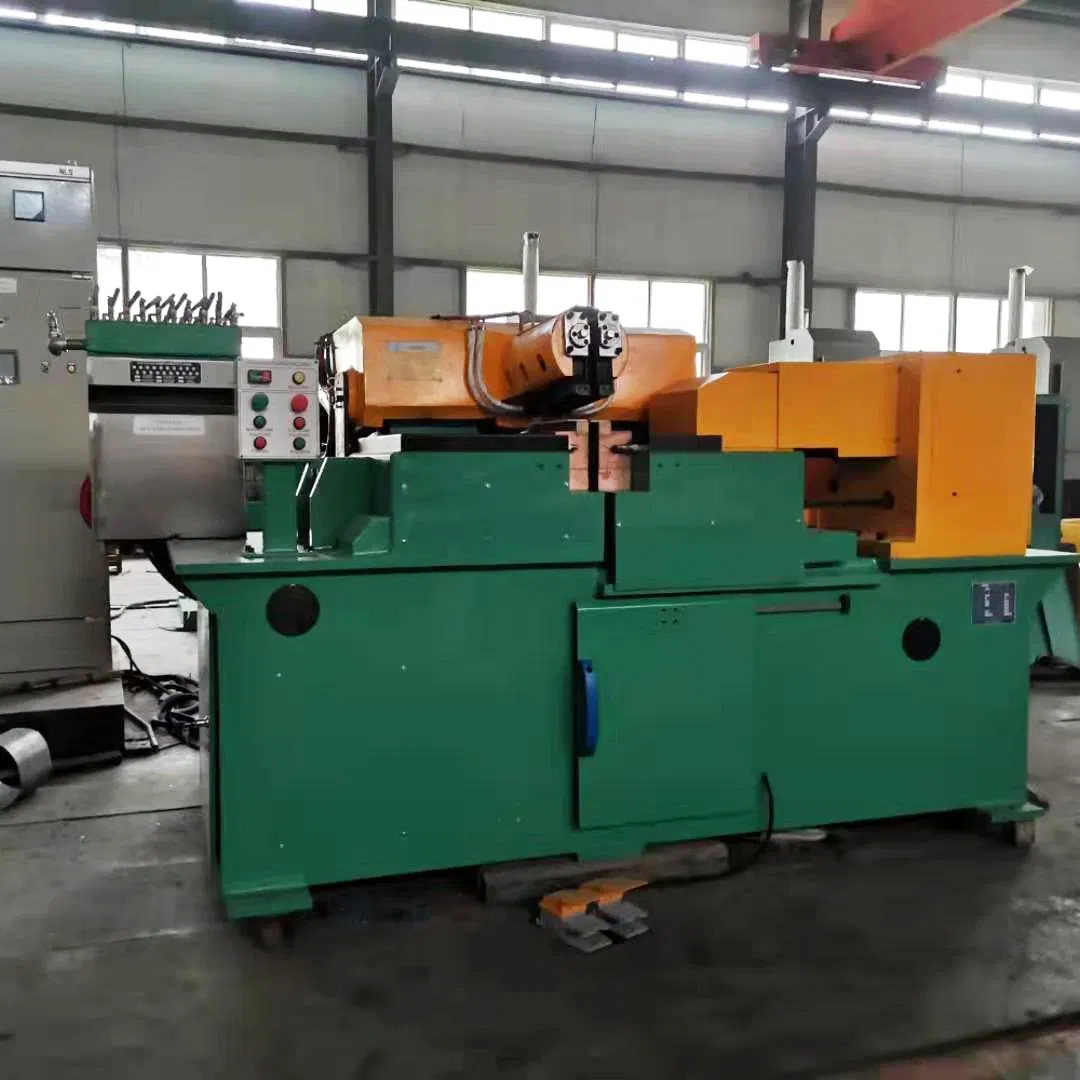

Water-cooled flash butt welding machine
II. List of Components:
1. PLC Mitsubishi Fx1n40MP
2. Touch screen Taiwan PK70
3. Button, Fuji FUN
4. Servo motor and drive Eura 7.5KW
5. Upsetting screw Taiwan made nut Φ80
6. Reducer Domestic RV130-10
7. Piston pump for hydraulic station Domestic 31.5MP
8. Switchboard cabinet With thyristor 2000A
9. Front stainless steel visual tank; ease of water temperature monitoring
10. The hydraulic system includes a hydraulic valve block made by Rexroth (China).
11. The equipment is painted with titanium blue shrink varnish;
12. Linear rail guide HIWIN HGW55HA
13. Electrodes are made of chrome zirconium copper;
14. Accompanied with a set of hydraulic valve seals;
15. Accompanied with jaws: a set of chrome-plated copper electrodes are mounted on the body.

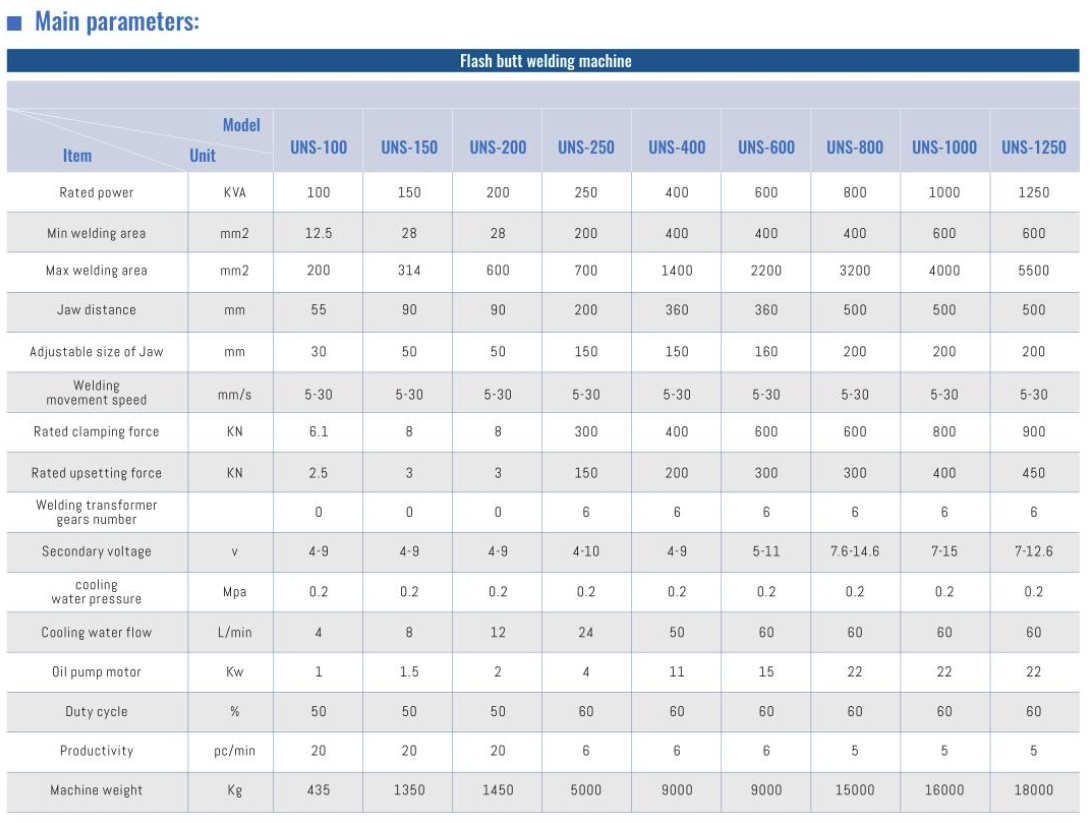

Following machine parameters as a example of UN-400KVA,
III. Requirement:
Purchaser should prepare by itself:
Power transformer: 1. Ordinary transformer >= 630KVA; only for this machine>=400KVA
Two-phase power source for main transformer A.B. 440V. >=180 mm2 copper wire Distance <50 m.
Three-phase four-wire A.B.C.N 440V >=8 mm2 copper wire; (workshop power is enough)
Note: 1. The cracking rate due to welding is less than 0.5%, the rate of micro cracks is less than 10%.
2. In case of an equipment failure that cannot be solved by purchaser, supplier must give a response within 24 hours and seek a feasible solution. All costs and expenses incurred after the warranty period shall be separately discussed and settled by the parties.
