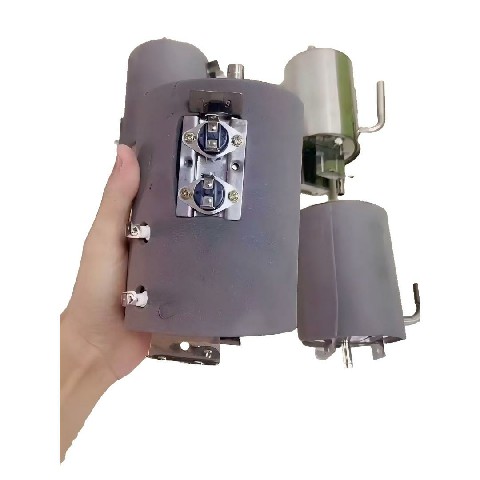

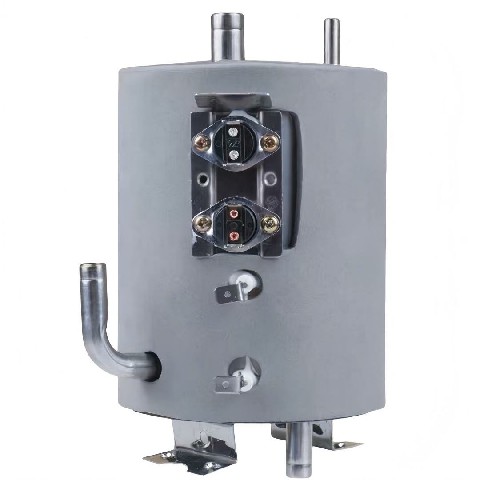

Water purifier heating tank

Hello everyone, the product being presented below is a Water purifier heating tank.

Here is the product information:

1. Product Overview

This Water purifier heating tank (Water purifier heating tank) is a core heating component specially designed by Ningbo Jingjiang Metal Products Co., Ltd. for water purification equipment. Relying on the company's 7,500㎡ production base, a 90-person professional team, and a complete set of advanced processing equipment including laser cutting, CNC bending, and precise welding, it realizes the entire process of independent production from sheet metal forming to finished assembly. It is specifically designed to provide stable, safe, and efficient heating solutions for household and commercial water purifiers. It can be adapted to various direct drinking machines, pipeline machines, and integrated drinking machines, etc.

2. Core Materials and Processes

We strictly select food-grade stainless steel as the main material for the inner tank. We can customize different grades of stainless steel such as AISI 304 and 316L according to customer requirements. It fully complies with the safety standards for contact with drinking water and has excellent anti-corrosion and anti-scaling properties. Long-term use does not cause the release of heavy metals, ensuring the health of drinking water. The production process strictly follows the precision sheet metal processing standards: using an integrated stretching forming process to create the inner tank body, eliminating the risk of weld leakage; the outer side is equipped with a customized insulation layer to effectively reduce heat loss and improve heating efficiency; all pipe interfaces and installation brackets are processed by full welding, undergoing 100% water pressure / air pressure leak detection tests to ensure no water leakage risks during long-term use.

3. Structure and Function Design

1. Core Heating and Temperature Control System

The inner tank is equipped with an efficient heating component, combined with a dual temperature control protection design: equipped with two highly sensitive temperature control switches (KSD temperature controller), achieving dual overheat protection. When the temperature inside the tank abnormally rises, it can automatically cut off the heating power, fundamentally eliminating risks such as dry burning and overheating, and can be customized with different temperature thresholds for temperature control schemes to meet the heating requirements of different models.

2. Pipe Routing and Interface Design

Reserve multiple specifications of inlet and outlet water interfaces, sewage interfaces, and exhaust interfaces. The outer side is made of food-grade stainless steel bent pipes integrated molding. The pipe routing is in line with the internal layout of the water purifier, making installation convenient; interface dimensions can be customized according to the customer's equipment requirements, compatible with different pipe diameters of waterways connections, and compatible with the waterway systems of various mainstream water purifiers.

3. Installation and Adaptation Design

The bottom / side are reserved standardized installation brackets. According to the customer's equipment structure, customize installation holes and fixation methods to adapt to different internal spaces of the models; the inner tank adopts a compact cylindrical structure, small in size, not occupying too much internal space of the equipment, and the insulation layer design can adapt to the usage requirements of different environmental temperatures.

4. Product Advantages

1. Customized Service: As a professional stainless steel metal product customization enterprise, we can provide 1V1 customized production according to the customer's water purifier model, power, capacity, installation size, etc., from inner tank capacity, pipe routing to temperature control configuration, fully meeting the differentiated needs of different customers.

2. Safety Compliance: All materials comply with the national standards for food contact stainless steel, passing strict hygiene tests, and can be directly used for water heating; dual temperature control protection, fully sealed welding structure, from material to structure, comprehensively guarantee the safety of use.

3. Durable: Stainless steel inner tank is resistant to corrosion and scaling, with a longer service life than ordinary plastic inner tanks; the insulation layer design reduces heat loss, lowers equipment energy consumption, and simultaneously extends the service life of the heating component.

4. Production Assurance: The company has a complete stainless steel processing industrial chain, from raw material procurement to finished product delivery throughout the process is controllable, capable of handling large-scale orders, with a stable delivery cycle, and providing complete after-sales technical support to ensure the stability of the customer's supply chain. V. Application Scenarios

This heating inner tank is widely applicable to various water purification heating devices, such as household drinking water integrated machines, pipeline machines, direct drinking machines, commercial office direct drinking equipment, tea shop water purification heating equipment, RV/carry-on vehicle water purification heating systems, etc. Corresponding specifications of products can be customized according to the power and capacity requirements of different usage scenarios.
