Professional Multi Head Spot Welding Machine for Wire Mesh

Features

As a Multi-Head Wire Mesh Welder, this machine adopts a multi-head structure to complete multi-spot welding in a single operation efficiently.

Control system: Microcomputer control, can store 15 sets welding schedule which can be adjust independently, very easy to achieve one or more electrode welding parameters independently adjusted so as to achieve welding requirements for different sizes, different shapes products.

Users can set by himself action sequence, number and welding schedule of cylinder, to achieve the welding requirements on different products.

Large screen display intuitive and clear.

Data set and adjusted by touch switch, easy and fast.

Machine body of thick steel sheet, not easy to deformation, good rigidity.

Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core not aluminum, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.

Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.

Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.

Our machining equipment is more advance, fine workmanship, so welding machine's precision is higher.

Lower loose weld rate, less welding dregs.

It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.

Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.

Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.

Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling. It come true the water distribution by flowmeter. Each flowmeter can be adjusted individually to make machine working normal, without damages

Tailored for related fabrication scenarios, this wire mesh welding machine delivers reliable and consistent welding results. Widely applicable for wire mesh, storage rack, protecting fence and more, the Wire Mesh Spot Welding Machine stands out for its stable performance and outstanding overall quality.

Model Item		DNW3-2x100-C	DNW3-2x150-C	DNW3-2x200-C
Rated capacity	KVA	2x100	2x150	2x200
Rated primary vtg.	V	380	380	380
Rated frequency	HZ	50	50	50
Max short circuit current	KA	30	36	42
Duty cycle	%	20	20	20
Max forging pressure	N	5315	5315	5315
Upper electrode stroke	mm	60	60	60
Lower electrode stroke	mm	40	40	40
Cooling water flux	L/min	6	6	6
Width of upper electrode	mm	90	90	90
Max welding width (C) " C" is stand for " Max welding width"	mm	800-4000	800-4000	800-4000

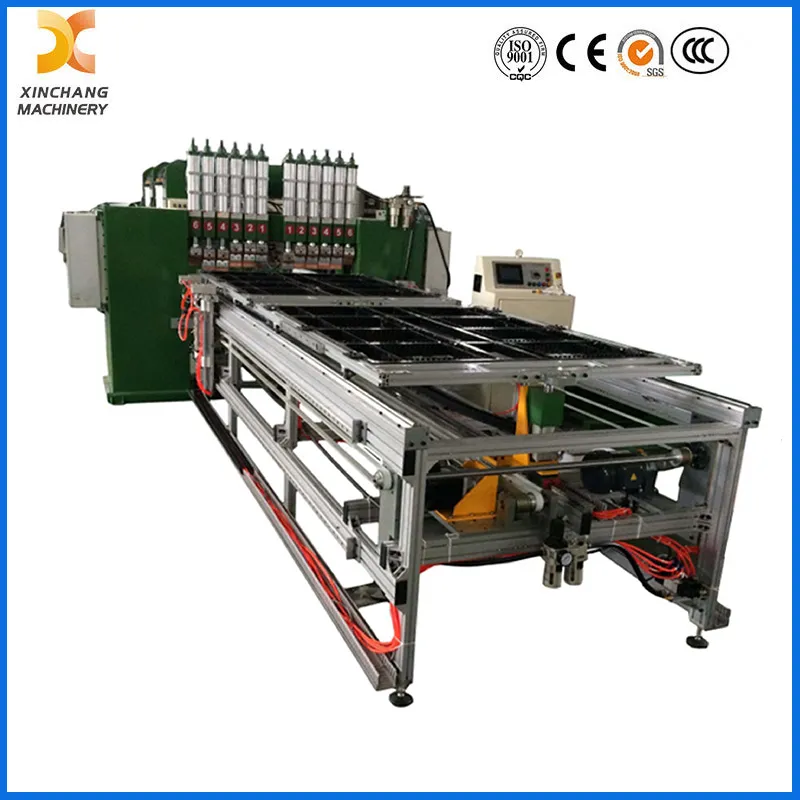

Steel Grating Mesh Welder Equipment Automatic Multi Head Spot Welding Machine9

Professional Multi Head Spot Welding Machine for Wire Mesh Welded Mesh Machine
