Capacitor Discharge Spot Welder

4 month ago

7 0 

2 year

Product details

380V Capacitor Discharge Spot Welding Machine for Metal

Features

1.This Capacitor Discharge Welder adopts boosting charge and discharge capacitor, output current is more precision, lower strike to Power Grid, energy conservation, almost without deformation and discoloration, no grinding necessary.

2.Charging voltage with feedback control, auto-compensate voltage ensuring voltage stability, concordance of weld points is good, weld quality is high.

3.Machine body of thick steel sheet, not easy to deformation.

4.Welding current is DC, little reactance, effective power is more.

5.With the functions that max protection of charging voltage and alarm of charging circuit loop break.

6.LED display, easy to operate and maintenance.

7.Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable, making this Capacitor Discharge Welding Machine stand out in continuous industrial welding scenarios.

8.Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.

9.Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.

10.Quality is stable, failure rate is low, therefore machine life is longer.

ITEM MODEL	Input capacity	Input voltage	Capacitance	energy	Duty cycle	Max pressure	Operational stroke	Electrode stroke	Cooling water flux	Welding capacity (aluminium)
ITEM MODEL	KVA	V	UF	J	%	N	MM	MM	L/Min	MM
DTR-3000	5	380	30000	3000	20	1900	30	70	2	1.2+1.2
DTR-4500	5	380	45000	4500	20	1900	30	70	2	1.5+1.5
DTR-6000	8	380	60000	6000	20	4800	30	70	3	2.0+2.0
DTR-8000	8	380	80000	8000	20	7800	30	70	3	2.2+2.2
DTR-10000	10	380	100000	10000	20	7800	30	70	3	2.4+2.4
DTR-15000	15	380	150000	15000	20	7800	30	70	3	2.6+2.6
DTR-20000	20	380	200000	20000	20	12000	30	70	3	3.0+3.0
DTR-30000	30	380	300000	30000	20	12000	30	70	3	3.0+3.0

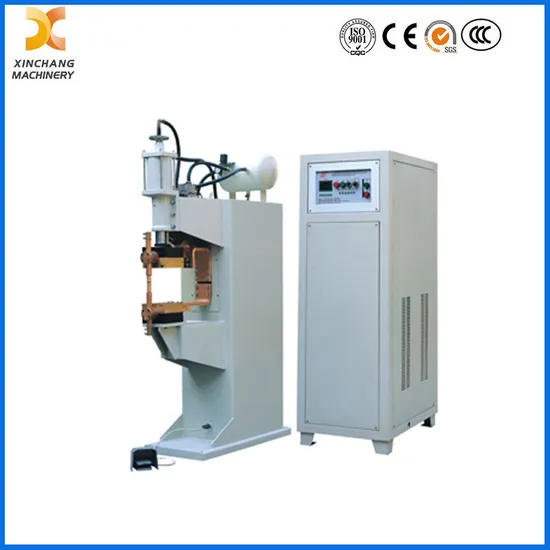

High Efficiency Capacitor Store Energy Discharge Spot Projection Welding Equipment4
