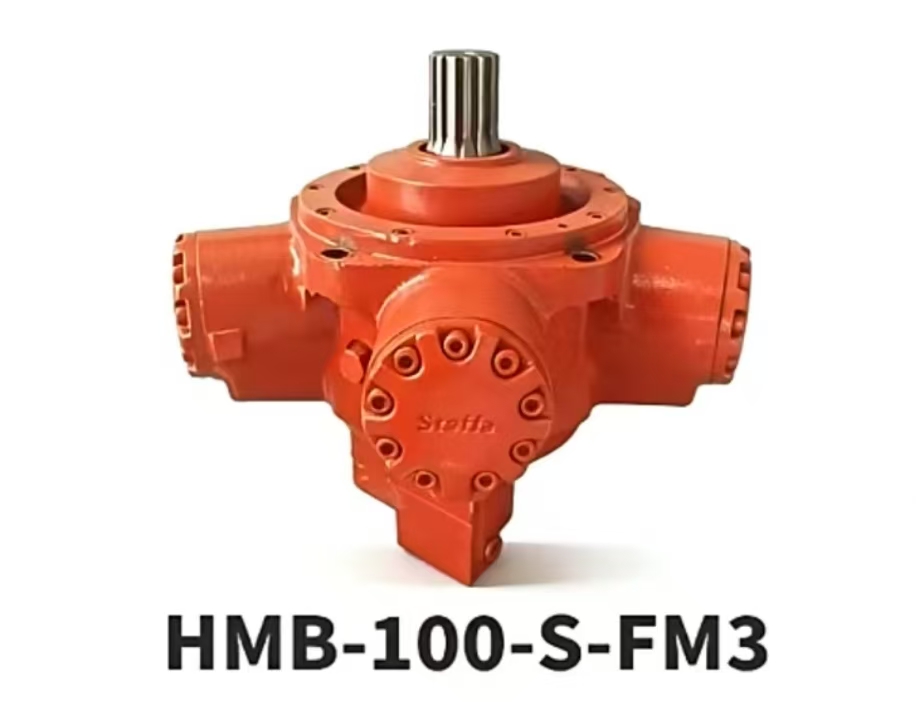

HMB-100-S-FM3 Hydraulic Five-Star Motor

TheHMB-100-S-FM3is a radial piston-type low-speed, high-torque hydraulic motor from the UK-basedStaffabrand (now part of Danfoss Power Solutions). Below is a detailed overview of its features, technical specifications, applications, and alternative options:

------

I. Key Features

1. Low-Speed, High-Torque Performance

• Radial piston design enables direct mechanical energy output via hydraulic-driven pistons, ideal for heavy-duty startups and stable low-speed operation.

• Example: The HMB100 model delivers a maximum torque of7,650 Nmat 250 bar working pressure, meeting high-load demands.

2. Optimized Structure

• Incorporates static force balancing and hydrostatic bearing technology to reduce friction and extend service life.

• Critical components (e.g., bearings, seals) use German-imported brands for enhanced reliability and durability.

3. Advanced Manufacturing

• Thermal spraying enhances surface hardness, while 4-axis CNC machining ensures precision.

• Modular design simplifies maintenance and part replacement.

4. Model Variants

• HMB Series: Single-displacement motors (e.g., HMB010 to HMB700 with displacements ranging from 442 cm³/rev to 5,210 cm³/rev).

• HMC Series: Dual-displacement motors for adaptable performance across varying conditions.

------

II. Technical Specifications (HMB100 Example)

【表格】

Parameter Value

Displacement 1,639 cm³/rev

Working Pressure 250 bar

Maximum Torque 7,650 Nm

Weight 215 kg

Speed Range Low-speed (varies by application)

Suitable Medium Hydraulic oil

------

III. Applications

1. Construction Machinery

• Rotary and travel drives for excavators, cranes, and road rollers.

2. Mining Equipment

• Hydraulic transmission systems for mining machinery, crushers, and conveyors.

3. Marine Equipment

• Power sources for anchor winches, capstans, and deck machinery.

4. Petrochemical Industry

• Low-speed, high-torque requirements in drilling rigs and oil extraction systems.

5. Industrial Machinery

• Hydraulic drives for metallurgical equipment, injection molding machines, and large presses.
