Product details
I. Product Overview

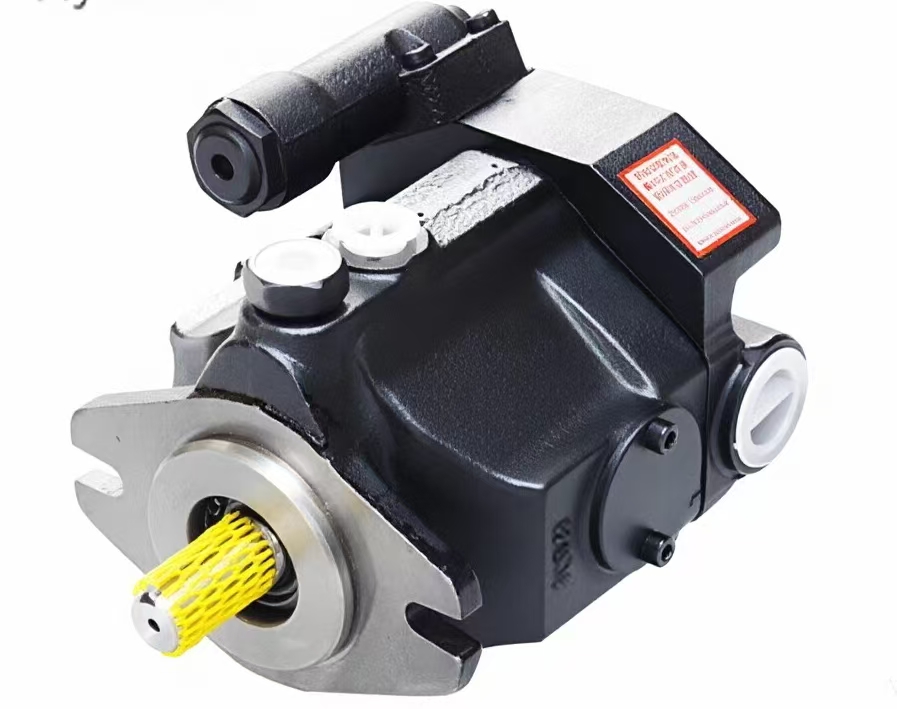

The Daikin V8A1RX-20 is a swashplate-type axial piston pump designed with a closed-circuit configuration, optimized for medium-to-high-pressure hydraulic systems. It achieves continuous fluid delivery through the reciprocating motion of multiple precision pistons, offering adjustable flow rates and rapid response characteristics. This makes it ideal for applications demanding high dynamic performance and energy efficiency.
------
II. Technical Features
1. Low-Noise Operation:
Maintains low noise levels across the entire pressure range, improving working environments.
2. High Efficiency:
Minimizes power loss and reduces fluid temperature rise, enabling smaller tank sizes and enhancing energy utilization.
3. High Reliability:
Features high sensitivity, stability, and long service life, increasing host machine reliability while reducing maintenance and component replacement frequency.
4. Multiple Control Modes:
Integrates various control methods to form a system with advantages such as energy savings, compact design, and cost-effectiveness.
5. Compact Design:
Adheres to Daikin’s signature compact design philosophy, delivering high power density within limited space.
------
III. Technical Specifications
1. Displacement:
• 8.0 cm³/rev (some configurations may specify 20 cm³/rev, depending on model variations).
2. Rated Pressure:
• Continuous operating pressure: Up to 280 bar (peak pressure: 350 bar).
• Alternative specification: Maximum operating pressure of 7 MPa (may vary based on application scenarios and configurations).
3. Speed Range:
• 1,500–3,000 rpm (compatible with various prime movers).
• Alternative specification: 1,200–1,600 rpm.
4. Volumetric Efficiency:
• ≥95% (measured per ISO 4409 standard).
5. Noise Level:
• 65 dB (measured under specified conditions).
6. External Dimensions:
• 143.0 × 203 × 125 mm.
7. Weight:
• 8.9 kg.
------
IV. Applications
1. Injection Molding Machines:
Provides stable high-pressure oil for clamping and injection, ensuring consistent molding cycles.
2. Die-Casting Equipment:
Drives injection cylinders for high-speed filling, improving surface finish quality.
3. Hydraulic Excavators:
Serves as the main pump for driving travel and working devices, compatible with load-sensing systems.
4. Concrete Pump Trucks:
Supplies high-pressure power for mixing and conveying systems, adapting to prolonged high-load operations.
5. Aerial Work Platforms:
Enables synchronized lifting of multiple booms, ensuring operational safety and stability.
6. Waste Compaction Vehicles:
Drives compaction mechanisms for efficient handling of high-resistance loads.
7. Wind Turbine Pitch Systems:
Provides reliable hydraulic power backup for pitch actuators.
8. Solar Tracking Mounts:
Powers dual-axis tracking mechanisms for precise angle adjustment.
------
V. Model Breakdown (Example: V8A1RX-20)
• V: Indicates the V series.
• 8: Displacement code (other options include 15, 23, 38, 50, 70, etc.).
• A: Control mode (e.g., A = pressure compensation; C = combination control; D = composite pressure control; SA = power matching control).
• 1: Pressure regulation range (e.g., 1 = 1.5–7 MPa; 2 = 1.5–14 MPa; 3 = 1.5–21 MPa; 4 = 1.5–25 MPa).
• R: Rotation direction (R = clockwise; L = counterclockwise).
• X: Port orientation (X = side ports; no marking = ports on both sides).
• 20: Design number.
