I. Product Features
1. Unique Swashplate Design:
• The V42A4R10X employs a distinctive swashplate angle adjustment mechanism, enabling automatic displacement modulation based on system demands for variable control.
• This design ensures high efficiency and stable performance across diverse operating conditions.
2. Low-Noise Operation:
• The pump maintains low noise levels (typically ≤75 dB) throughout its full pressure range.
• This reduces noise pollution and improves workplace comfort.
3. Multiple Control Modes:
• Supports various control methods, includingPressure Compensation (PC)andLoad-Sensing (LS).
• These modes allow optimized system operation tailored to specific requirements.
4. Energy Efficiency:
• Minimizes power loss, reducing oil temperature rise and energy consumption.
• Enables the use of smaller oil tanks, saving space and cost.
5. Compact & Easy Installation:
• Features a compact design with a small footprint and lightweight construction for simplified installation.
• Its horizontal layout and single-suction impeller design further streamline the setup process.
------
II. Performance Parameters

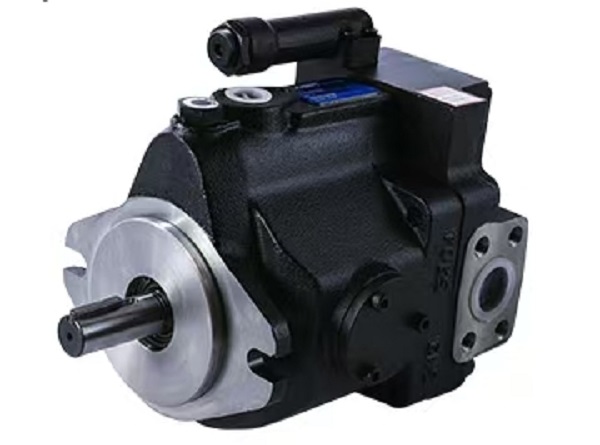

• Model: V42A4R10X
• Nominal Displacement: Typically42 cm³/rev(specific values may vary by batch or application).
• Rated Pressure: Medium-to-high pressure design with a rated pressure of approximately25 MPa(instantaneous pressure may reach higher values, e.g.,280 kgf/cm²).
• Rotation Direction:R10Xindicatesclockwise rotation(viewed from the shaft end).
• Control Method:A4typically representsPressure Compensation (PC)orLoad-Sensing (LS)control.
• Materials: Cast iron pump body with special alloy pistons for wear and corrosion resistance.
• Drive Type: Electric.
• Applications: Suitable for hydraulic systems in machine tools, presses, forging equipment, and plastic injection molding machines.
------
III. Application Fields
The V42A4R10X is widely used in the following industries:
1. Construction Machinery:
• Excavators, cranes, and other equipment requiring adaptive load handling and precise operation.
2. Agricultural Machinery:
• Combine harvesters, tractors, and other vehicles needing variable-speed steering and transmission systems.
3. Industrial Machinery:
• Injection molding machines, presses, and bending machines requiring stable high-pressure oil for precision control.
4. Other Sectors:
• Marine, metallurgy, energy, and other industries with diverse hydraulic system requirements.
------
IV. Advantages & Value
1. High Efficiency & Stability:
• The unique swashplate design and multiple control modes ensure consistent performance under varying loads.
2. Energy-Saving & Environmentally Friendly:
• Reduced power loss and low noise contribute to lower energy consumption and environmental impact.
3. Easy Maintenance:
• Modular construction simplifies upkeep, lowering maintenance costs and downtime.
4. Versatile Applications:
• Meets the needs of a wide range of industrial equipment and hydraulic systems.
