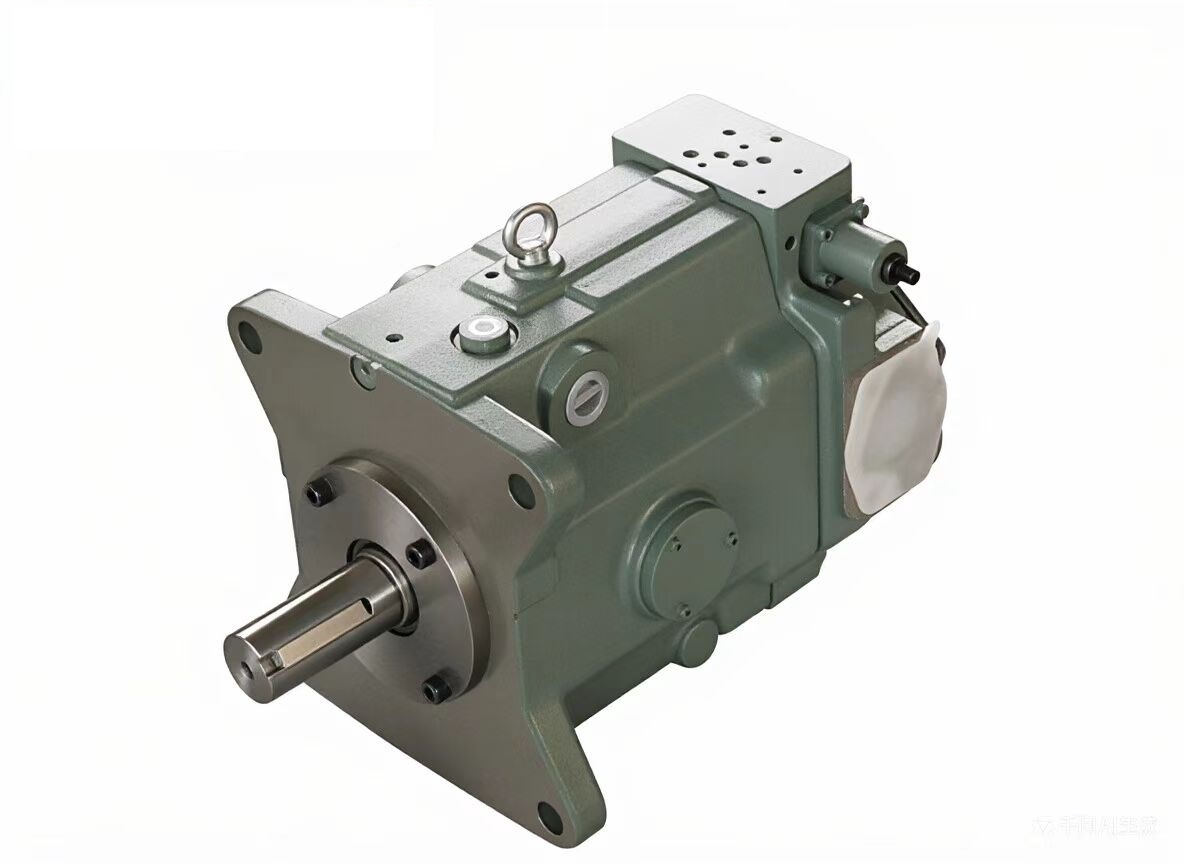

A145-FR01BS-60 Variable Hydraulic Piston Pump
4 month ago
Product details
I. Product Overview
TheA145-FR01BS-60is a high-end variable hydraulic piston pump fromYUKEN, a leading brand in Japan's hydraulic component industry. Belonging to theA-serieswith large displacement, this pump features aswashplate variable mechanismthat enables stepless displacement adjustment by modulating the swashplate angle, meeting dynamic pressure and flow demands in hydraulic systems. With a rated pressure of35 MPa, it is suitable for high-pressure, high-flow industrial applications.
------
II. Key Design Features
1. Swashplate Variable Mechanism
• Adjusts displacement continuously via mechanical or hydraulic regulation of the swashplate angle, offering fast response and high precision.
• Flexible variable control supports modes such asPressure Compensation (PC)andLoad Sensing (LS)to adapt to diverse operating conditions.
2. High-Pressure Design
• Rated pressure:35 MPa(with higher transient peak pressure capability) for heavy-duty and shock-load applications.
• Critical components (e.g., pistons, cylinder blocks, valve plates) are made of high-strength alloy steel with quenched and precision-ground surfaces, ensuring wear resistance and fatigue endurance for tens of thousands of operating hours.
3. High Efficiency & Low Noise
• Volumetric efficiency up to98%(at 16 MPa pressure and 1,800 rpm), with total efficiency exceeding90%, minimizing energy loss and fuel consumption.
• Optimized flow path design reduces hydraulic shock and turbulence, operating at noise levels below60 dB, outperforming average同类 products (similar products).
4. Modular Structure
• Integrates functional modules such as charge pumps, control valves, and filters, simplifying piping connections and reducing leakage risks.
• Supports multiple mounting options (e.g., flange or base mounting) for direct coupling with motors or engines, lowering system complexity.
5. Energy-Saving & Environmentally Friendly
• Load-sensing control automatically adjusts displacement based on system demand, preventing over-supply and saving energy.
• Low heat generation reduces oil temperature rise, allowing smaller tank sizes and compact equipment footprints.
------
III. Key Performance Parameters
【表格】
Parameter A145-FR01BS-60 Specifications
Nominal Displacement 145 cm³/rev (may vary slightly by configuration)
Rated Pressure 35 MPa (maximum pressure up to system design limits)
Peak Pressure 40 MPa (transient allowable value)
Speed Range 600–2000 rpm (recommended: 1200–1800 rpm)
Drive Type Electric or engine-driven (direct or belt-driven)
Control Modes PC, LS, RPC (Remote Pressure Control)
Applicable Fluid Mineral-based hydraulic oil (ISO VG 46/68), temperature range: -20°C to +80°C
Weight ~100 kg (may vary slightly by configuration)
Port Size 60 mm (pump outlet flange size)
------
IV. Application Fields
1. Construction Machinery
• Excavators, cranes, road rollers, etc., driving travel, slewing, or working devices under variable loads.
2. Industrial Machinery
• Injection molding machines, presses, bending machines, etc., providing high-precision flow and pressure control to improve product qualification rates.
3. Metallurgical Equipment
• Blast furnaces, continuous casting machines, etc., operating under high-temperature, high-pressure conditions with reliable performance.
4. Marine & Offshore Engineering
• Steering gears, deck machinery, etc., adapting to harsh marine environments with vibration and corrosion resistance.
5. Energy & Power
• Wind turbine equipment, hydraulic test benches, etc., delivering stable power output.
------
V. Technical Advantages & Value
1. Energy Efficiency
• Variable control technology ensures optimal performance across the full pressure range, reducing comprehensive energy consumption by15%–20%and lowering operational costs.
2. Long Service Life & Low Maintenance
• High-strength materials and precision manufacturing extend component life, with maintenance intervals exceeding5,000 hours, minimizing downtime.
3. Adaptability
• Supports multiple control modes and power sources, enabling flexible integration into new equipment or retrofit projects with reduced system modification costs.
4. Environmental Compliance
• Low-noise and low-heat designs meet international environmental standards, suitable for applications with strict environmental requirements.
------
VI. Market Feedback & Case Studies
• User Testimonial: An injection molding machine manufacturer reported a18% reduction in energy consumptionand a2.5% improvement in product qualification rateafter switching to the A145-FR01BS-60, with8,000 hoursof fault-free operation.
• Typical Application: A Japanese steel company used it in a continuous casting machine’s hydraulic system, achieving pressure fluctuations below±0.5 MPaand significantly improving slab quality.
