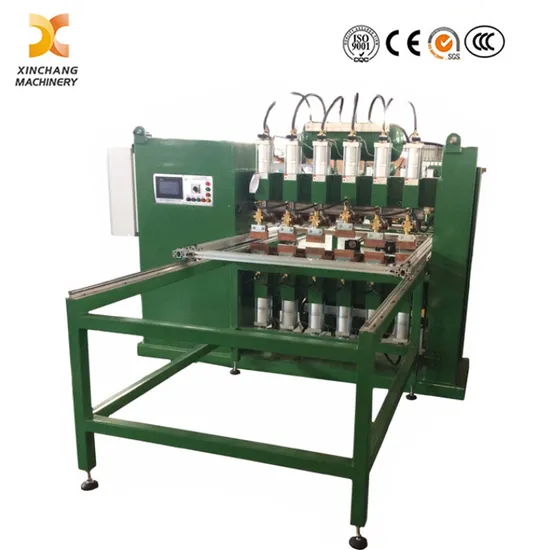

Gantry Condenser Spot Welder

This customized high-efficiency gantry type wire mesh welding machine is specially designed for condenser production. With a stable gantry structure and intelligent control system, it ensures stable operation, uniform welding spots and high forming consistency, fully meeting the continuous production demands of refrigeration components.

Supported by precise multi-point synchronous welding technology, it integrates the advantages of a Multi-Head Wire Mesh Welder for efficient simultaneous welding. Combined with the accurate positioning performance of a Mesh Spot Welding Machine, and supported by the reliable performance of Multi-Spot Welding Equipment, it greatly improves production efficiency, ensures firm solder joints and consistent mesh quality, making it ideal for customized condenser mesh processing.

A:Features
^{_{1, Efficiency high: Can produce 1000 PC/da usually.
2, Rate of loose-weld lower: Only 5 point among 1000 PCS product.
3, Without deformation and discoloration.
4, High energy saving: Energy saving 40% than usual machine.
5, Electrode is easy to change after wear, don't need to change the complete electrode and electrode base, only for electrode parts.}}

	DNW3-250-1200	DNW-150-3	DNW2-150-4
Rated capacity (KVA)	250	150	150
Transformer	1200type 250KVA MF inverter transformer	150KVA AC transformer	150KVA AC transformer
Rated voltage (V)/ Phase	380/3	380/1	380/1
Rated frequency(HZ)	50	50	50
Max. short circuit Current  (KA)	42.9	36	36
Duty cycle(%)	50	20	20
Max. pressure(N)	5315	5315	5315
Upper electrode Stroke  (mm)	60	60	60
Lower electrode Stroke (mm)	40	40	40
Cooling water flow (L/min)	24	6	6
Max. welding width each electrode (mm)	155	100	100
Welding speed (pcs/ 8h)	1000	800	800
Overall dimension (mm) L*W*H	2600*670*1685	460*1100*1900	1250*680*1840
Air pressure	≥0.6mpa	≥0.6mpa	≥0.6mpa
Insulation class	F	F	F
