Double-headed winter melon peeling machine

5 month ago

34 0 

Kunming Jinma Stainless Steel Kitchenware Co., Ltd.

6 month

Product details

Equipment Usage

This automatic peeling machine is mainly designed for pineapple peeling and also applicable for papaya, taro, cantaloupe, winter melon, grapefruit and other small melon and fruit peeling. Featuring circulating up-and-down cutting by knife groups, it supports adjustable peeling thickness with a peeling rate above 95%.

The specially designed knife holder realizes directional peel discharge for convenient collection and cleaning. The whole machine is easy to disassemble, wash and operate, ensuring safe and hygienic fruit processing.

Applicable Scenarios

Widely applicable for catering industries, staff canteens and food processing plants for batch fruit peeling pretreatment.

Advantages and Characteristics

Stable Structural Performance: Adopts 2mm thickened plate with high structural strength. The pressure-bearing body is not easy to deform under long-term operation.

Adjustable Working Parameters: The pressing intensity is adjustable to prevent soft fruits from being crushed. Tool cutting tension can be fine-tuned effectively to avoid tool jumping. The cylinder stroke is adjustable and positionable to adapt to different fruit lengths.

High-quality Accessories: Equipped with stainless steel tracks, French Schneider control buttons and Taiwan Yadeke cylinders, ensuring stable operation, high durability and long service life.

High-efficiency & Hygienic: 95%+ high peeling rate with directional peel discharge design. Easy disassembly and cleaning meet food processing hygiene standards.

Double-headed winter melon peeling machineDouble-headed winter melon peeling machine

Technical Parameters

Machine Dimensions: 1100 * 700 * 1750mm (L*W*H)

Production Capacity: About 120 pieces per hour

Power Supply: 220V, 1kW

Machine Weight: 140kg

Notes: The effective peeling length of winter melon is within 90cm; customized solution is required for oversize fruits. A 550W air compressor needs to be prepared by the user.

Installation Instructions

Place the machine on flat and dry ground to keep stable. Connect 220V power supply and match the external 550W air compressor. Check cylinder, track and knife group status, then conduct idle test to confirm normal operation before feeding fruits.

Usage Instructions

Adjust pressing strength, tool tension and cylinder stroke according to fruit size and hardness before operation. Place fruits stably for automatic circulating peeling. Do not touch the running knife group during operation. Stop the machine completely before replacement and cleaning.

Cleaning & Maintenance

Cut off power and air supply before maintenance. Disassemble and clean the knife group and peel discharge area regularly to keep the machine clean. Check accessories such as cylinders, tracks and buttons periodically to ensure stable operating performance.

Safety Precautions

Do not disassemble electrical and pneumatic components privately. Prohibit hands close to the cutting area during operation. Stop use immediately in case of abnormal noise or jamming, and troubleshoot before reuse.

Similar Video Recommendation

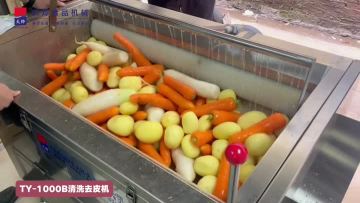

Cleaning and peeling machine
