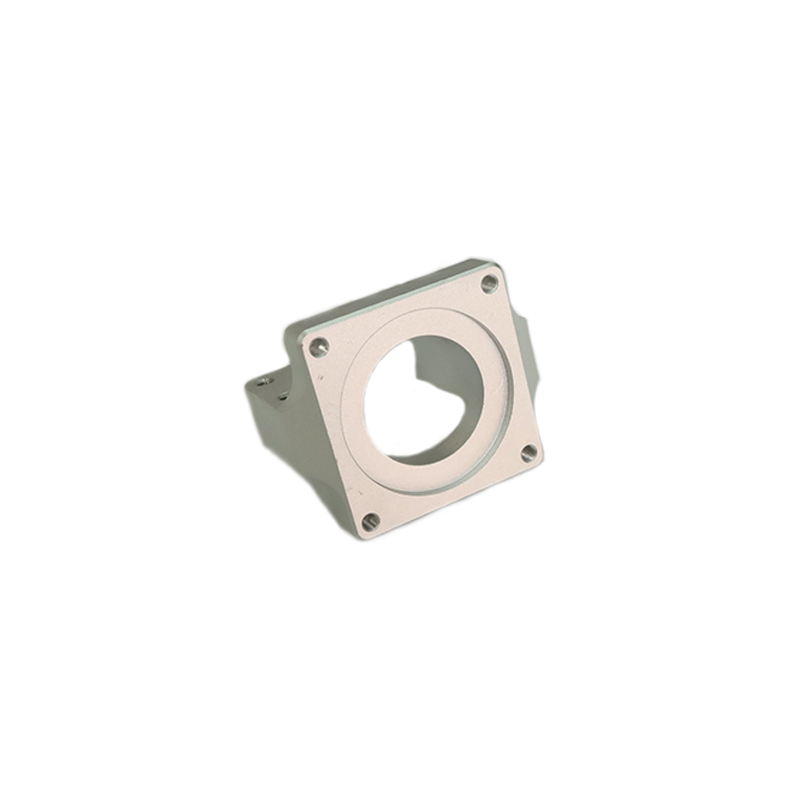

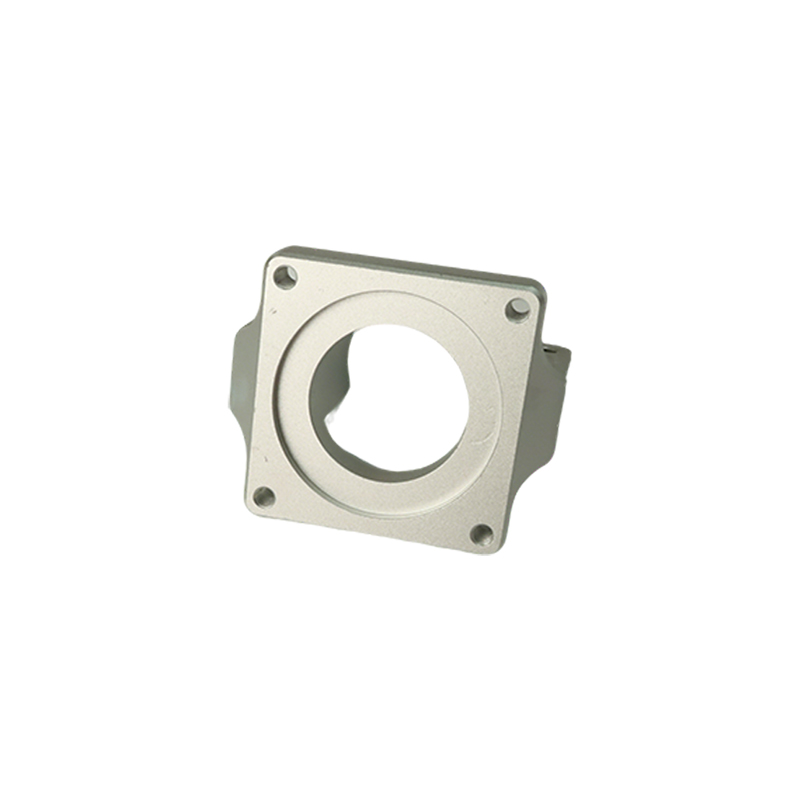

The fixed base is made of high strength aluminum alloy material AL7075-T6 developed by precision CNC milling technology, and overall adopts a compact symmetrical U-shaped arrangement. There is a hole through the center for the insertion and positioning of shafts or rods; The vertical walls on both sides have sufficient thickness and a constant height, and the upper edge was slightly cut, to eliminate the stress concentration and improve the safety of assembly. The lower surface is flat and a number of threaded bores are provided at the front and rear ends, making it easy to firmly install on the equipment substrate or bracket. The overall appearance is simple and orderly, with smooth and continuous transitions in the inner cavity and no redundant structures.
Step 1: Select the AL7075-T6 aluminum alloy rod or plate, first make a precise cut and remove the excess residue by cutting; The leveling treatment and stress relief annealing is carried out to effectively eliminate the remaining stresses inside the material and prevent deformation during treatment or subsequent use;
Step 2: Start the CNC milling equipment to roughly milling the blank, quickly remove most of the excess, machining the rough shape of the base, the U-shaped groove and the contour of the hole, reserve and approximately track the precision treatment concession from 0.2 to 0.3 mm and roughly drill and install the bottom hole to prepare for subsequent precision machining;
Step 3: With the high precision CNC milling technology, with high-precision CNC equipment and milling base for individual tools, the formation of the U-shaped support arm will be the precision drilling through the hole and the precision core of the installation hole is completed at once, with all controlled tolerances within ± 0.01 mm.
At the same time, perform mirror milling on the coupling surface to ensure flatness and vertical straightness, by achieving continuous adaptation between the base and the components of the equipment and eliminating interruptions and deviations;
Step 4: Manually deburr and chamfer the processed base, remove the milling bags and accurately remove the aluminum fragments and oil stains by ultrasonic cleaning, to clean the surface;
Step 5: Perform the natural hard anodizing directly, by the electrochemical reaction to produce a dense aluminum oxide protective film with high hardness and wear resistance.
Dongguan Shengpeng Precision Technology Co., Ltd., as a professional manufacturer of precision components, has a mature and complete treatment system, and can provide comprehensive precision milling service to meet various needs of individual customization. We can customize the dimensional specifications of the fixed base according to the customer's device model and installation scenario, and the support material (such as AL6061, stainless steel, etc.) and replace the setting of the surface treatment process (such as anodizing, sandblasting, passivation, electrophoresis, etc.) by exactly meeting the product design requirements.
