Fiber Optical Tester OTDR
4 month ago
Product details
OTDR Fiber Optic Tester, 8K IP&Analog Camera Tester, Gigabit SFP, Cable Tracker, Eletroscope, Video Level Meter, Multimeter, Optical Level Meter, Visual Fault locater, Distance Measurement, fiber optic tester, fiber optic equipment, fiber cable tester, EXFO OTDR

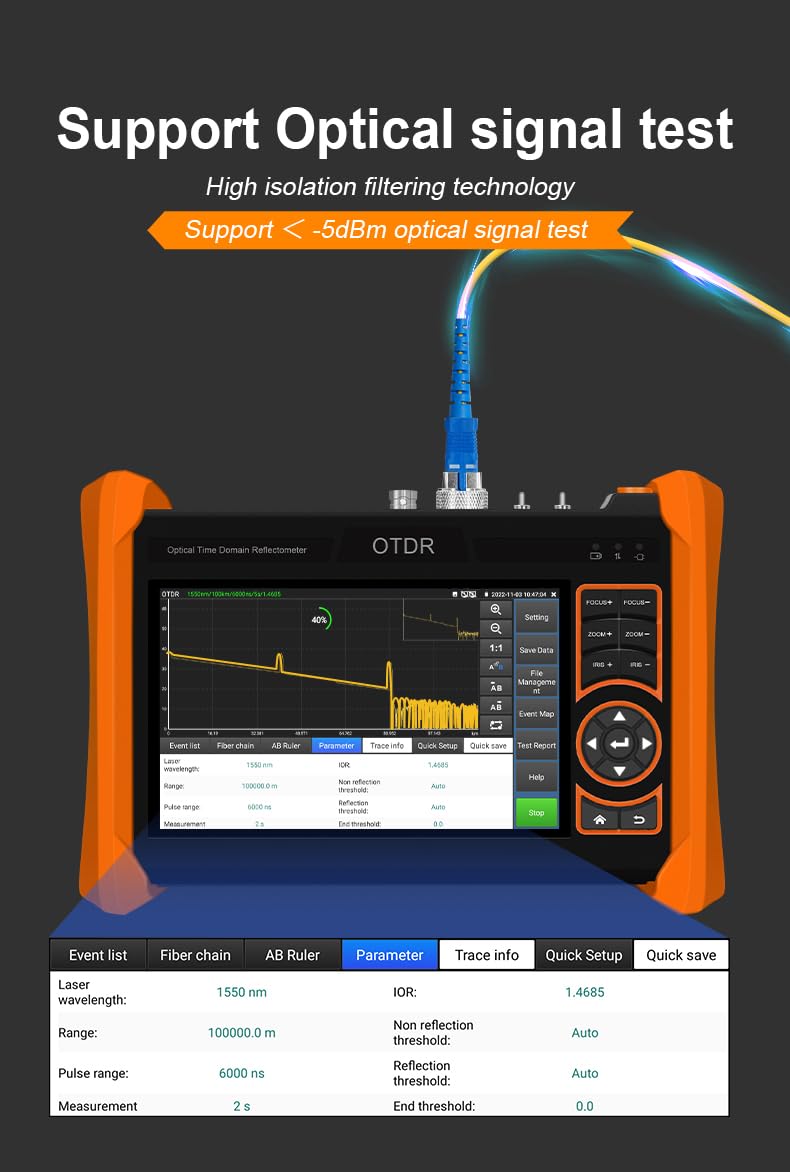

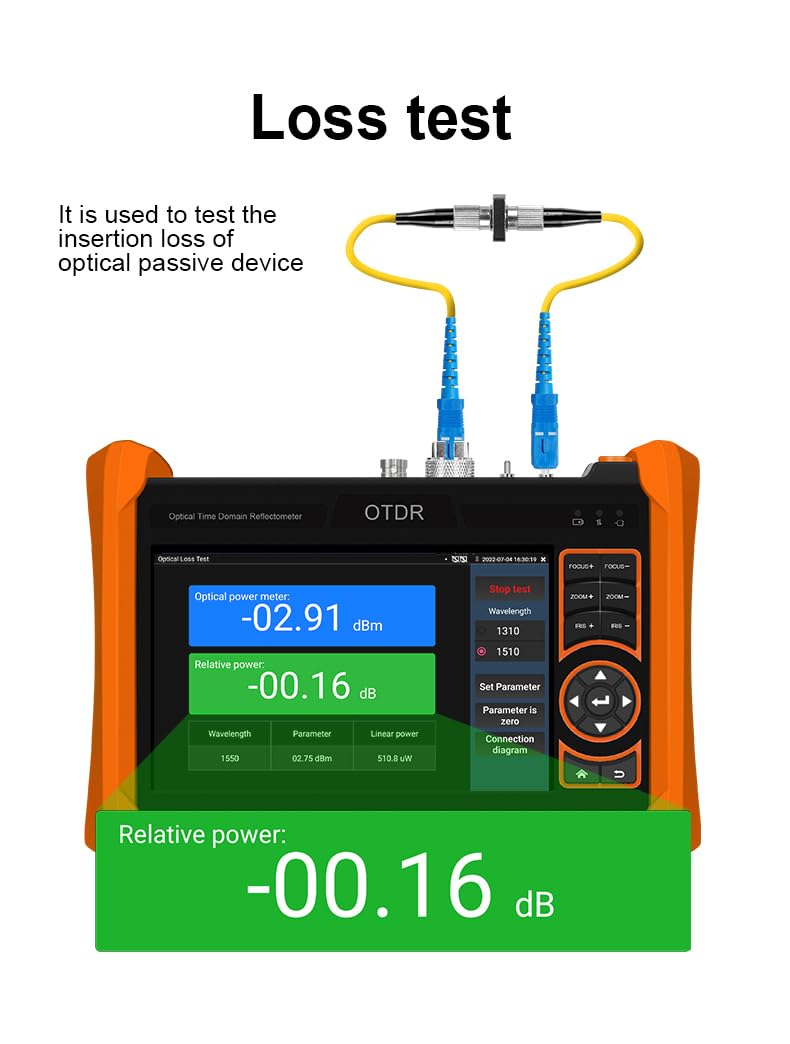

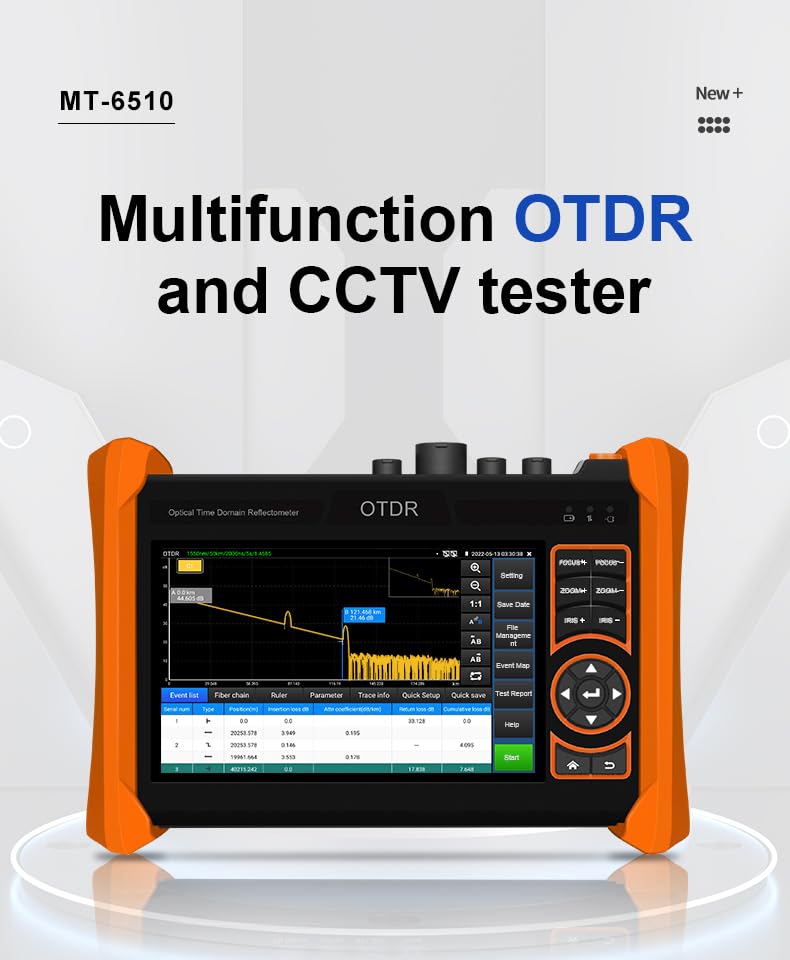

The OTDR Fiber Optic Tester is a versatile tool that is indispensable for testing the length of fiber, networks, and CCTV cameras. It shows the strength of the signal that bounces back as a function of distance. This data is useful in verifying the performance of a fiber optic connection. The tester is commonly used in the upkeep, building, and surveillance of cable lines. It can determine the length of the optical fiber, the transmission loss of the fiber, the splice loss, and the location of faults. This device supports dual-wavelengths of 1310/1550 and has a maximum testing range of 150KM. It can automatically analyze various linkers and fusion points, making it easy to analyze different events. The device allows you to save and view testing curves, and it supports zooming and moving curves for detailed viewing. It can save more than 30,000 curves. The device also supports UCC menu control mode with options to select either A-TYPE or B-TYPE.
The EVERSECU 8K CCTV Camera Tester is a new device that comes with a 7-inch IPS touch screen with a resolution of 1920*1200. It has the capability to test 8K H.265 IP cameras, CVBS analog cameras, and HD coaxial cameras (supporting up to 8MP TVI / AHD / CVI / SDI camera tests). Additionally, it supports UTC PTZ control and OSD menu access. The IPC tester can activate DH and Hik cameras in batches, and it allows for modifications to their IP addresses, passwords, and more. It complies with onvif standards and supports face recognition and the creation of test reports.
The IP camera tester is equipped with an SFP optical module port. This feature enables you to insert an SFP optical fiber module for testing optical fiber networks and conducting data transmission tests with devices equipped with SFP optical ports. Additionally, it includes a lens focal length calculation function that simulates the display area of various lenses (2.8/3.6/4/6/8/12/16/25mm), providing a reference when selecting a lens. The HD CCTV tester also incorporates an optical power meter and a visual fault locator.

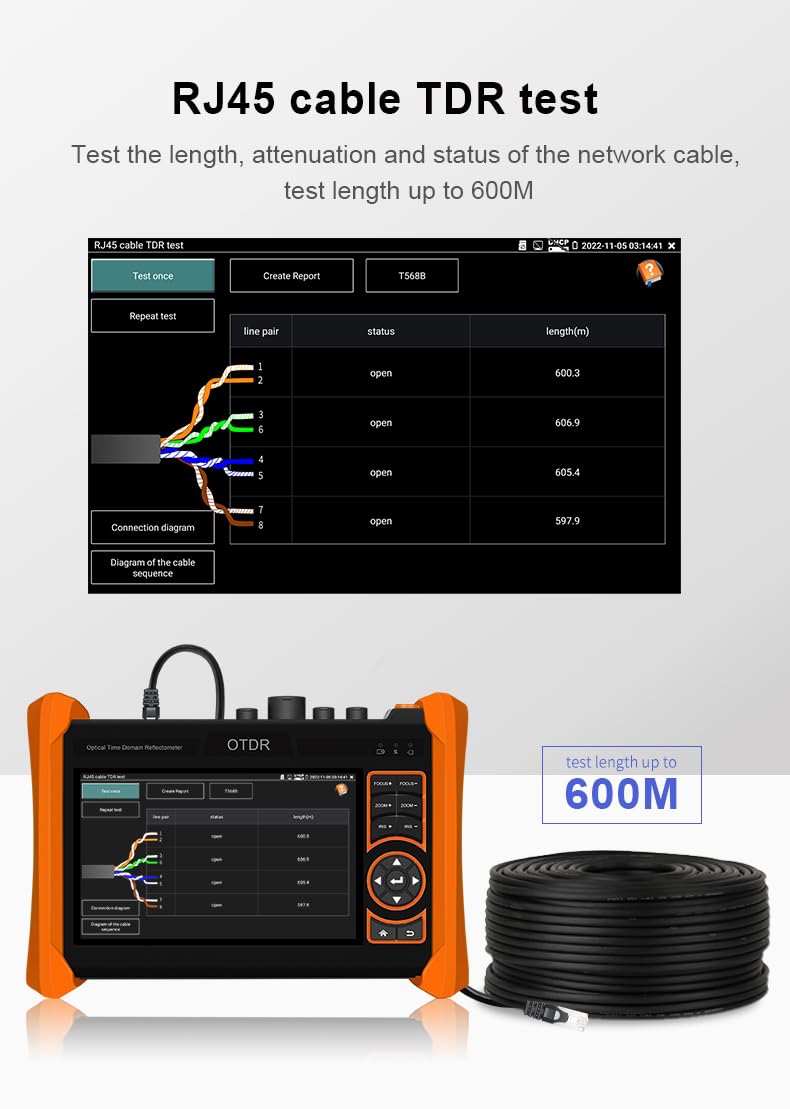

The Cable Tester is a versatile tool that offers several testing capabilities. The RJ45 cable test checks the status, length, attenuation, reflectivity, impedance, skew, and other parameters of cable pairs. The TDR cable test measures the length and detects any short circuits in BNC cables, network cables, telephone cables, RVV cables, elevator cables, and Cat 5/6 cables up to a distance of 1.2KM. It also features a TDR network port for convenient testing of network cables. Additionally, the digital cable tracer assists in accurately locating BNC cables, network cables, and phone cables amidst clutter.
The EVERSECU CCTV Monitor Tester is a professional device that supports HDMI input and output, as well as VGA input. It features a WIFI analysis function that can detect nearby WIFI signals and their strength across both 2.4G and 5G frequency bands. The device also supports various power outputs including POE48V, USB5V 2A, DC12V 3A, and 24V 2A. It is powered by a 7.6 V /7800mAh lithium-ion polymer battery that can be fully charged in 3.5 hours and can last up to 16 hours. Additionally, it comes with an 8GB TF card.
The EVERSECU CCTV Tester comes with several additional features:
It has a built-in distance meter with a measurement range of up to 100m and an accuracy of ±3mm.
It supports HDMI input of 4K at 30FPS, HDMI output of 4K at 60FPS, and VGA input of 2K at 60FPS.
It includes a professional WIFI analyzer that can detect the surrounding wifi signal and its strength.
Moreover, it offers a network tool that includes functionalities such as Ping, IP scan, Port Flash, DHCP server, and Trace Route. It can provide information about POE & power, such as DC12V & PoE power and voltage output/input measurement. It features Tester Play, which allows the Tester, Android version mobile phone, and PC to display simultaneously.
Furthermore, it has a shortcut button and a drop-down menu that can select options like Poe power, IP setting, CVBS, LAN info, HDMI IN, etc. It supports traffic monitoring, displaying real-time upload and download speeds and other network parameters for network ports or WIFI connections.
