I. Product Overview

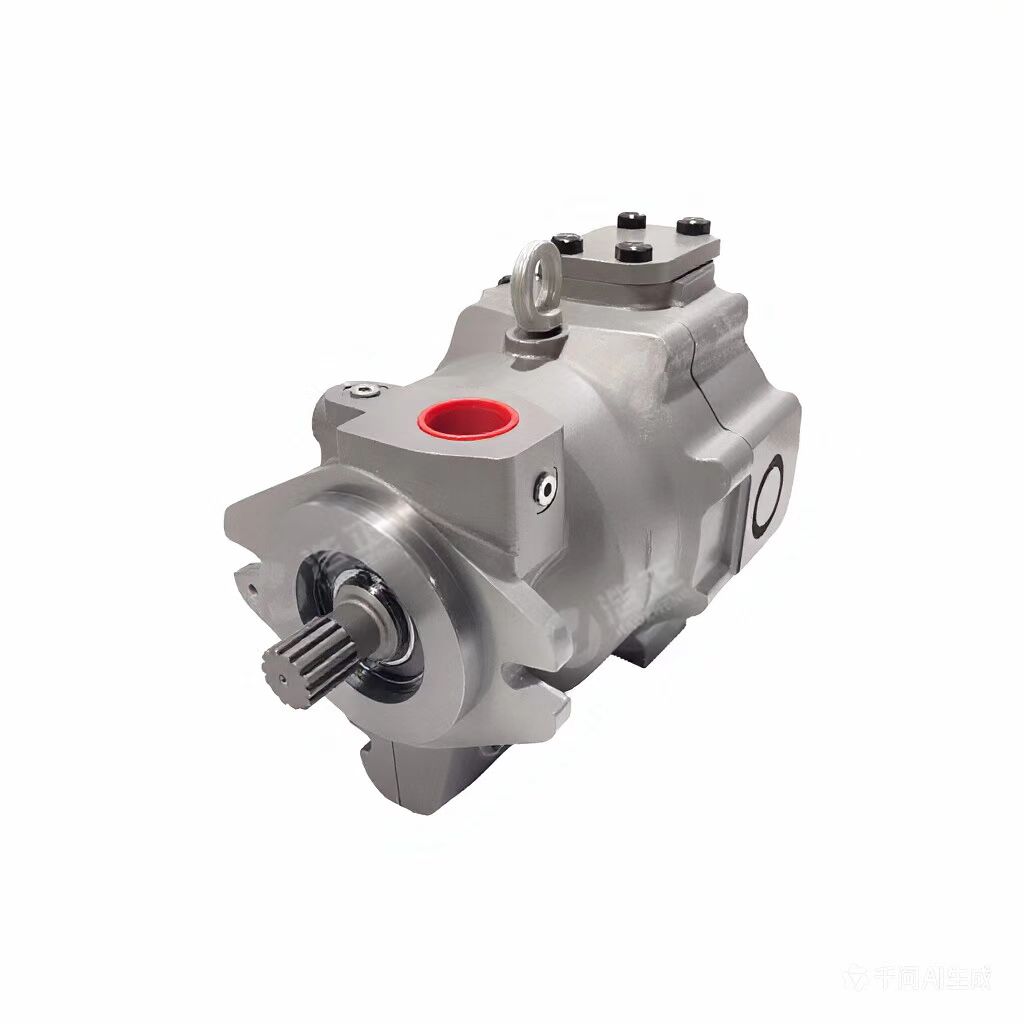

ThePAVC100B2L4HM22 hydraulic piston pumpis a variable axial piston pump from Parker's PAVC series. It features a high-strength cast iron housing and a compact design, making it suitable for medium-to-high-pressure hydraulic systems. This pump offers variable displacement control, allowing for precise adjustment of flow rates to meet system demands, thereby achieving efficient and energy-saving operation. Its hydrodynamic cylinder block bearings and sealed bearings ensure stability and durability during high-speed operation.
II. Key Features
1. High-Strength Cast Iron Housing: Provides exceptional structural strength and impact resistance, suitable for harsh operating conditions.
2. Variable Displacement Control: Enables stepless adjustment of displacement via cartridge-style controllers, meeting precise flow requirements of the system.
3. High-Speed Capability: Maximum speed up to 2,600 RPM (3,000 RPM for some models), suitable for hydraulic systems requiring rapid response.
4. Sealed Bearings: Effectively prevent lubricant leakage, extending bearing service life.
5. Two-Piece Design: Facilitates maintenance and replacement of key components, reducing maintenance costs.
6. Replaceable Bronze Port Plate: Enhances wear resistance and extends pump lifespan.
7. Bleed Valve: Simplifies rapid hydraulic oil filling, reducing system startup time.
8. Hydrodynamic Cylinder Block Bearings: Provide excellent lubrication and cooling, ensuring stable bearing operation under high-temperature and high-speed conditions.
III. Technical Specifications
• Displacement: 100 cm³/rev (6.1 in³/rev)
• Rated Pressure: 207 bar (3,000 psi)
• Maximum Speed: 2,600 RPM (3,000 RPM for some models)
• Operating Temperature Range: -40°C to 71°C
• Weight: Approximately 50 kg (specific weight may vary by model and configuration)
• Piston Diameter: 26 mm (specific dimensions may vary by model)
• Number of Pistons: 9 (specific quantity may vary by model)
IV. Application Areas
The PAVC100B2L4HM22 hydraulic piston pump is widely used in the following fields:
1. Metallurgical Industry: Used in electric furnace hydraulic control systems to provide stable high-pressure hydraulic power.
2. Construction Machinery: Powers working devices in excavators, loaders, and other equipment.
3. Industrial Equipment: Provides precise hydraulic control in injection molding machines, die-casting machines, and machine tools.
4. Agricultural Machinery: Offers reliable hydraulic power support for various agricultural equipment, such as tractors and harvesters.
V. Selection and Configuration
The PAVC100B2L4HM22 hydraulic piston pump can be selected and configured based on specific application requirements, including:
• Controller Type: Multiple control options available, such as pressure compensation, load sensing, and power limiting.
• Mounting Style: Horizontal or vertical mounting can be selected based on equipment space layout.
• Port Size: Appropriate port specifications can be chosen according to system piping dimensions.
• Additional Features: Optional accessories such as filters and coolers can be selected based on actual needs.
