The motor-driven traction is synchronized with the main unit speed, ensuring stable linear speed, uniform paper wrapping pitch, and a wide pitch adjustment range to meet the requirements of 1-12mm wire diameter.

4 month ago

10 0 

Dongguan Hongli Cable Equipment Technology Co., Ltd.

2 year

Product details

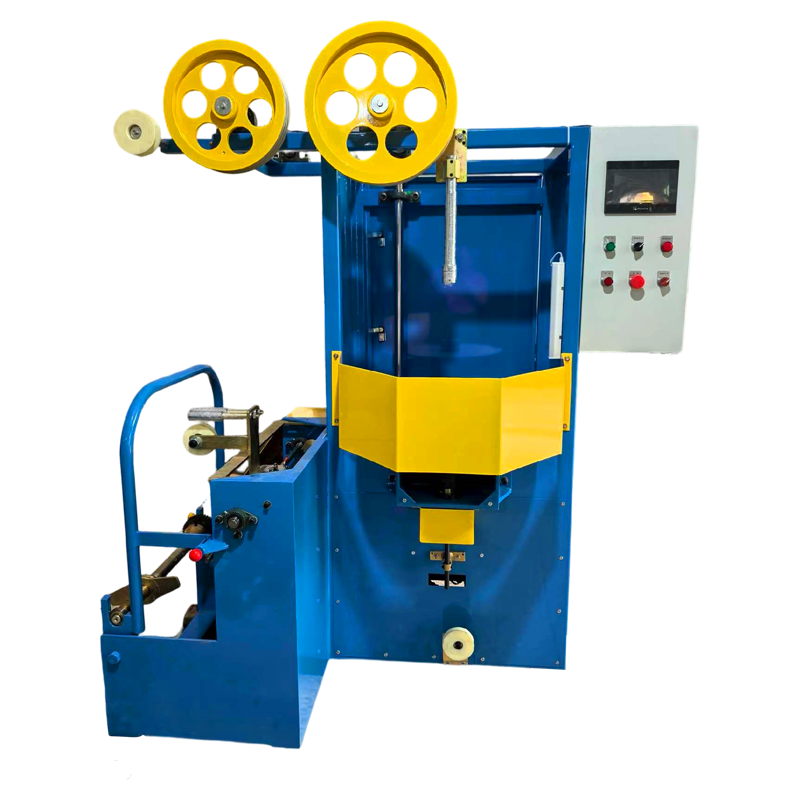

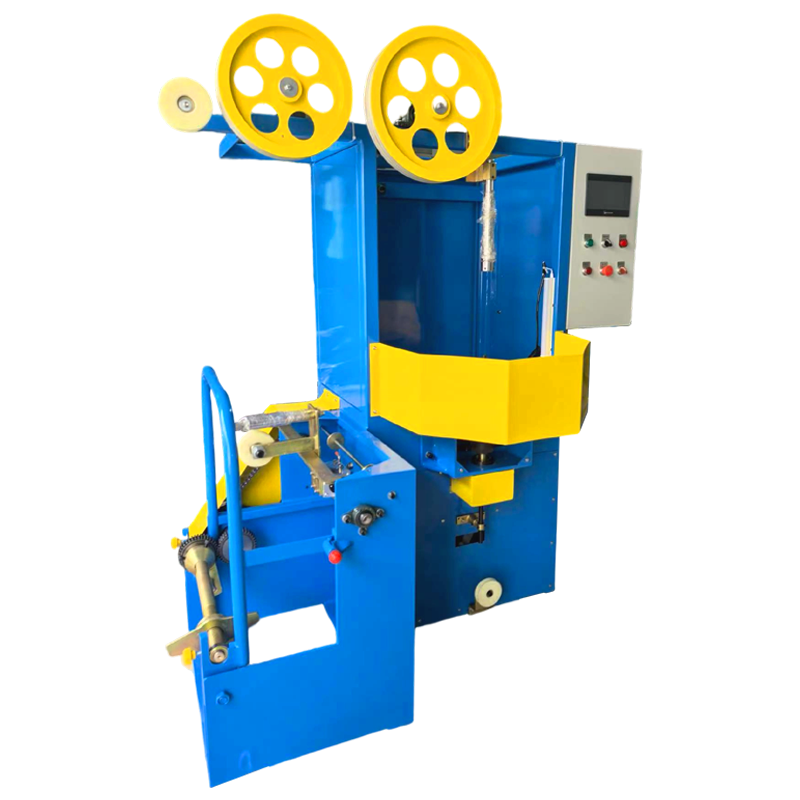

Single Pack Tape Wrapping Machine: This vertical, unidirectional winding machine (paper tape, aluminum foil) uses a rotating disc to wind the core wire and has a built-in single winding head. It is mainly used for winding mica tape around the insulated core wires of electrical wires, high-strength cables, control cables, optical cables, etc.

Fire-resistant wires and cables are mainly suitable for power plants, airports, ships, high-rise buildings, subways, underground streets, and leisure and entertainment venues. The demand for fire-resistant wires and cables is increasing, therefore, many fire-resistant wire and cable paper wrapping machines and other products have appeared on the market, providing new specialized equipment for various wire and cable fields.

Working principle: The single-head winding machine uses a belt-driven motor, which, through bevel gear transmission, rotates the winding drum left and right. The core wire passes through the single-head forward and reverse rotating drum, and the tape is wound onto the core wire, achieving one-time winding. Through stepless speed adjustment, single-head, double-head, and triple-head winding machines can be produced according to customer needs.
