Product details

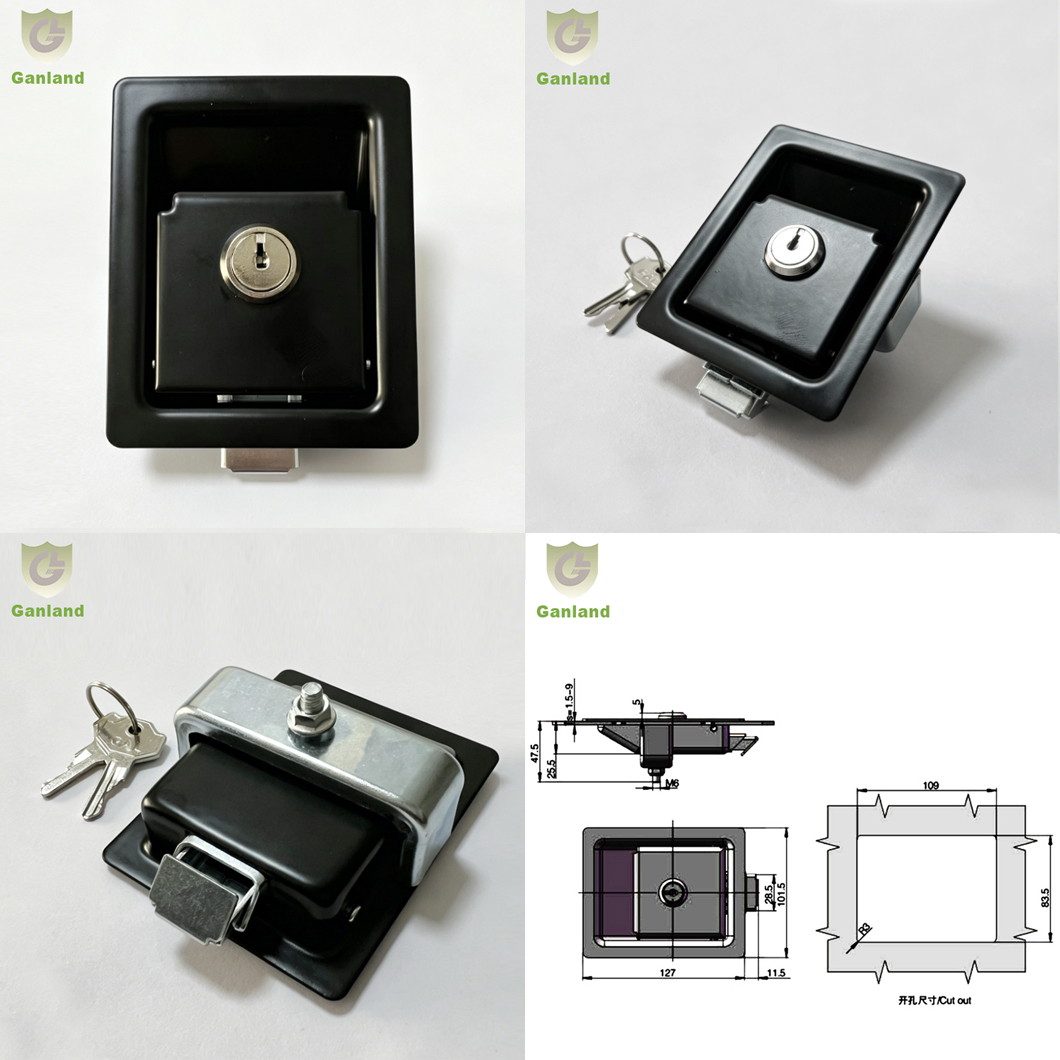

This black, recessed paddle handle latch (often referred to as a flush mount latch) is a heavy-duty hardware component designed for flush-to-surface installation on toolboxes, utility vehicle compartments, trailers, and industrial enclosures. Its primary function is to provide a secure, low-profile locking mechanism that does not protrude significantly from the mounting surface, reducing the risk of snags or damage in high-traffic or outdoor environments.

GL-12171B black recessed paddle handle latch (often referred to as a flush mount latch) is a heavy-duty hardware component designed for flush-to-surface installation on toolboxes, utility vehicle compartments, trailers, and industrial enclosures. Its primary function is to provide a secure, low-profile locking mechanism that does not protrude significantly from the mounting surface, reducing the risk of snags or damage in high-traffic or outdoor environments.

Product Specifications & Key Features

Design Type: Flush-mount paddle latch with a rectangular outer frame and an integrated pivoting handle.

Material & Finish: Constructed from high-strength carbon steel or stainless steel, finished with a durable, corrosion-resistant black powder coating or E-coat. This finish is specifically designed to withstand harsh weather conditions, UV exposure, and mechanical wear.

Locking Mechanism: Features a centrally located, zinc-alloy key-locking cylinder. The lock is typically compatible with standard double-bitted keys or specific CH-series keys, offering a balance between convenience and security.

Latch Type: Single-point slam latch. The spring-loaded deadbolt (visible at the bottom) allows the door to be slammed shut and locked automatically without manually turning the handle.

Technical Dimensions & Installation

While specific dimensions vary by manufacturer, this standard size typically follows these industry benchmarks:

Outer Dimensions: Approximately 120mm x 92mm (4.72" x 3.62").

Cutout Size: Requires a rectangular hole roughly 105mm x 75mm for recessed mounting.

Mounting Method: Usually secured via four mounting studs on the rear side or through pre-drilled holes for rivets/bolts.

Common Applications

Automotive & Transport: Truck toolboxes, horse trailers, RV storage compartments, and service vehicle bodies.

Industrial Enclosures: Electrical cabinets, generator housings, and heavy machinery access panels.

Marine: Storage lockers on boats where a flush surface is required to prevent tripping hazards.

Durability and Security Analysis

The recessed design is the hallmark of this hardware. By sitting flat against the door, it prevents thieves from using pry bars or hammers to shear off the lock—a common vulnerability in protruding T-handle latches.

The internal mechanism utilizes a heavy-duty return spring that ensures the handle stays seated within the dish when not in use, preventing rattling during transport. The rear of the unit (not shown) typically features a mounting bracket and a cam or strike plate engagement arm that can be adjusted for a tight seal against a gasket, ensuring the compartment remains water-resistant and dust-proof.

Maintenance & Longevity

To ensure the longevity of this black paddle latch, it is recommended to periodically lubricate the key cylinder with graphite powder rather than oil-based lubricants, which can attract grit. The pivot points of the paddle should be treated with a light lithium grease to maintain a smooth "snap" action during operation.

This specific model is a staple in the MRO (Maintenance, Repair, and Operations) industry due to its universal fit and reliable performance in demanding field conditions. Whether you are replacing a broken latch on a Weather Guard toolbox or building a custom overland rig, this black powder-coated locking paddle latch is the gold standard for security and aesthetics.
