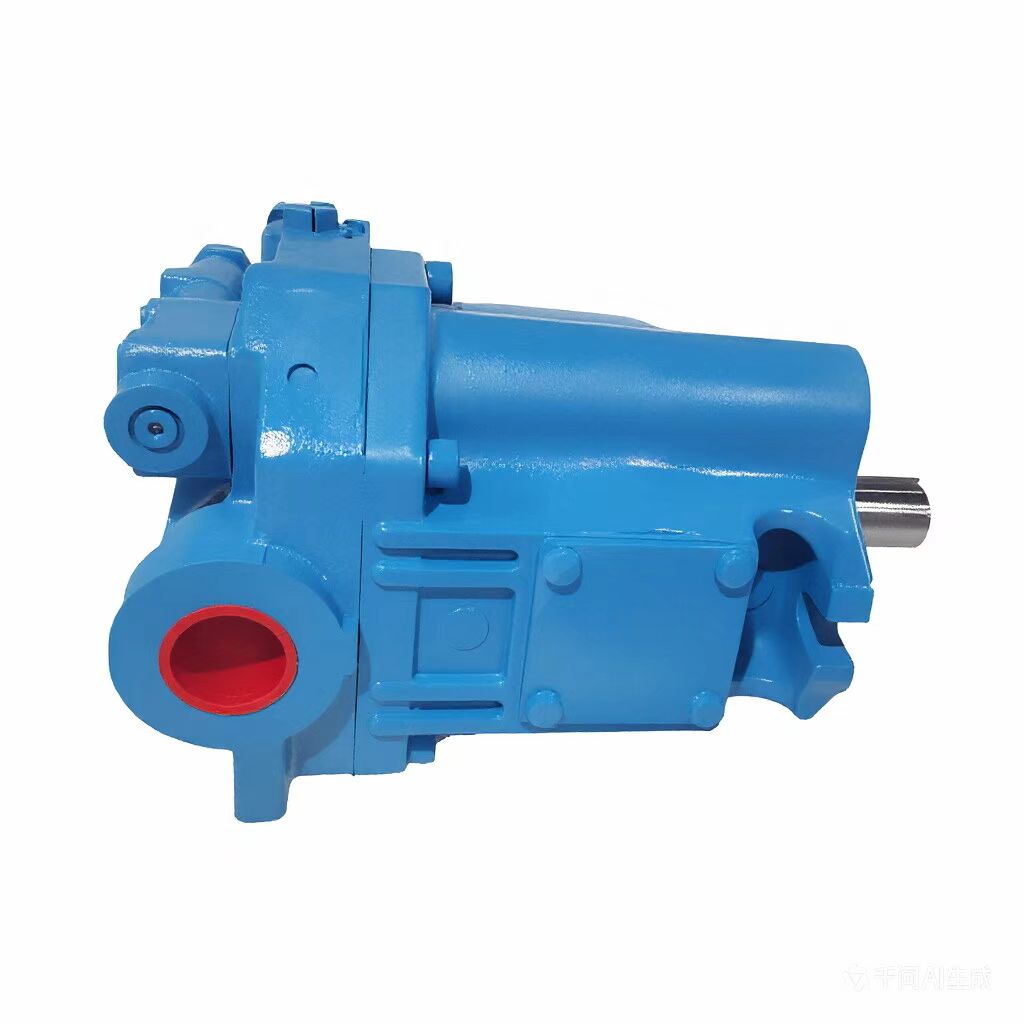

PVE19 and PVE21 Hydraulic Pumps

3 month ago

6 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

Product Specifications

• Model: PVE19RW-Q1830-1-30-CC-11-JA-S20

• Operating Pressure: 210 bar (some sources indicate 25 MPa; refer to actual operating conditions for accuracy)

• Speed Range: 2400 rpm

• Displacement: 41 ml/r

• Control Method: Pressure and flow compound control

• Pump Weight: 25 kg

• Rotation Direction: Clockwise (R)

• Port Positions: On both sides

• Pump Type: Axial piston pump (variable displacement)

• Applicable Medium: Hydraulic oil

• Applicable Temperature Range: 30°C to 90°C

Product Features

1. Compact Structure: Small size and lightweight, facilitating easy installation and maintenance.

2. Superior Performance: Low noise and long service life, suitable for high-load operating conditions.

3. Flexible Control: Supports pressure and flow compound control to meet diverse requirements.

4. Tandem Drive Capability: Can be combined into tandem pump drives to enhance system efficiency.

Application Fields

• Port and Marine Machinery: Hydraulic systems for cranes, hoists, windlasses, and hatch covers.

• Metallurgical Machinery: Rolling mills, continuous casting equipment, etc.

• Mining Machinery: Excavators, loaders, etc.

• Industrial Machinery: Press machines, injection molding machines, etc.

• Construction Machinery: Bulldozers, cranes, etc.

Manufacturer Information

• Manufacturer: Huizhou Haozheng Hydraulic Machinery Equipment Co., Ltd. (some sources indicate Wuhan Futaisheng Electromechanical Equipment Co., Ltd. may also offer related products; verify with actual procurement).

• Product Series: HZPVE Series (variable displacement piston pumps).

• Advantages: Simple structure, compact size, lightweight, low noise, and long service life.

Selection and Usage Recommendations

1. Model Selection Based on Operating Conditions: Choose the appropriate model based on system pressure and flow requirements.

2. Installation and Commissioning: Ensure the coaxiality error between the pump shaft and the driving motor is within the allowable range. Fill with oil and exhaust air before initial startup.

3. Maintenance and Upkeep: Regularly replace hydraulic oil, monitor pump body temperature and noise, and promptly address any abnormalities.
