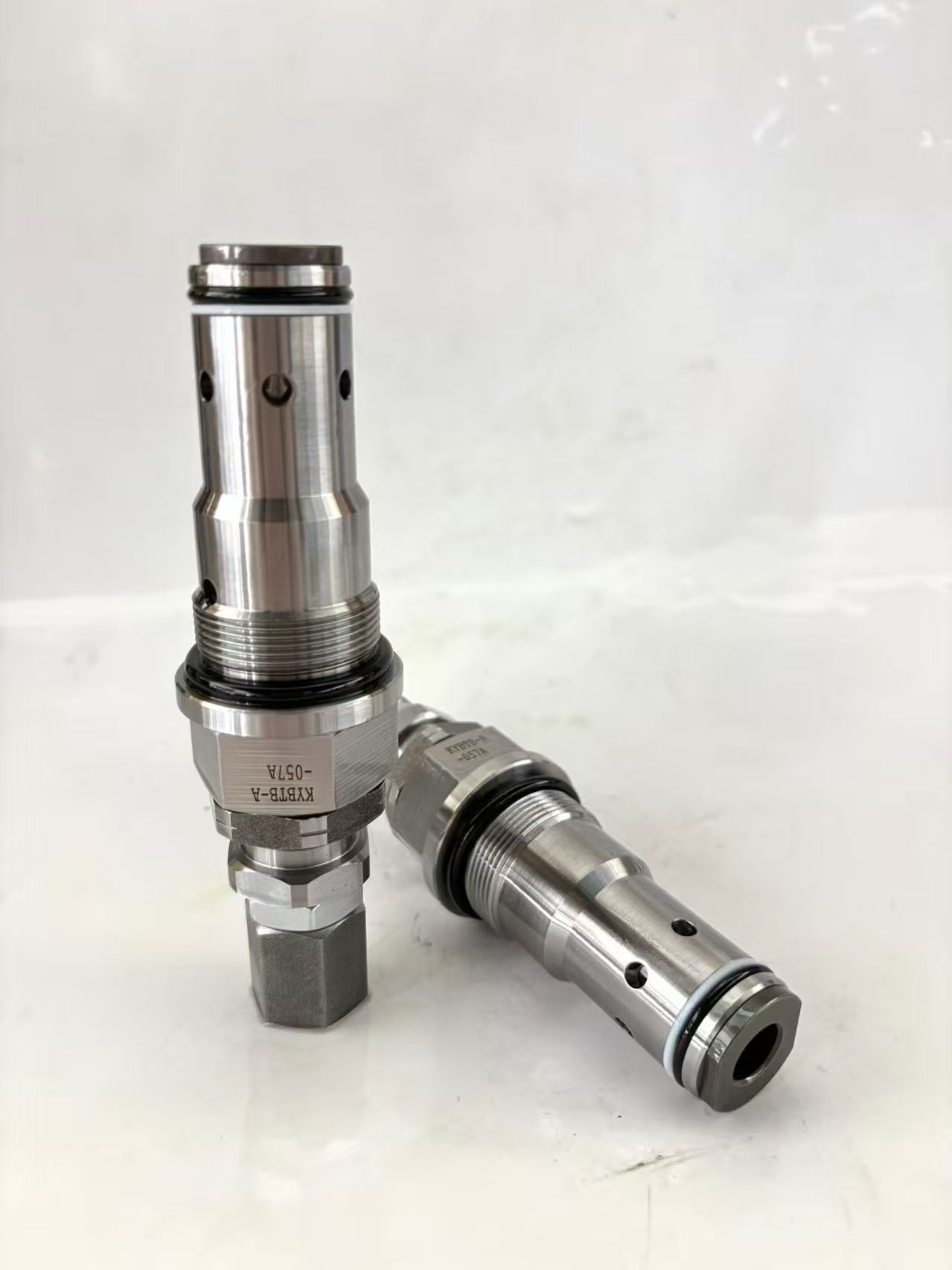

Excavator Hydraulic Relief valve

4 month ago

12 0 

4 year

Product details

Function

1. Overpressure Protection: When the system pressure exceeds the preset safety threshold, the relief valve automatically opens to release excess pressure, preventing system damage caused by overpressure.

2. Pressure Stabilization: In hydraulic systems, the relief valve can maintain a stable pressure by continuously releasing excess pressure, counteracting pressure fluctuations and keeping the system pressure within a set stable range.

3. System Protection: It prevents hydraulic pumps, cylinders, pneumatic components, and other parts from being damaged due to overpressure, extending the service life of the equipment.

Working Principle

The relief valve regulates the system's working pressure or limits its maximum pressure by allowing fluid to overflow through its orifice. When the system pressure rises to the relief valve's set pressure, the valve disc automatically opens, rapidly reducing the system pressure by discharging the medium. Once the pressure drops to the safe closing pressure, the valve automatically resets and closes. This process operates passively without manual intervention, serving as a safety barrier under fault conditions.

Types

Based on their structure and function, relief valves can be classified into various types, including but not limited to:

1. Direct-Acting Relief Valves: Simple in structure and highly sensitive, suitable for low-pressure, small-flow systems.

2. Pilot-Operated Relief Valves: Composed of a pilot valve and a main valve, suitable for high-pressure, large-flow systems with better pressure stabilization performance.

3. Remote Pressure Regulating Valves: Small-flow, direct-acting relief valves specifically designed for remote pressure regulation, widely used in various test benches and centralized control panels of large equipment.

Application Scenarios

1. Excavator Hydraulic Systems: As a core safety protection component, it prevents system damage caused by overpressure.

2. Other Construction Machinery: Such as loaders and bulldozers, which also require relief valves to protect their hydraulic systems.

3. Industrial Equipment: Such as press machines and injection molding machines, which need relief valves to maintain stable system pressure.

Maintenance Recommendations

1. Regular Inspection: Periodically check the opening and closing pressures of the relief valve to ensure they are within the normal operating range.

2. Cleaning and Maintenance: Keep the relief valve clean to prevent impurities from entering and affecting its performance.

3. Timely Replacement: If leakage, sticking, or other malfunctions are detected in the relief valve, replace it with a new one promptly.

Excavator Hydraulic Valve Main Relief Valve Control Valve Unloading Valve for Komatsu/Hitachi/Hyundai Excavators Complete Specifications
