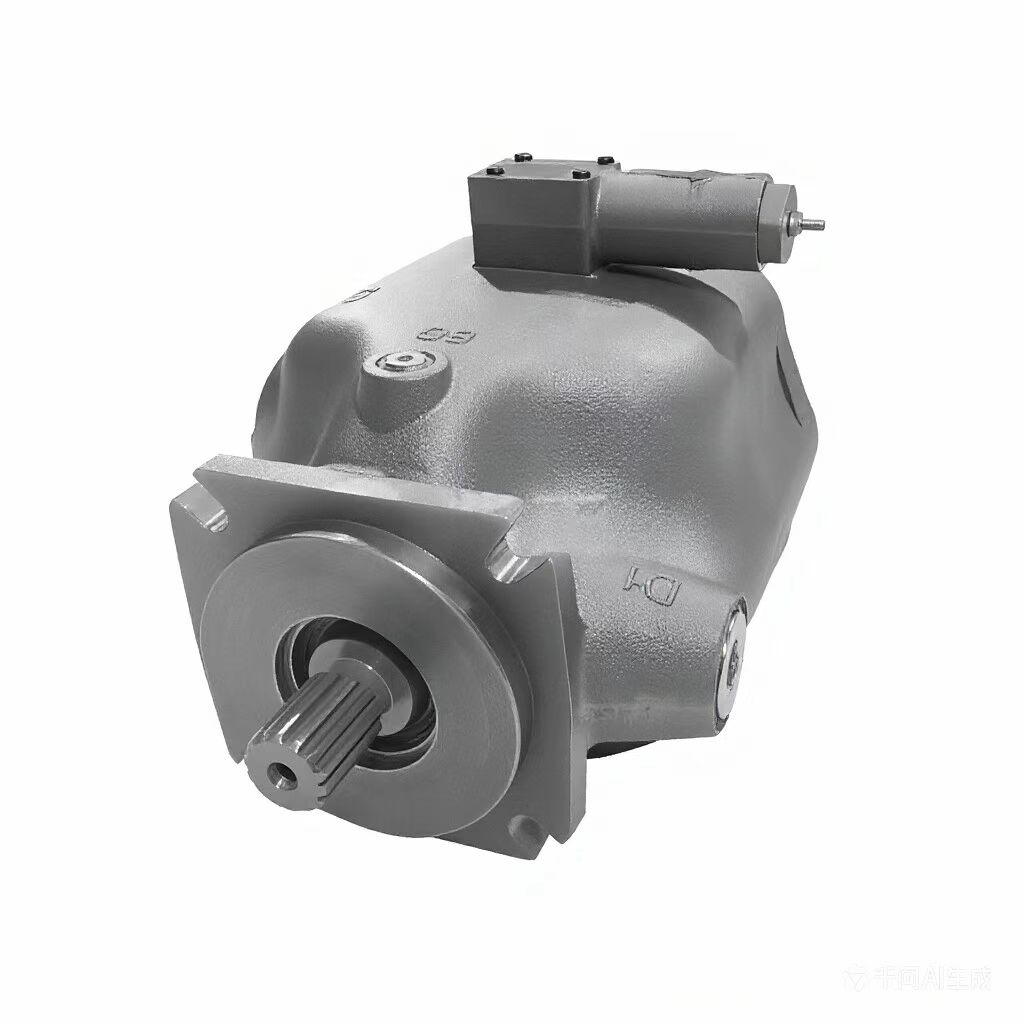

PD100 Variable Displacement Piston Pump

3 month ago

3 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

Product Overview

• Model: PD100

• Type: Variable Displacement Piston Pump

• Application Fields: Widely used in construction machinery, hydraulic steering systems, petrochemical, metallurgy, power generation, water treatment, aerospace, wastewater treatment, solid waste management, mining, dredging, cement industry, concrete pumping, shipping, and other related sectors.

Product Features

1. High-Pressure Output:

• Operating pressure up to10,000 psi (700 bar)or higher, meeting demanding high-pressure applications.

2. Easy Flow Adjustment:

• Enables stepless flow regulation by altering the swashplate angle or piston stroke.

3. High Volumetric Efficiency:

• Piston reciprocation in the pump chamber generates pressure differentials for fluid delivery, achieving volumetric efficiency of approximately95%.

4. Compact Structure:

• Space-saving design for straightforward installation and maintenance.

5. Enhanced Durability:

• Core components include piston-cylinder pairs, slipper assemblies, and port plates, featuring dual-metal plate and steel friction pair designs for extended service life.

6. Multiple Controller Options:

• Offers various displacement control methods for user-specific adjustments. Modular compensators ensure rapid response and stable operation.

7. Low-Noise Design:

• Incorporates corrugated chamber noise reduction technology to minimize operational noise, suitable for noise-sensitive environments.

Technical Specifications (Parker PD Series Example)

• Displacement Range:18–140 cm³/rev(PD100 positioned at the high end, approaching or reaching the upper limit)

• Continuous Operating Pressure:280 bar (4,060 psi)

• Rated Pressure:35 MPa

• Peak Pressure:42 MPa

• Control Methods: Standard pressure regulator, power regulator

• Mounting Interfaces: Compliant with SAE and ISO standards, supporting horizontal or vertical installation

Application Scenarios

• Construction Machinery:

• Used in excavators, loaders, etc., for controlling working device movements and travel motor drives.

• Hydraulic Steering Systems:

• Provides reliable steering assistance for vehicles.

• Petrochemical Industry:

• High-pressure delivery and metering of various liquid media.

• Metallurgy & Power Generation:

• Delivers dependable hydraulic power in high-temperature, high-pressure environments.

• Marine Applications:

• Utilized in ship hydraulic systems, such as steering gear and anchor winches.
