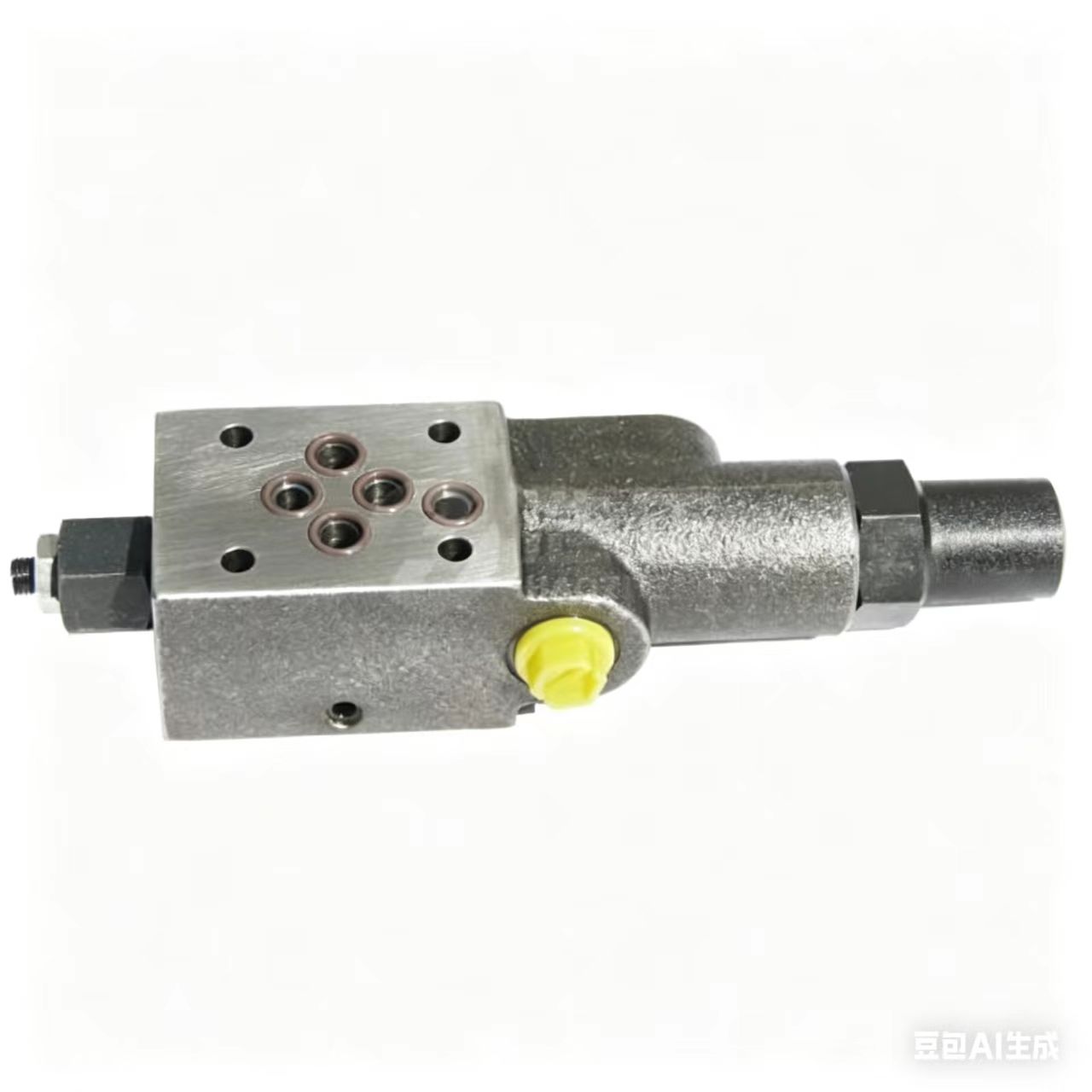

A4VSO pump hydraulic valve
4 month ago
Product details
A4VSO Pump with DR/DP/DFR/DRG Hydraulic Valves: Detailed Overview
I. Overview of A4VSO Pumps
The A4VSO pump is a swashplate-type axial piston variable-displacement pump manufactured by Rexroth, specifically designed for open-circuit hydraulic drives. Its key features include:
1. Variable Displacement Adjustment: Achieves stepless displacement adjustment by modifying the swashplate angle, with flow rate proportional to input speed and displacement.
2. High-Pressure Performance: Rated pressure of up to 350 bar and peak pressure of 400 bar, meeting high-load demands.
3. Modular Design: Supports multiple control methods, including pressure control, flow control, and load-sensing control.
4. Low Noise and Long Service Life: Optimized internal structure reduces friction and wear, ensuring quieter operation and extended maintenance intervals.
5. Compact Structure: Through-shaft design saves installation space and supports multi-pump combinations.
6. Environmental Adaptability: Optional special versions support operation with water-based media (HFC), albeit with reduced operating parameters.
II. Functions of DR/DP/DFR/DRG Hydraulic Valves
These hydraulic valves are配套 control components (complementary control components) for the A4VSO pump, integrated either directly onto the pump or connected externally to perform the following functions:
1. DR Valve (Pressure Control):
• Function: Maintains constant system pressure by reducing pump displacement when the set pressure is reached, preventing further pressure increases.
• Applications: Suitable for scenarios requiring fixed operating pressure, such as hydraulic presses and injection molding machines.
2. DP Valve (Pressure Cut-Off Control):
• Function: Completely cuts off pump flow output when pressure reaches the set value, preventing system overpressure.
• Applications: Ideal for scenarios with stringent pressure safety requirements, such as metallurgical equipment and heavy machinery.
3. DFR Valve (Flow-Pressure Composite Control):
• Function: Combines flow and pressure control to dynamically adjust pump displacement based on system demands, achieving energy savings and efficient operation.
• Applications: Suitable for scenarios with frequent load variations, such as construction machinery and automated production lines.
4. DRG Valve (Load-Sensing Control):
• Function: Automatically adjusts pump displacement by sensing load pressure changes, matching system pressure to load demands and reducing energy waste.
• Applications: Ideal for scenarios requiring high-precision control, such as CNC machine tools and precision machining equipment.
III. Collaborative Operation of A4VSO Pumps and Hydraulic Valves
The combination of A4VSO pumps with DR/DP/DFR/DRG hydraulic valves enhances system performance through the following mechanisms:
1. Precise Control: Hydraulic valves adjust pump displacement in real-time based on system feedback signals (e.g., pressure, flow rate), ensuring output matches demand.
2. Energy Efficiency: Reduces unnecessary flow output, lowering energy consumption and system heat generation while extending component lifespan.
3. Enhanced Stability: Rapid response to load changes or pressure fluctuations maintains stable system operation.
4. Simplified System Design: Modular design reduces external piping and component count, lowering failure rates and simplifying maintenance.
IV. Typical Application Scenarios
1. Metallurgical Industry: Continuous casting machines and rolling mills require high pressure and precise control. The combination of A4VSO pumps and DRG valves enables load-sensing control, improving product quality.
2. Construction Machinery: Excavators and cranes must handle complex loads. The composite control function of DFR valves optimizes power output, enhancing operational efficiency.
3. Injection Molding: Rapid response and stable pressure are critical. DR valves maintain constant pressure during the injection process, reducing scrap rates.
4. Shipbuilding: Large gate drives demand high reliability and long service life. The durability of A4VSO pumps combined with the safety protection of DP valves ensures safe equipment operation.
