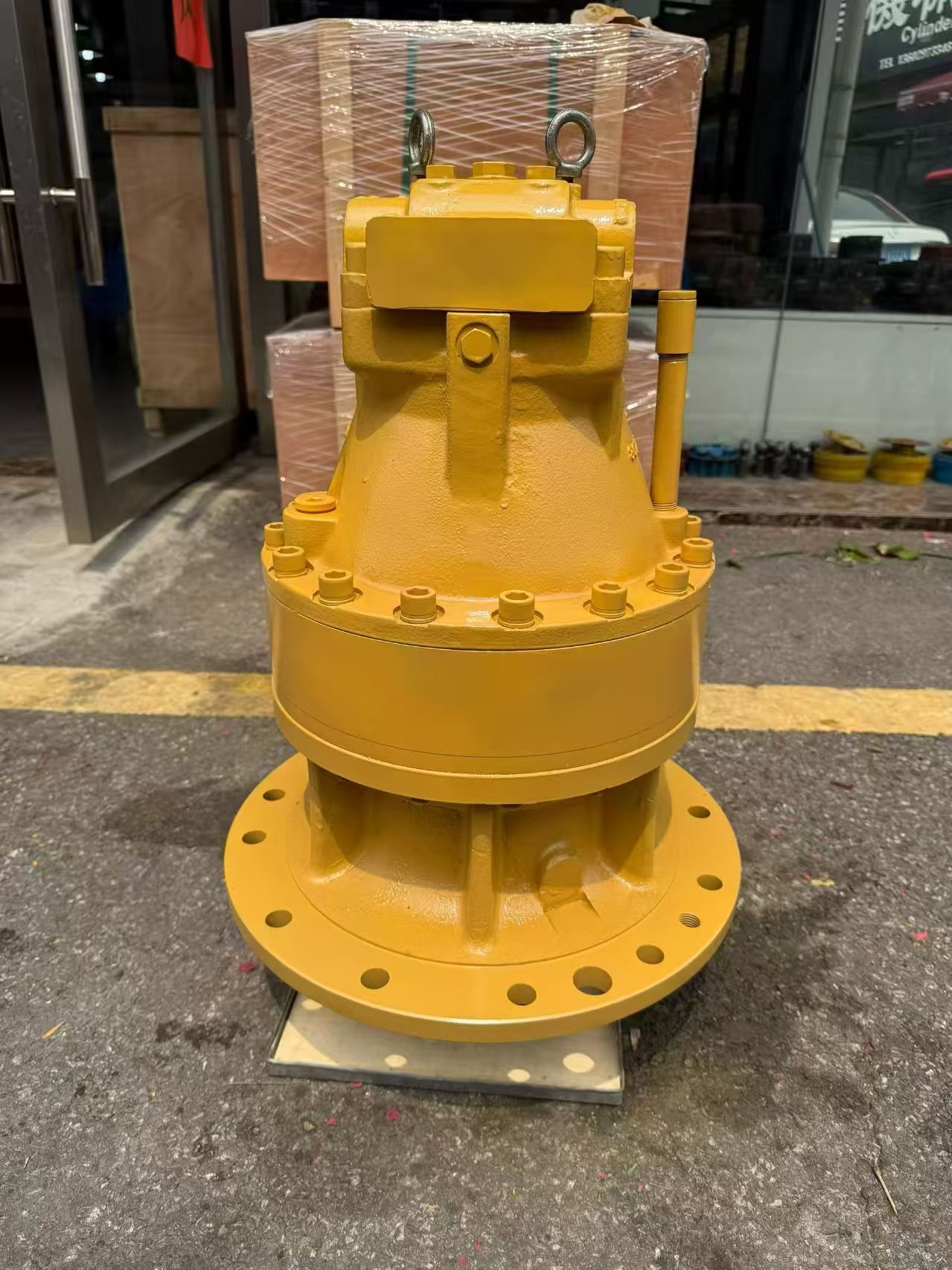

Caterpillar 320B/320A Swing Motor Assembly M2X120 - Detailed Overview
I. Product Overview
• Brand and Model: Caterpillar 320B/320A Swing Motor Assembly, Model M2X120.
• Application Area: This swing motor assembly is a crucial component of Caterpillar excavators, widely used in models such as the 320B/320A, providing power for the excavator's swing motion.
II. Technical Features
• Model Specifications: The M2X120 is a variable-displacement axial piston motor produced by Kawasaki, known for its compact structure, high efficiency, and long service life.
• Performance Parameters: The motor's displacement, pressure, speed, and other performance parameters are meticulously designed to meet the demands of Caterpillar excavators under various operating conditions. For instance, its displacement may be 120 cm³/rev (specific values may vary depending on the batch or configuration), ensuring stable swing power.
• Variable Control: The M2X120 motor employs variable control technology, automatically adjusting displacement based on load requirements to achieve efficient and energy-saving operation.
III. Structural Composition
• Motor Body: Includes key components such as the cylinder block, pistons, and port plate. These parts are made of high-quality materials, precision-machined, and specially treated for high wear and corrosion resistance.
• Reduction Gear Mechanism: Connected to the motor body, it reduces speed and increases torque to meet the swing motion requirements of the excavator.
• Braking Device: Ensures rapid braking when the excavator's swing motion stops, enhancing operational safety.
• Seals: High-quality sealing materials are used to prevent hydraulic oil leakage from the motor and prevent external contaminants from entering, extending the motor's service life.
IV. Application Examples
• Caterpillar 320B/320A Excavators: This swing motor assembly is a standard configuration for Caterpillar 320B/320A excavators, providing stable and reliable power support for their swing motions.
• Other Compatible Equipment: In addition to Caterpillar 320B/320A excavators, this swing motor assembly may also be used with other compatible equipment, depending on the model and configuration requirements.
V. Maintenance and Upkeep
• Regular Inspections: Regularly inspect the oil level, oil quality, and tightness of all connections in the swing motor assembly to ensure it is in good working condition.
• Hydraulic Oil Replacement: Replace the hydraulic oil according to the equipment manufacturer's requirements to prevent oil degradation from damaging the motor.
• Cleaning and Replacing Filters: Regularly clean or replace the hydraulic oil filters to prevent contaminants from entering the motor and affecting its performance.
• Professional Repairs: If any faults or abnormalities are detected in the swing motor assembly, promptly contact professional repair personnel for inspection and component replacement.
