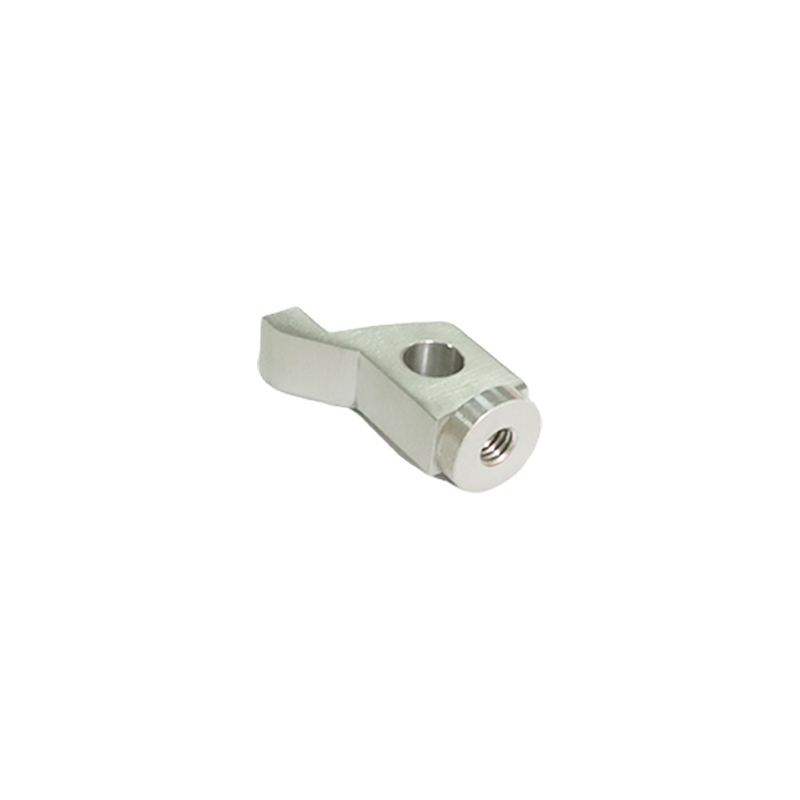

This part is an eccentric cam made of high strength aluminum alloy AL7075-T6 by CNC milling, with an overall L-shaped structure: one end is a cylindrical mounting base with internal screws, used to fasten screws to trees or supports; The other end extends in a flat arm-shaped cam body with an opening passing through the end. The center of the bore has a clear eccentricity with respect to the axis of the mounting base and forms a typical eccentric transmission mechanism.

Step 1: Precise cutting and removal of edges and angles of AL7075-T6 aluminum alloy raw materials, Start of high-precision CNC milling machine and completion of integrated milling and formation of complex structures such as eccentric cam profiles, Mounting openings and fixed screw openings in a single step via predefined digital programs. The whole process adopts the high precision CNC milling technology, to strictly control the eccentricity and tolerance of the contour curve at the micrometer level and ensure the accuracy of the transmission path of the chamber;

Step 2: After machining and forming, the part undergoes deburring and cleaning, followed by a natural anodizing. Due to electrochemical reactions, a dense, wear-resistant protective film is formed on the surface, which preserves the original metallic texture of the aluminum alloy and greatly improves the surface hardness, wear resistance and corrosion resistance. Based on our mature precision milling service system, we can ensure the precision of the contours and the dynamic balance performance of the parts in compliance with the requirements for long-term stable operation of automated equipment are constantly ensured.

As a professional manufacturer of precision components, Dongguan Shengpeng Precision Technology Co., Ltd. through a mature precision machining system and can provide a comprehensive precision milling service to meet customers' individual needs. We can adjust the eccentricity, contour curve and size specifications of the eccentric cam depending on the transmission parameters of customer equipment. At the same time, we support the replacement of materials (adapted to different metal materials that meet the standards for high strength) and customizing the surface treatment process (such as anodizing, sandblasting, passivation, etc. of various specifications) and meet customer's design requirements.
