20km Drone Infrared Sensor Distance Range Module RS422

Hello, are you interested in the JRT ETYS-20KX infrared sensor distance range module? The laser rangefinder module measuring range from 100m to 20000m, which is communicated with RS422 interface and a industrial long range electro-optical solutions for Anti-Drone/UAV, agriculture, night vision, thermal imager, security, urban management. How about your projects? I prefer to know more informations, please contact us.

20km LRF Module Parameters:

Module: LD120X-12km(b240905n24-13)

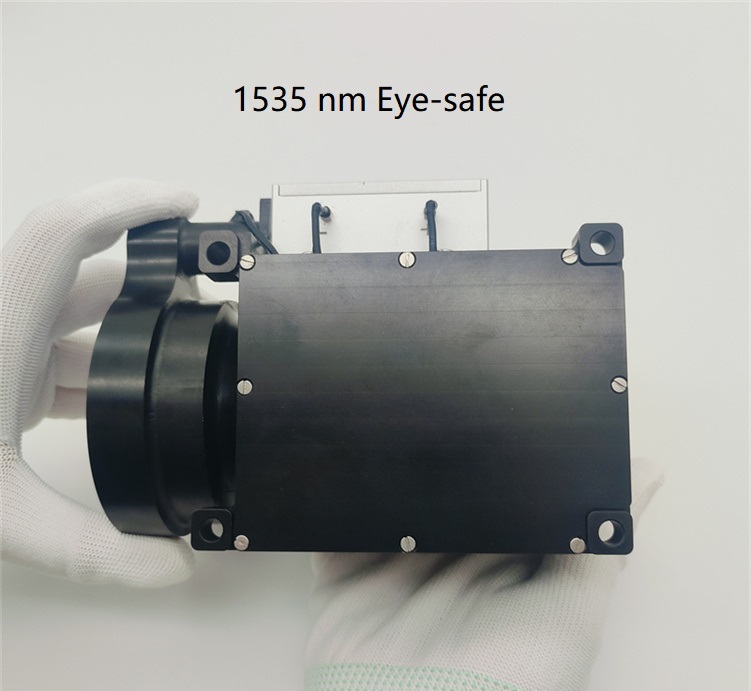

Operating wavelength: 1535nm

Ranging capability: 12000m(18000m Maximum range can be customized)

≥15000m Visibility ≥20km, 0.6 reflectivity Big Target

≥12000m Visibility ≥20km, 0.3 reflectivity for 2.3m × 2.3m NATO Target

Ranging capability (30% reflectivity, 10Km visibility)

≥6000m 1m × 1m Target

≥4500m 1.7×0.5m Person target

≥3500m 0.3×0.2m UAV target

Mini Range: ≤80m

Ranging accuracy: ≤2m

Ranging frequency: ≥5Hz

Accuracy rate: ≥98%

Divergence angle: ≤0.4mrad

Applications

This Industrial Laser range sensor can be widely used in anti-drones, drone pod, thermal camera, night vision, agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

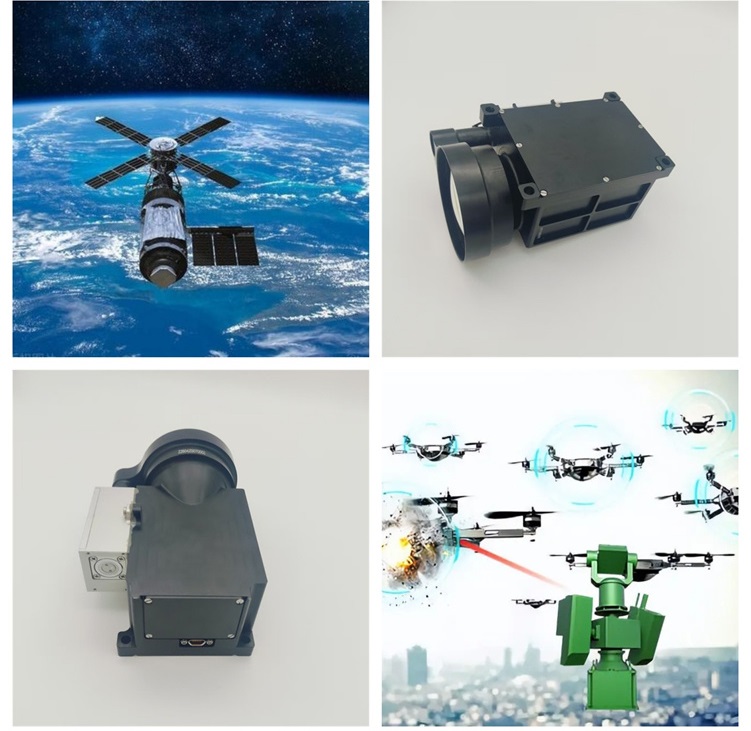

lidar drones Infrared Sensor Distance Range

Communication & Electrical

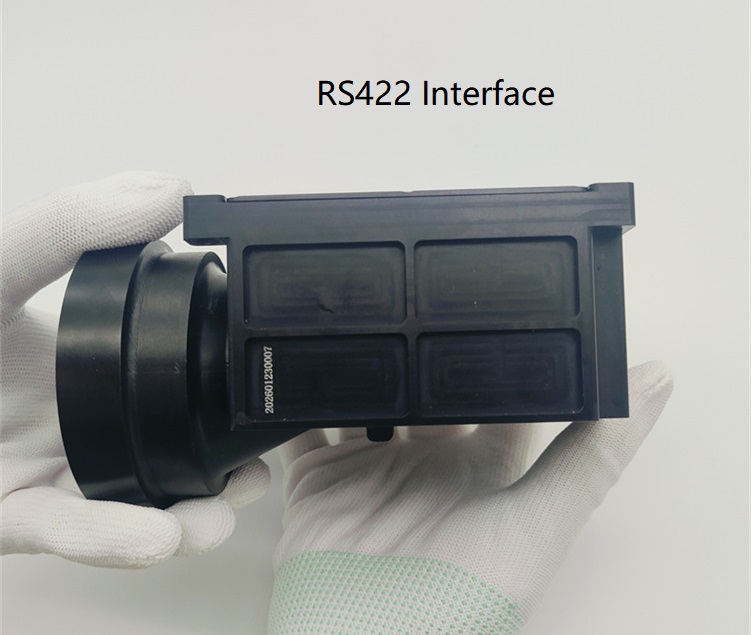

Communication interface: RS422

Electrical Interface: Connector Plug: J30J-9TJL

Connector Socket: J30J-9ZKP

Power Supply Voltage: 22 V – 34 V

Standby Power Consumption: ≤ 2.5 W

Average Power Consumption: ≤ 3.8 W at 1 Hz; 18 W at 5 Hz

Mechanical characteristics

Weight: ≤ 790 g

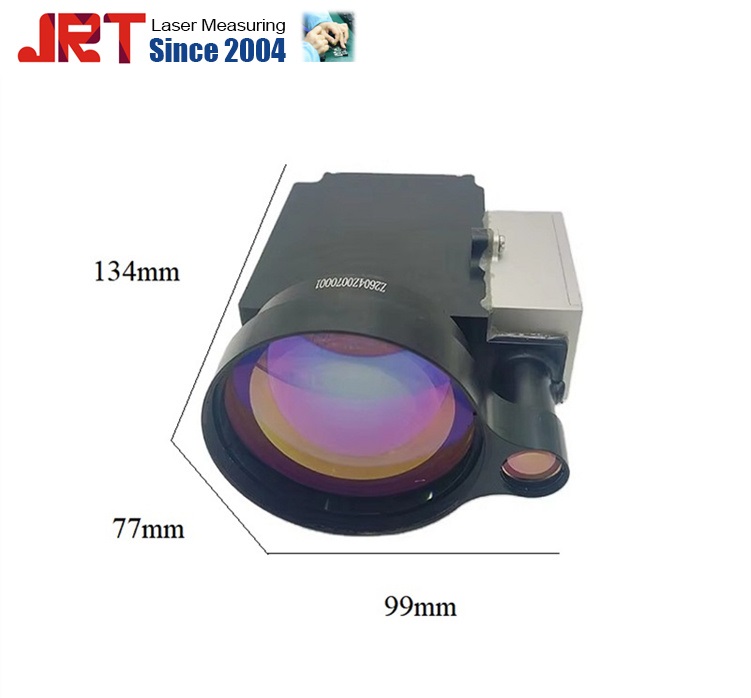

Dimensions: ≤ 134 mm × 99 mm × 77 mm

Environmental conditions:

Operating Temperature: -40°C – +60°C (Defense Grade)

Storage Temperature: -45°C – +65°C (Defense Grade)

Note: All performance indicators and interfaces can be customized according to requirements.

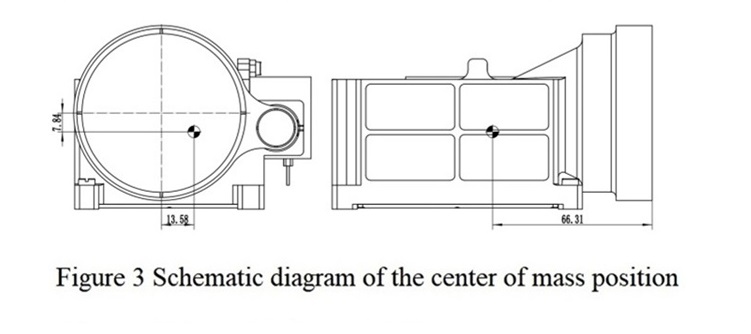

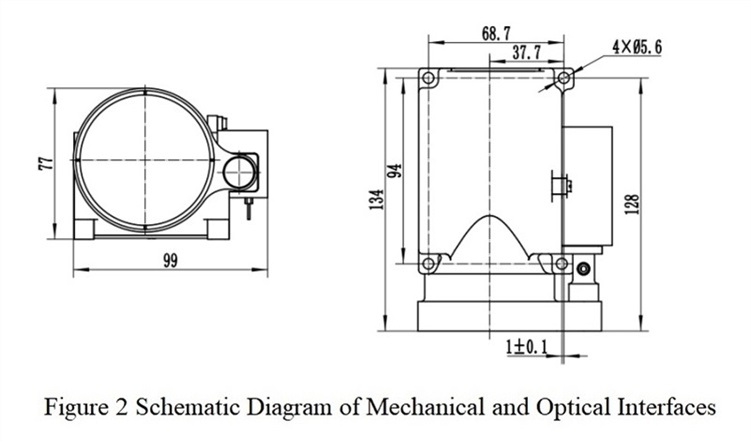

Machinical Dimensions

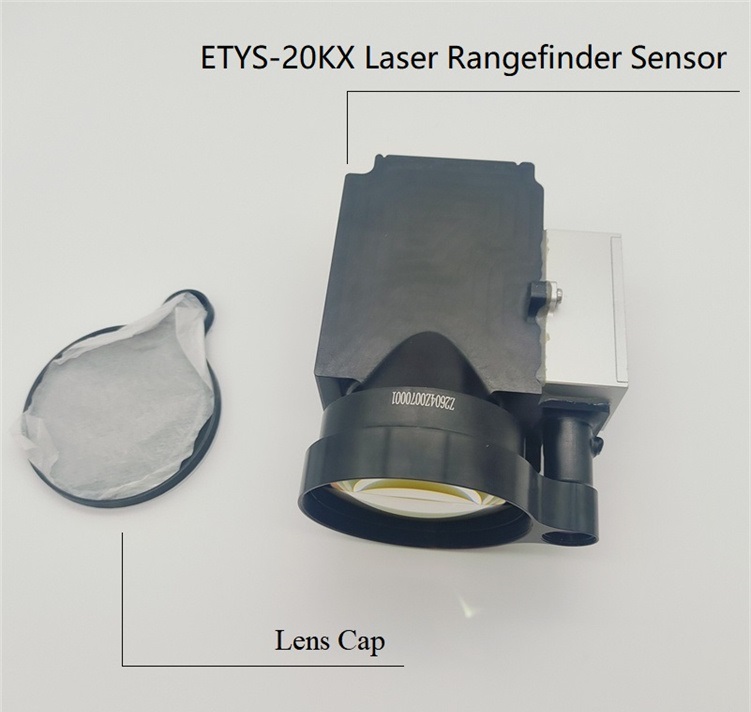

More Detailed Pictures

Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Outdoor Rangefinder Laser Module , Tof LiDAR Sensors.
