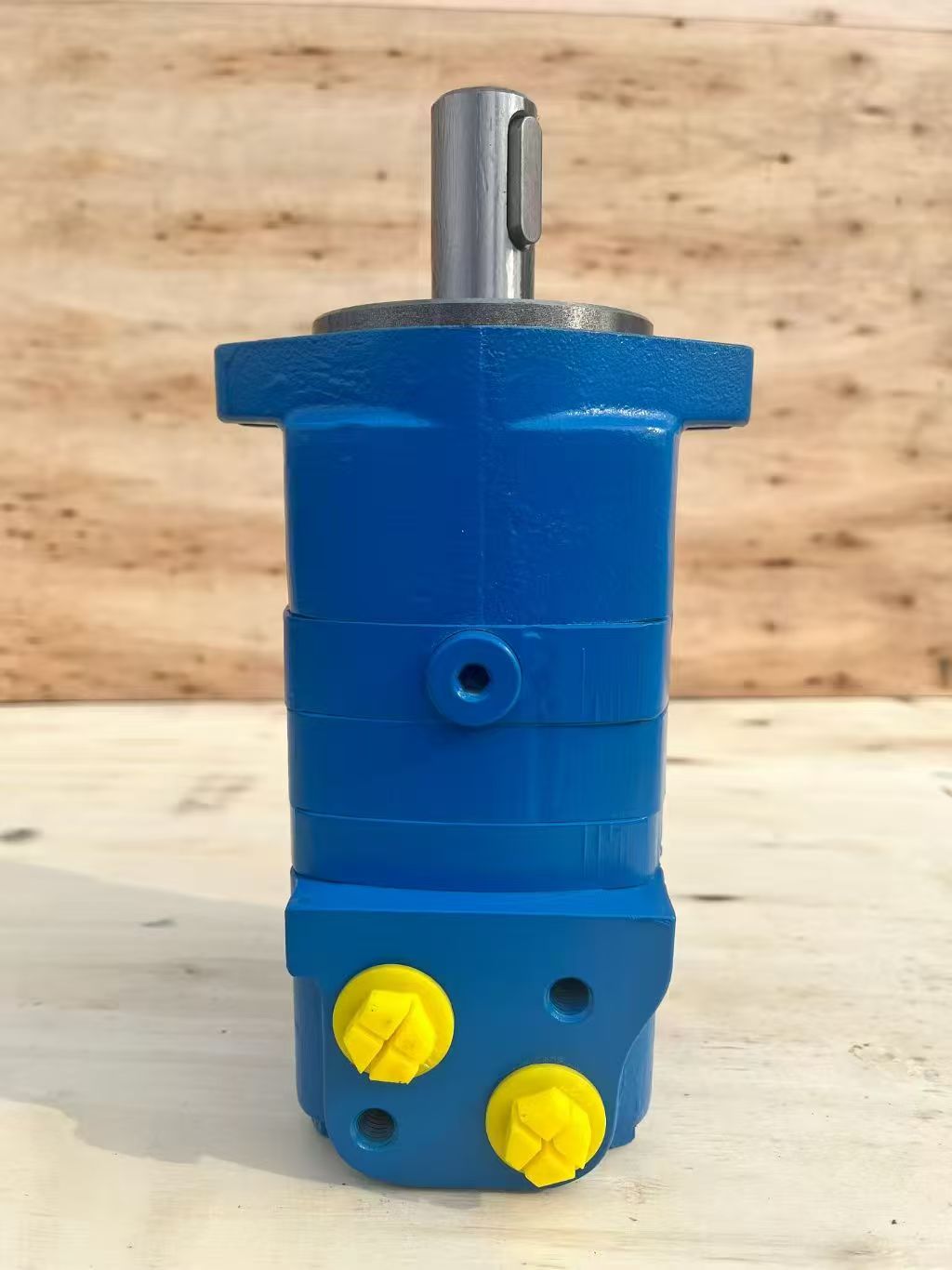

Hydraulic oil oribit motor
4 month ago
Product details
I. Product Overview
A hydraulic orbit motor is a type of hydraulic motor that employs an orbit gear (Geroler) design. It features a compact structure, high efficiency, and stable pressure. It is widely used in construction machinery, agricultural machinery, industrial vehicles, environmental protection equipment, and other fields, providing high torque and stable rotational power to meet the needs of various hydraulic systems.
II. Structural Features
1. Orbit Gear Design:
• Utilizes advanced orbit gear (Geroler) design, characterized by low starting pressure, smooth and reliable operation, and high efficiency.
• The gap between the gear and the housing is maintained stable through precision machining and special design, reducing internal leakage and enhancing volumetric efficiency.
2. Output Shaft and Bearings:
• The output shaft adopts tapered roller bearings capable of withstanding high axial and radial forces, suitable for high-pressure and high-torque applications.
• The bearing design is optimized to extend the motor's service life and reduce maintenance requirements.
3. Disc-Type Porting Design:
• Employs advanced disc-type porting design, automatically compensating for gap variations during operation to maintain high volumetric efficiency and longevity.
• The precise fit between the porting disc and the gear reduces pressure fluctuations and noise, enhancing operational smoothness.
4. Modular Design:
• The hydraulic orbit motor typically features a modular design, facilitating easy repair and replacement of parts, and minimizing downtime.
• Multiple mounting forms and oil port connection options are available for easy matching with different equipment.
III. Performance Advantages
1. High Efficiency:
• High volumetric efficiency reduces energy loss and lowers operating costs.
• Advanced orbit gear design and disc-type porting technology ensure the motor maintains high efficiency during long-term operation.
2. High Pressure and High Torque:
• Capable of withstanding high pressure and high torque, suitable for various heavy-duty applications.
• Provides stable output torque, maintaining constant operating torque across a wide speed range.
3. Low Noise Operation:
• Precision gear machining and bearing design reduce operational noise, enhancing workplace comfort.
• Some models incorporate low-noise manufacturing technologies, achieving noise levels below industry standards.
4. Longevity and Reliability:
• High-quality materials and precision manufacturing processes ensure durability and reliability.
• Advanced sealing design prevents hydraulic oil leakage, extending the motor's service life.
IV. Main Models and Technical Parameters (Examples)
The following are some typical hydraulic orbit motor models and their technical parameters:
【表格】
Model Displacement (cm³/rev) Maximum Speed (rpm) Maximum Torque (N·m) Maximum Pressure (MPa) Weight (kg)
BMT160 161.1 625 470 20 19.5
BMT200 201.4 625 590 20 20
BMT230 232.5 536 670 20 20.4
BMT250 251.8 500 730 20 20.5
BMT315 326.3 380 950 20 21
BMT400 410.9 305 1080 18 22
V. Application Fields
Hydraulic orbit motors are widely used in the following fields:
1. Construction Machinery: Excavators, loaders, road rollers, cranes, etc.
2. Agricultural Machinery: Tractors, harvesters, irrigation equipment, etc.
3. Industrial Vehicles: Forklifts, stackers, transport vehicles, etc.
4. Environmental Protection Equipment: Garbage compactors, sewage treatment equipment, etc.
5. Other Fields: Marine machinery, light industrial equipment, mining equipment, etc.
VI. Selection and Usage Considerations
1. Selection Criteria:
• Choose the appropriate motor model based on the equipment's load requirements, speed range, and pressure demands.
• Consider factors such as operating environment temperature, hydraulic oil type, and contamination level that may affect motor performance.
2. Installation and Commissioning:
• Ensure the motor's mounting surface is flat and clean to avoid stress concentration during installation.
• Follow the manufacturer's commissioning guidelines to adjust the motor and ensure all parameters meet requirements.
3. Maintenance and Care:
• Regularly check the cleanliness and level of the hydraulic oil, and replace contaminated oil promptly.
• Periodically inspect the motor's seals and bearings, and replace worn parts in a timely manner.
• Avoid operating the motor under overload or prolonged idle conditions to extend its service life.
