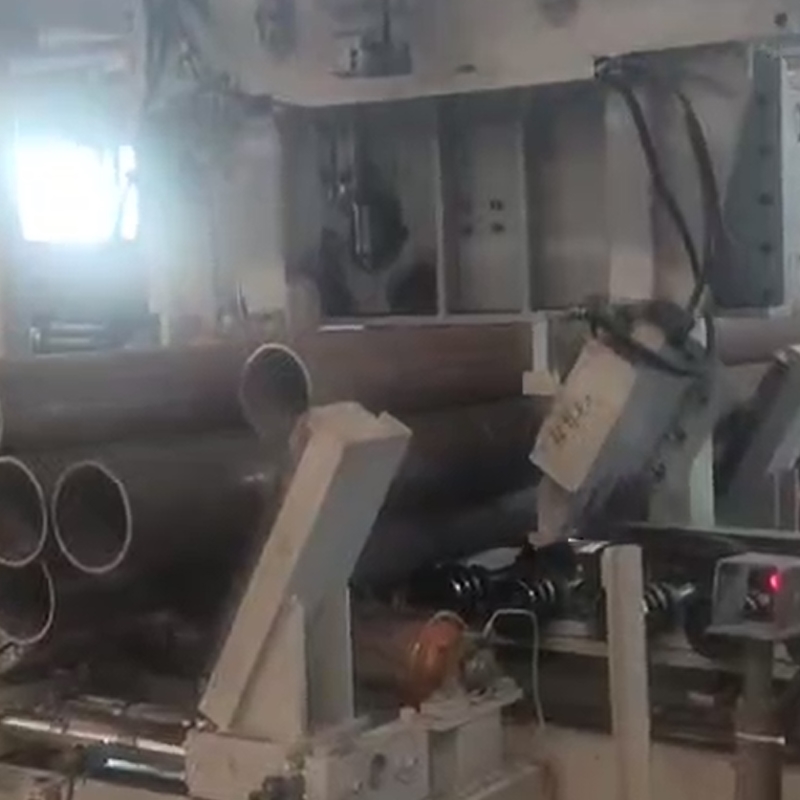

Fork-arm Type Steel Bar Strapping Machine for Pipes

The fork-arm type steel bar bundling machine is an automated equipment used for bundling steel pipes, steel billets, ingots, and beams into bundles. Its core feature lies in using the "fork-arm" structure to precisely wrap and bundle the steel bars with steel wires. It has two arms to surround the materials that are doing to bundle, compared to gantry type steel belt strapping machines, the fork-arm type strapping machine saves much manufacturing material, so the cost is lower than other types.

The core structure and working principle of fork-arm strapping machine

1. Key structure: The core of the equipment is the intermediate main shaft rotating twisting head and the movable long guide path. The steel wire is fed into the movable long guide path by the steel wire hydraulic straightening roller path and the steel wire feeding mechanism. After being precisely controlled in length by the front end length detection mechanism, it is cut by the steel bar cutting part. Finally, the fork arm structure delivers the steel wire to the twisting head, and the bundling is completed through rotation.

2. Main advantages: This design achieves a high degree of automation, significantly enhancing the efficiency of steel bar bundling, reducing the complexity of manual operations, and ensuring the firmness and consistency of the bundling.

Suitable applications

The actual binding material used by this equipment is usually wire or steel wire. Its main function is to automatically bind the pre-cut steel bars (rebar, round steel) or other rods and pipes into finished bundles that are suitable for transportation and storage.
