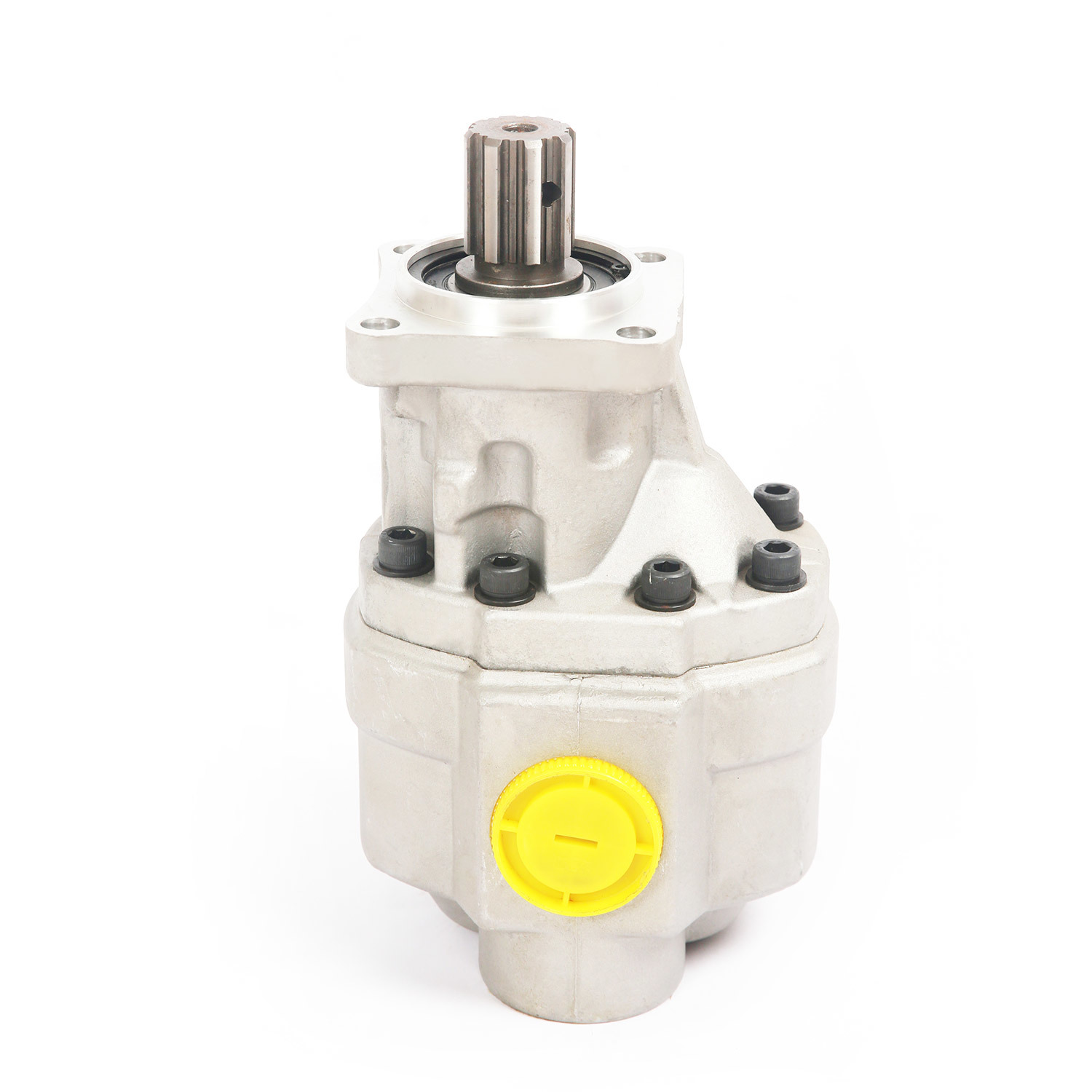

CB-100-BL Gear Oil Pump

4 month ago

4 0 

4 year

Product details

I. Product Overview

TheCB-100-BL Gear Oil Pumpbelongs to theCB-B seriesand is a low-pressure, medium-to-small displacement hydraulic oil pump. It converts mechanical energy into hydraulic energy through a pair of intermeshing gears and is widely used in hydraulic systems, textile machinery, hydraulic power supply for small-to-medium-sized machinery, and lubricating oil transfer. Additionally, it is suitable for oil transportation in oil depots and tanks.

------

II. Technical Specifications

• Model: CB-100-BL (or CB-B100, depending on the manufacturer)

• Flow Rate Range: 2.5–125 L/min (overall range for CB-B series; CB-100-BL typically approaches or equals 100 L/min)

• Rated Pressure: 2.5 MPa

• Power Range: 0.13–6.5 kW (overall range for CB-B series; specific power may vary based on design)

• Standard Rotational Speed: 1,450 rpm

• Applicable Media: Mineral oils with viscosity of 1–8°E (e.g., hydraulic oil, machine oil, fuel oil)

• Operating Temperature Range: 10°C–60°C

------

III. Structural Features

1. Three-Piece Design

• Composed of a pump body, front cover, and rear cover, ensuring ease of manufacturing, assembly, and high sealing reliability.

2. High-Quality Materials

• Pump Body/Covers: HT250 gray cast iron.

• Gears: Premium powder metallurgy.

• Shaft: 40Cr alloy steel with quenched treatment.

• Bearings: SF-1 oil-free lubricated bearings or needle bearings.

• Seals: Double-lip nitrile rubber for leak-free performance.

3. Spur or Helical Gear Options

• Helical gears reduce noise and enhance operational smoothness compared to spur gears.

------

IV. Performance Advantages

• Compact & Lightweight: Space-saving design with minimal weight for easy installation.

• Simple & Reliable: Few components ensure high reliability and long-term stable operation.

• Low Maintenance: Simple structure simplifies upkeep and reduces costs.

• Excellent Self-Priming: Rapid pressure buildup upon startup to meet hydraulic system demands.

• Wide Speed Range: Adaptable to diverse operating conditions.

------

V. Applications

1. Hydraulic Systems

• Powers machine tools, construction equipment, and other machinery requiring stable hydraulic energy.

2. Textile Machinery

• Provides lubrication and hydraulic transmission for textile equipment.

3. Oil Transfer

• Used in oil depots and tanks for efficient oil transportation.
