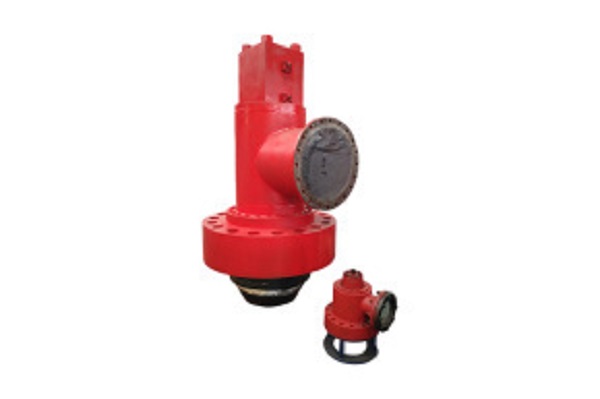

TCF Hydraulic Charge Valveis a new type of hydraulic charge valve independently developed by Shandong Taifeng Hydraulic. It is primarily used for high-flow charging or discharging of hydraulic fluid in the piston chambers of various hydraulic equipment within hydraulic transmission systems, thereby enhancing the equipment's idle stroke speed. Below is a detailed introduction to the TCF charge valve:
I. Working Principle
The TCF charge valve is designed as a normally closed valve, and its working principle is similar to that of a hydraulic-controlled check valve. Specifically:
• Flow Direction A→B: Allows free flow of hydraulic fluid from one end of the valve to the other.
• Flow Direction B→A: Is controllable. When there is control pressure at the control port X, the check valve opens, permitting hydraulic fluid to flow from B to A. When the control pressure at port X is relieved, the check valve closes, preventing hydraulic fluid from flowing from B to A.
II. Product Features
1. Low Opening Pressure: Excellent self-priming performance, enabling rapid opening and efficient charging/discharging of hydraulic fluid at low pressures.
2. Smooth Flow Path Design: Minimal flow resistance, reducing energy losses in the hydraulic system and improving system efficiency.
3. Low Control Pressure: Reliable resetting, ensuring the valve can reset reliably under low control pressures.
4. Multiple Variations and Installation Connection Options: Convenient to use, allowing selection of appropriate connection methods based on different application scenarios and requirements.
5. Compact Structure: Small overall dimensions, saving installation space.
III. Application Scenarios
The TCF charge valve is widely used in forging machinery, high-speed punch presses, presses, injection molding machines, and other machines. In these devices, the TCF charge valve plays a crucial role in rapidly charging and discharging hydraulic fluid, enhancing equipment operational efficiency. Particularly during the rapid advancement of large presses, where the oil cylinder requires substantial hydraulic fluid replenishment, the TCF charge valve automatically draws fluid from the oil tank. Conversely, during slow advancement and pressurization, it prevents fluid from flowing back from the oil cylinder to the oil tank.
IV. Technical Parameters (Examples)
• Nominal Diameter: DG40, DG50, DG63, DG80, DG100, etc., selectable based on actual needs.
• Pressure Rating: H-350bar, meeting the demands of high-pressure hydraulic systems.
• Connection Method: Plate-type connection (B), installed on the cylinder bottom with a housing that connects via pipes to the charge cylinder.
V. Installation and Usage
• Installation Requirements: Vertical installation is recommended to ensure normal valve operation and extend service life.
• Usage Precautions:
• If users have specific requirements regarding the valve's function, parameters, installation connection method, or dimensions, special orders can be placed.
• It is recommended to use 10.9-grade high-strength standard bolts for fixing screws. If fine-thread bolts are required, please specify the pitch.
