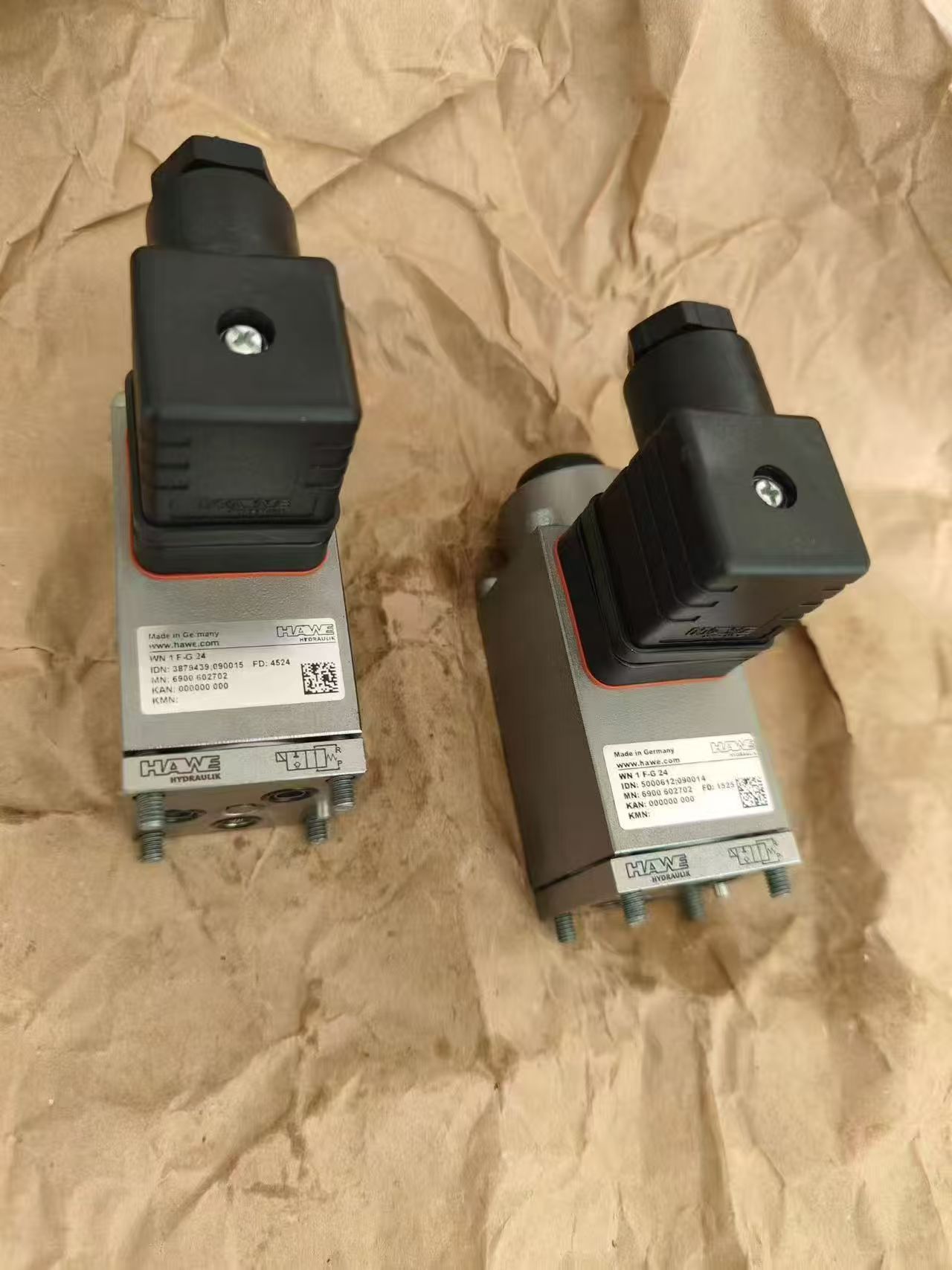

HAWE IF-G24 Hydraulic Solenoid Valve
4 month ago
Product details
1. Product Overview
TheHAWE IF-G24 hydraulic solenoid valveis a high-performance hydraulic control component manufactured by HAWE Hydraulik (Germany). As a type of solenoid-operated directional control valve, it utilizes electromagnetic induction principles to drive the valve spool via electromagnetic force, enabling precise control over fluid flow direction, pressure, and flow rate in hydraulic systems. Its compact design and superior sealing performance make it suitable for high-pressure, high-flow hydraulic applications, widely used in construction machinery, machine tools, marine equipment, hydraulic tools, and other fields.
------
2. Key Features
1. High-Pressure Performance
• Maximum operating pressure:Up to 700 bar, meeting extreme working conditions.
• All-steel valve body construction ensures resistance to high pressure and impact for long-term reliability.
2. Zero-Leakage Sealing
• Adopts a steel ball shut-off valve structure with spring-loaded design, achievingzero internal leakageto prevent system contamination.
• External leakage prevention is robust, with specialized sealing materials for valve stem packing and connections.
3. Fast Response & Smooth Switching
• Direct electromagnetic force drives the valve spool, enabling short response times and smooth, shock-free switching.
• Supports high-frequency operation (up to12,000 cycles/hour), suitable for automated production lines.
4. Modular Design
• Offers multiple connection options (e.g., threaded, flanged) and port sizes (e.g., G1/4, G3/8), supporting customized installations.
• Integrates seamlessly with other HAWE hydraulic components (e.g., pumps, relief valves) for simplified system design.
5. Environmental Resistance
• Wide operating temperature range (-10°C to +80°C) for harsh environments.
• Protection class up toIP65(for select models), ensuring dust and water resistance for extended service life.
------
3. Technical Specifications
• Model Example: IF-G24 (specific models may vary, e.g., GR2-1HFG-3/8-G24).
• Voltage Options: DC24V (standard), with customizable AC voltage options.
• Port Sizes: Ranges from G1/4 to G1 (model-dependent).
• Flow Characteristics: Maximum flow depends on port size and pressure (refer to product manuals).
• Mounting Methods: Subplate or manifold mounting, supporting vertical/horizontal installation.
• Materials:
• Valve body: Cast iron or stainless steel.
• Seals: Nitrile rubber (NBR) or fluororubber (FKM).
------
4. Applications
1. Construction Machinery
• Controls hydraulic cylinders in excavators and cranes for precise movement and load holding.
• Example: In hydraulic excavators, the IF-G24 regulates boom cylinder extension/retraction for smooth operation.
2. Industrial Automation
• Integrated into CNC machines and robots for rapid clamping/releasing of hydraulic fixtures.
• Example: On automotive assembly lines, it controls hydraulic clamps for efficient part handling.
3. Hydraulic Tools
• Powers hydraulic wrenches, riveters, and other tools with high-pressure oil supply and directional control.
• Example: In wind turbine maintenance, it drives hydraulic torque wrenches for accurate bolt tightening.
4. Energy & Environmental Protection
• Used in hydraulic systems for wind/hydro power equipment for pitch control or valve actuation.
• Example: In wind turbines, it controls hydraulic braking systems for safety.
------
5. Selection & Installation Guidelines
1. Parameter Matching
• Select port size and voltage based on system pressure and flow requirements.
• Ensure compatibility between media type (e.g., mineral oil, biodegradable fluid) and seal materials.
2. Installation Requirements
• Align valve arrow with fluid flow direction to avoid reverse pressure differentials.
• For vertical installations, position the solenoid upward to prevent debris accumulation.
• Clean pipelines before installation and install filters (recommended: ≤25μm).
3. Maintenance & Troubleshooting
• Regularly inspect seals for wear (replacement interval: 1–2 years, depending on conditions).
• Common issues and solutions:
• No action: Check power supply voltage, coil resistance, or spool jamming.
• Leakage: Replace seals or inspect valve body for cracks.
• Excessive noise: Verify system pressure compliance or fluid cleanliness.
------
6. Comparison with Competitors
【表格】
Feature HAWE IF-G24 Standard Solenoid Valves
Operating Pressure Up to 700 bar Typically ≤350 bar
Sealing Zero internal leakage Possible minor internal leaks
Response Time Fast (<50 ms) Slower (>100 ms)
Lifespan Long (>10 million cycles) Short (<5 million cycles)
Price Higher (premium segment) Lower (budget-friendly)
------
7. Conclusion
TheHAWE IF-G24 hydraulic solenoid valvestands out for itshigh-pressure, zero-leakage, and rapid-responsecapabilities, making it ideal for premium hydraulic systems. Despite its higher cost, its long lifespan and low maintenance requirements offer long-term cost savings. Proper selection, installation, and maintenance are critical to maximizing performance.
