2.00mm Female Header Dual Row SMT Type Connector

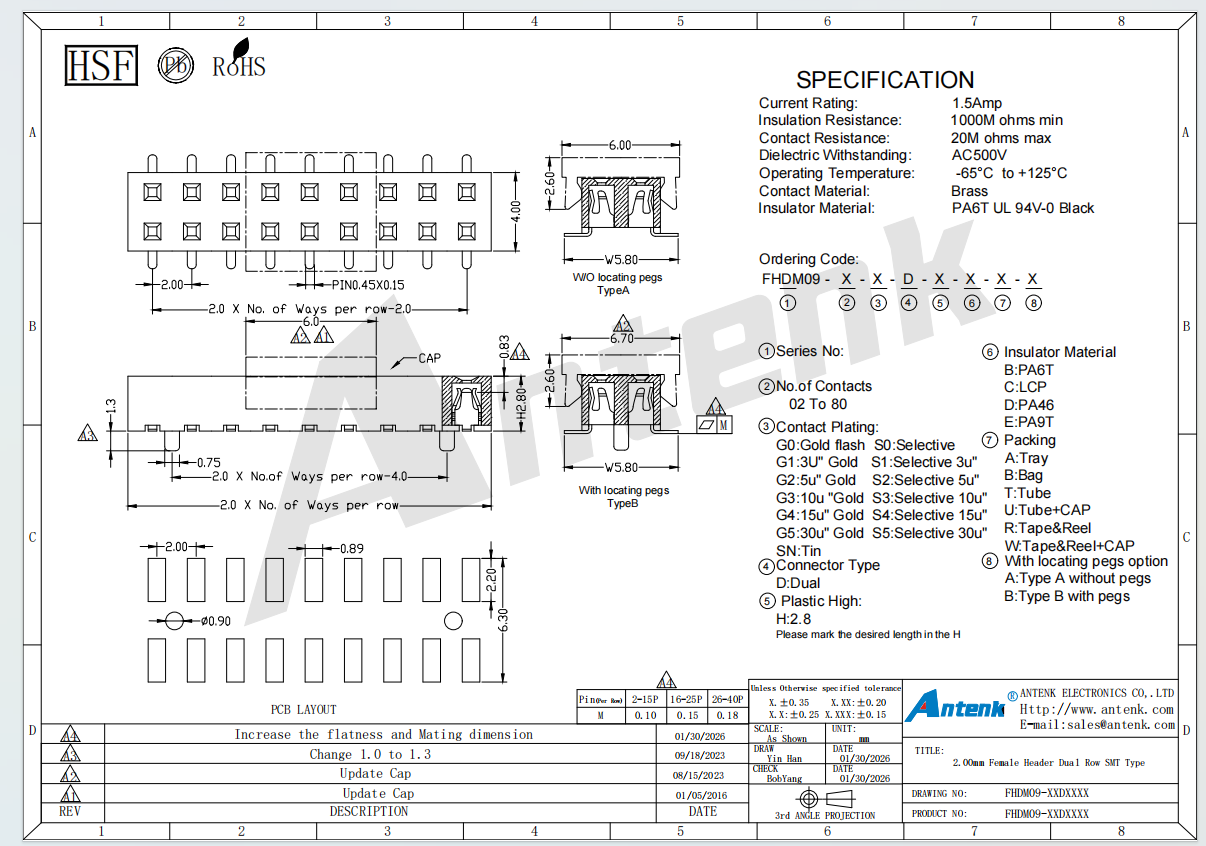

Developed and manufactured by Antenk Electronics, this 2.00mm dual row SMT female header is engineered to deliver stable electrical interconnection between printed circuit boards and wiring harnesses through surface mount soldering technology. This connector supports 2 to 80 contact positions and offers two structural options including type A without locating pegs and type B with locating pegs to prevent mounting deviation during SMT processing. It features a rated current of 1.5 Amp, minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and AC500V dielectric withstanding voltage, operating reliably from minus 65 degrees Celsius to 125 degrees Celsius. The conductive contact is made of high-purity brass with multiple plating choices ranging from flash gold, selective gold with different thicknesses to pure tin, while the insulating housing adopts UL94-V0 grade black PA6T material for excellent flame retardancy and insulation performance. Users need to follow the standard PCB layout dimension parameters to complete reflow soldering for precise installation. For safe service life, operators must not exceed the rated current and voltage, and avoid long-term use under ultra-high or ultra-low temperature environments to prevent contact oxidation and insulation aging.



Compared with competitors’ similar products, Antenk boasts full industrial chain advantages supported by in-house mold development and standardized mass production. Established in 2007, our company operates a 10000 square meter production base in Dongguan with over 250 professional staff members. We deploy imported precision stamping machines, plastic injection equipment and automated assembly machines, owning more than 250 sets of plastic connector molds and 180 sets of precision hardware terminal molds to achieve full self-production from terminal stamping, plastic injection molding to finished assembly and performance testing. Our self-owned brand ANTENK has won the title of Guangdong Famous Trademark. All products comply with EU RoHS and REACH environmental standards and most items obtain UL certification numbered E472792. Our factory has passed ISO9001, ISO14001 and IATF16949 automotive quality management certifications. Holding independent import and export rights, we can issue 13 percent value added tax invoices and export over 70 percent of finished goods to global markets, ensuring stable product quality, flexible customization and reliable after-sales support for worldwide clients.



This dual row female header undergoes strict standardized manufacturing processes covering precision mold design, brass terminal stamping, electroplating surface treatment, high temperature PA6T injection molding, automatic terminal and housing assembly, electrical performance inspection, environmental aging test and final packaging. Multiple packaging options including tray, bag, tube, tape and reel are available to match automated production requirements of different manufacturers. Widely applied in liquid crystal displays, digital cameras, industrial control equipment, digital home appliances, communication devices, automotive electronics, precision instruments and computer peripheral products, this connector has gained wide recognition across domestic major electronic cities and overseas markets in Europe, Southeast Asia, North America and South America. Antenk provides flexible customization on pin count, plating type, insulating material and structural design to satisfy diverse connection demands in consumer electronics, automotive and industrial fields, delivering durable and cost-effective connection solutions for global electronic manufacturing enterprises.
