5.08 MM 90" Wafer Connector Series

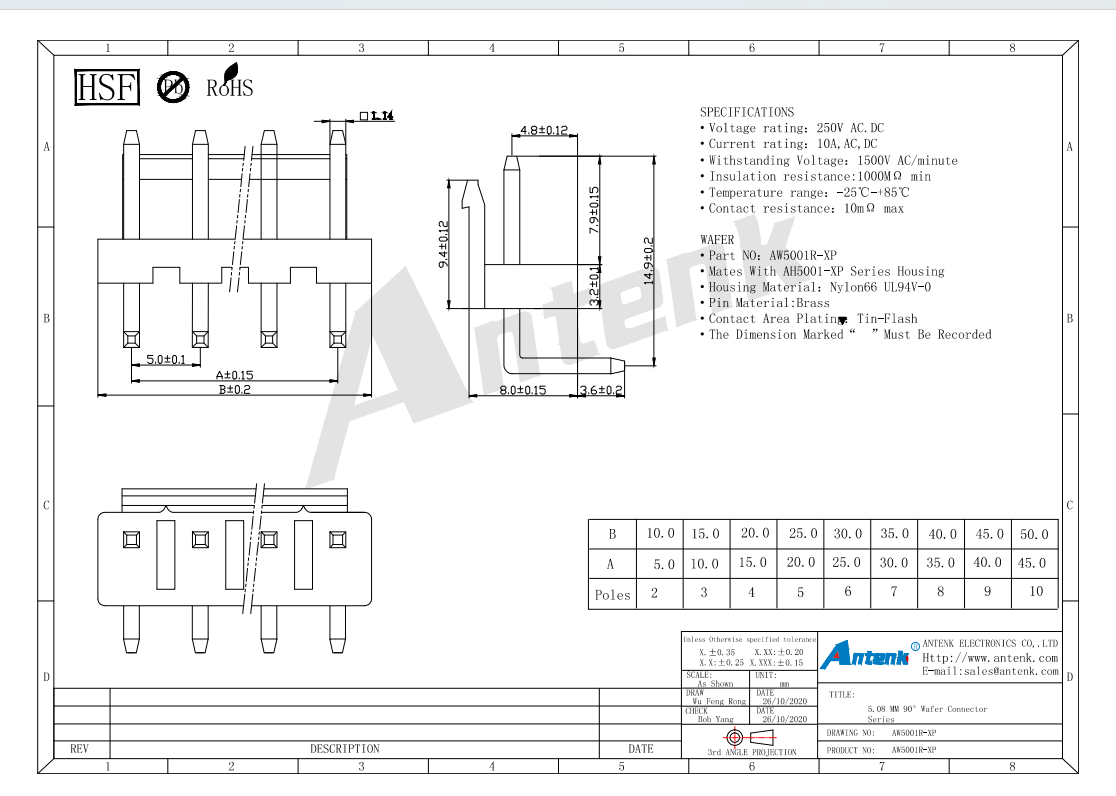

Manufactured by Antenk Electronics, this 5.08mm 90 degree wafer connector is designed for reliable wire to board electrical connection, enabling stable signal and power transmission between wiring harnesses and printed circuit boards. This series supports 2 to 10 poles with precise dimensional tolerance to guarantee seamless mating with matching housing series, rated for 250V AC DC voltage and 10A current. It withstands 1500V AC voltage per minute, features minimum 1000MΩ insulation resistance and maximum 10mΩ contact resistance, working steadily within the temperature range from minus 25 degrees Celsius to 85 degrees Celsius. The insulating housing adopts UL94V0 grade Nylon66 material while conductive pins are made of brass with tin flash plating to enhance oxidation resistance and electrical conductivity. Users need to complete wire crimping and insert terminals into the housing before vertically soldering pins onto PCB following standard dimensional drawings. To extend service life, avoid operating beyond rated voltage and current, and never deploy the connector in damp or corrosive environments to prevent short circuit and contact failure.



Antenk holds outstanding competitive strengths over peer manufacturers relying on full in-house industrial chain layout and strict standardized quality management. Founded in 2007, our company runs a 10000 square meter production base in Dongguan with over 250 professional employees. We are equipped with imported high speed precision punching machines, plastic injection molding equipment and automatic assembly devices, owning more than 250 sets of plastic connector molds and 180 sets of precision hardware terminal molds to independently finish all production procedures. Our proprietary brand ANTENK is certified as Guangdong Famous Trademark. All products comply with EU RoHS and REACH environmental standards and most items pass UL certification with code E472792. Our factory has obtained ISO9001, ISO14001 and IATF16949 automotive quality management system certifications. We own independent import and export rights and can issue 13 percent VAT invoices, with over 70 percent products exported globally to provide reliable customized service and stable delivery for worldwide purchasers.



This right angle wafer connector undergoes rigorous production processes including independent precision mold development, brass terminal stamping, tin flash electroplating, high temperature Nylon66 injection molding, automatic terminal assembly, electrical performance testing, insulation detection and standardized packaging. Available with multiple pole specifications from 2P to 10P, the connector is widely adopted in liquid crystal displays, digital cameras, industrial control equipment, digital home appliances, communication devices, automotive electronics, precision instruments and computer peripheral products. Our products have gained wide market recognition across major domestic electronic hubs and numerous overseas regions covering Europe, Southeast Asia, North America and South America. Antenk can customize pole number, plating type and structural parameters to meet diverse wire to board connection demands in consumer, automotive and industrial sectors, delivering cost effective and durable connection solutions for global electronic manufacturing enterprises.
