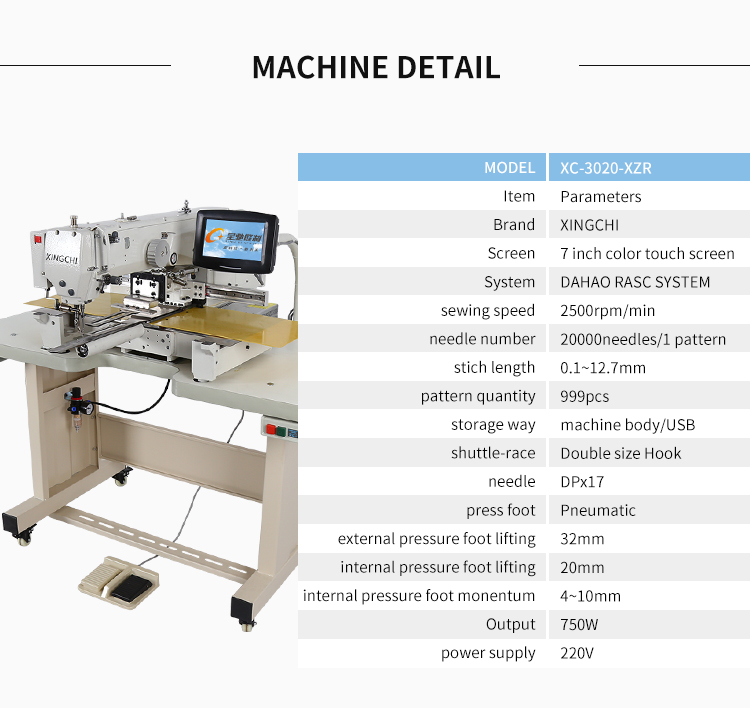

Small-Mouth Cylinder-Arm Pattern Sewing Machine – Model XC-3020-XZR
When it comes to sewing tubular or cylindrical workpieces—such as glove cuffs, hat brims, bag handles, pet collars, or shoe uppers—the biggest challenge is always the limited workspace inside the arm. Standard flatbed machines simply cannot reach into these narrow openings, forcing operators to fold, stretch, or even manually rotate the material mid-stitch. This not only slows down production but also compromises stitch consistency and causes unnecessary wrist fatigue. That is exactly why we developed the XC-3020-XZR Small-Mouth Computerized Pattern Sewing Machine.

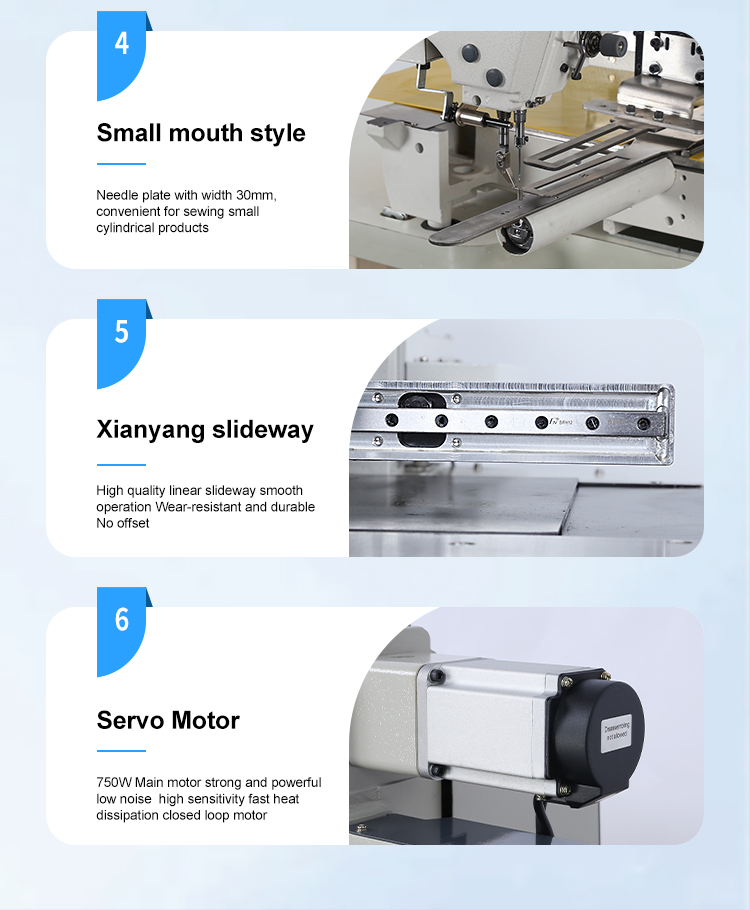

At the heart of this machine lies a remarkably slim 30mm needle plate—a full inch narrower than most conventional cylinder-arm models. This slim profile allows the machine head to slide effortlessly into the tightest tubular products, giving you complete control over circular stitching paths without dragging or distorting the fabric. But we did not stop at small-diameter capability. The XC-3020-XZR is designed with true versatility in mind: you can swap the narrow plate for a larger alternative in minutes, expanding the effective sewing area to a generous 300x160mm. This means the same unit that handles delicate glove logos can also sew heavy-duty patches onto backpacks, leather handbags, or even thick canvas pet beds. One machine, two distinct working modes—adaptability that few competitors can match.

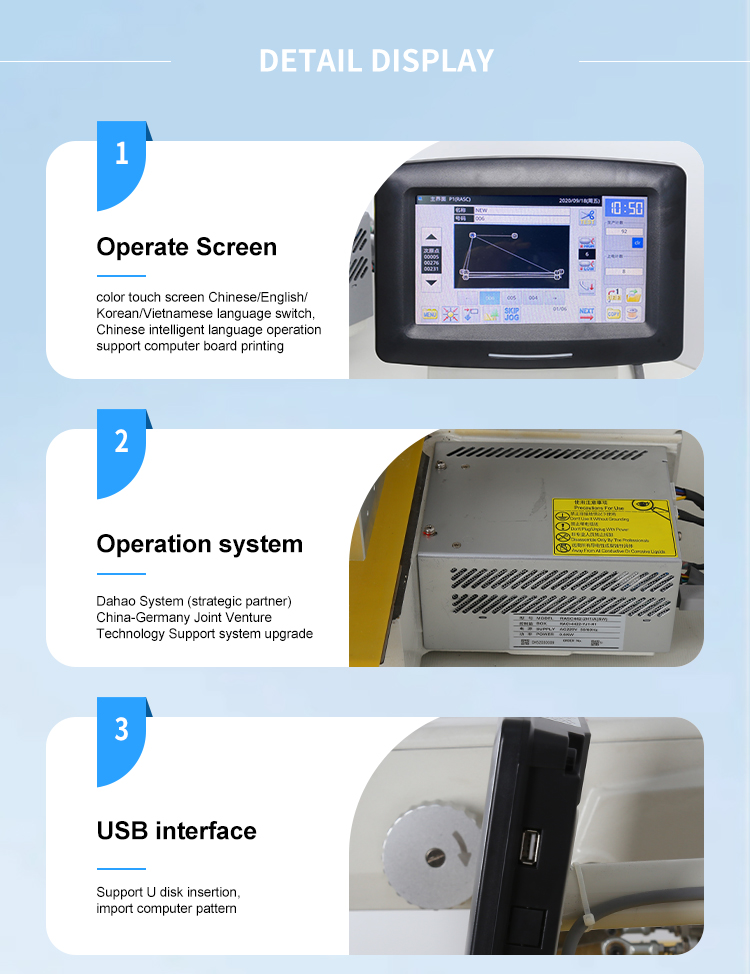

Efficiency is where this model truly shines. Equipped with a Dahao intelligent control system featuring a full Chinese-language touch interface, the machine eliminates the steep learning curve often associated with industrial programmers. Whether you are a seasoned technician or a shop-floor operator with basic computer skills, you can create, modify, and store stitch patterns directly on the screen. For even greater convenience, the built-in USB port accepts standard flash drives—simply design your pattern on a PC, save it to the drive, plug it in, and the machine reads it instantly. Pattern switching takes seconds, not hours, dramatically reducing downtime between order changes.
Under the hood, a 750W closed-loop main motor delivers the perfect balance of raw power and refined control. Closed-loop technology means the motor constantly monitors its own speed and torque, adjusting in real-time to maintain consistent stitch length even when sewing through thick seams or multiple fabric layers. At the same time, the motor runs remarkably cool and quiet, with superior heat dissipation that ensures stable performance over 10-hour continuous work shifts. To put that durability into perspective: during our real-world trials stitching standard glove trademarks, the XC-3020-XZR consistently produced up to 7,200 high-quality labels per 10-hour day—a throughput figure that has been independently verified by multiple customers across different industries.
