Product details

H20 Timber Beam for Concrete Formwork Systems

Lightweight · High Strength · Dimensionally Stable · Reusable

Product Overview

H20 Timber Beam is an engineered wooden I-beam designed for modern concrete formwork systems. Manufactured with premium solid pine flanges and a high-strength plywood web, it offers excellent bending resistance while maintaining a lightweight structure. The beam serves as the primary and secondary support member for concrete formwork, ensuring stable load transfer and high-quality concrete finishes.

Widely used in residential, commercial and infrastructure construction projects, H20 Timber Beams provide reliable support for wall, slab, column and beam formwork systems. Their standardized dimensions and outstanding durability make them an economical choice for repeated use on construction sites.

Construction

Top Flange: Premium Solid Pine Timber
Web: High-strength Multi-layer Plywood
Bottom Flange: Premium Solid Pine Timber
Industrial adhesive bonding for maximum structural integrity
Protective coating for improved moisture and wear resistance
Optional plastic end caps for extended service life

Key Features

Lightweight & High Strength

The engineered I-beam design reduces weight by approximately 30–50% compared with traditional timber members while providing excellent bending performance for concrete formwork applications.

Excellent Dimensional Stability

Manufactured under strict quality control, every beam offers consistent dimensions, straightness and reliable structural performance throughout repeated construction cycles.

Long Service Life

Water-resistant surface treatment and replaceable plastic end caps help protect the beam from damage during transportation and repeated job-site use.

Wide Compatibility

Compatible with various concrete formwork systems including wall, slab, beam and column formwork, as well as Ringlock and Cuplock scaffolding systems.

Advantages

Excellent load-bearing performance
Lightweight for easy handling
High bending strength
Stable dimensions with minimal deformation
Smooth installation and dismantling
Long service life
Reduced labor costs
Reusable and economical
Compatible with 3 Ply Yellow Shuttering Panels
Available in customized lengths

Technical Specifications

Product Name	H20 Timber Beam
Top & Bottom Flanges	Premium Pine Timber
Web Material	Multi-layer Plywood
Beam Height	200 mm
Flange Width	80 mm

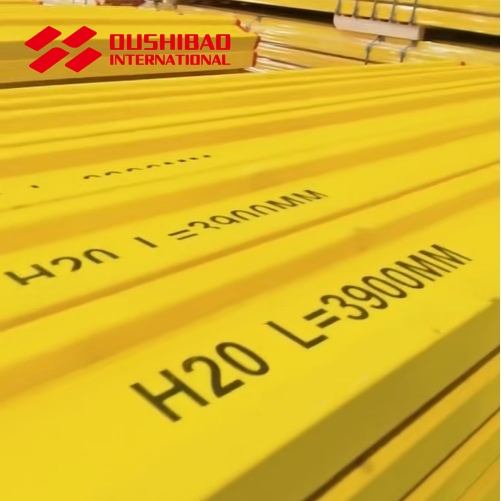

Standard Lengths	3900 / 4900 / 5900 mm
Custom Length	Available Upon Request

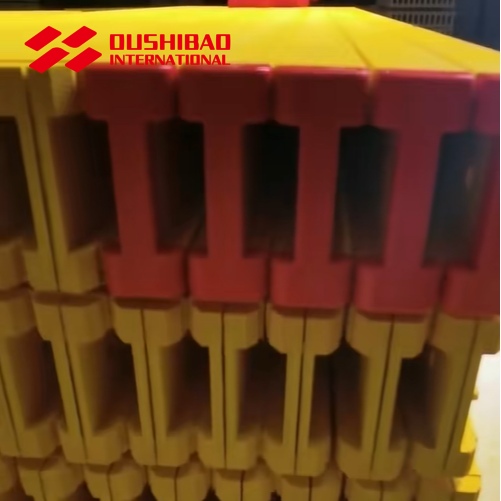

End Protection	Plastic End Caps (Optional)
Surface Treatment	Water-resistant Protective Coating
Application	Concrete Formwork Support Systems
Payment Terms	T/T 30% Deposit, Balance Before Shipment 100% L/C at Sight

Applications

H20 Timber Beams are widely used as primary and secondary support members in concrete formwork systems. They efficiently transfer the weight of fresh concrete and construction loads to the supporting structure, ensuring excellent stability and high-quality concrete finishes.

Typical Applications

Wall Formwork
Column Formwork
Beam Formwork
Slab Formwork
Bridge Construction
Tunnel Engineering
High-rise Buildings
Infrastructure Projects

Project Benefits

Excellent bending performance
Fast installation
Reduced labor intensity
Accurate concrete alignment
Lower project cost
Long-term reuse
Reliable structural support

Compatible with 3 Ply Yellow Shuttering Panels

Our H20 Timber Beams are designed to work perfectly with 3 Ply Yellow Shuttering Plywood Panels, creating a complete concrete formwork system widely used in modern construction projects.

The H20 Timber Beam serves as the structural support, while the 3 Ply Yellow Panel provides the concrete contact surface. Together they deliver outstanding load distribution, construction efficiency and excellent concrete finishes.

Complete formwork solution from one supplier
Excellent structural stability
Easy assembly and dismantling
High reuse rate
Reduced construction costs
Suitable for wall, slab, beam and column systems

We also manufacture 3 Ply Yellow Shuttering Panels, allowing customers to source the entire formwork system from OUSHIBAO.

Installation & Storage Recommendations

Use self-drilling screws or pre-drilled holes when fastening to avoid flange cracking.
H20 Timber Beams are designed primarily for vertical bending loads. Proper lateral bracing should always be provided during installation.
Avoid long-term exposure to standing water. Store beams in a dry, covered area whenever possible.
Inspect plastic end caps regularly and replace damaged caps to extend beam service life.
Do not use damaged or severely worn beams in structural applications.

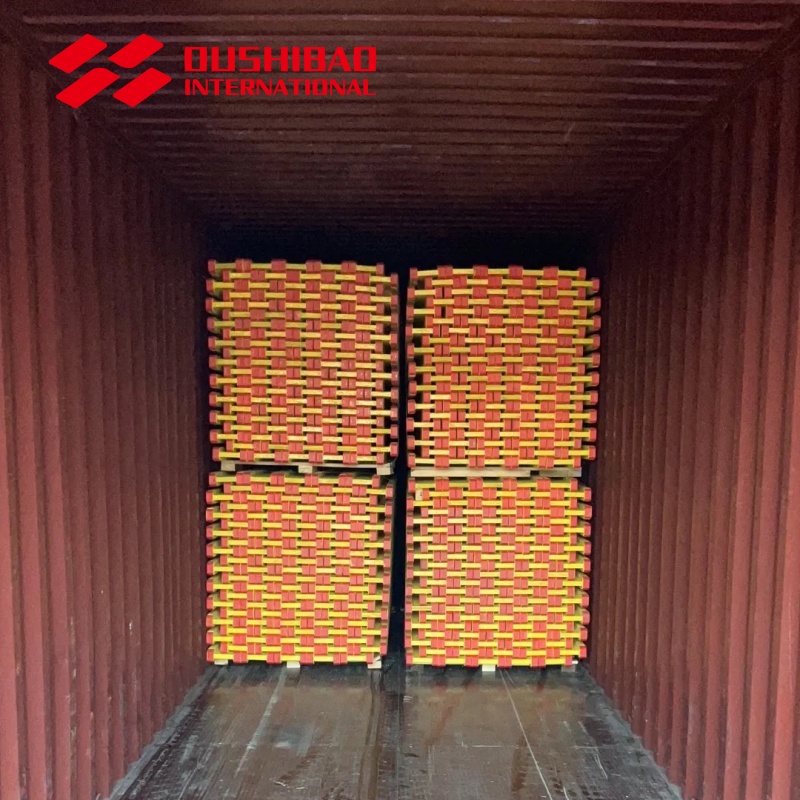

Packaging & Delivery

We offer both loose loading and palletized packaging according to customer requirements. Export packaging is designed to protect the beams during international transportation and ensure safe delivery.

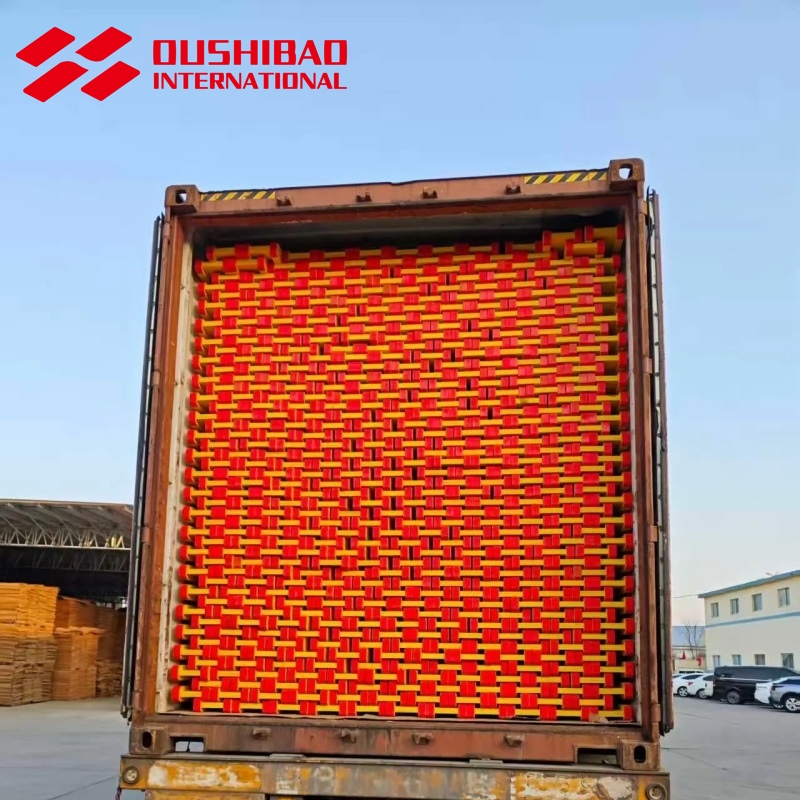

Loose loading available
Export pallet packaging available
Suitable for sea transportation
Custom packaging upon request
Safe and secure loading solutions

Why Choose OUSHIBAO?

30+ Years Manufacturing Experience

Professional manufacturer specializing in building materials and concrete formwork products.

OEM & ODM Service

Customized dimensions, private labels and packaging are available.

Strict Quality Control

Every beam is manufactured under consistent quality standards to ensure reliable performance.

Global Export Experience

Supplying customers across Europe, Australia, Southeast Asia, the Middle East and other international markets.

Company Introduction

Linyi Oushibao International Trade Co., Ltd.

Founded in 1993, Linyi Oushibao International Trade Co., Ltd. is located in Linyi, Shandong Province, China. With over 30 years of manufacturing experience, we specialize in plywood, MgO boards and concrete formwork products for customers around the world.

Our commitment to quality, innovation and customer service has made us a trusted supplier for construction projects in Europe, Australia, Southeast Asia, the Middle East and many other regions.

Frequently Asked Questions

Q1: What materials are used to manufacture H20 Timber Beams?
A: The flanges are made from premium solid pine timber, while the web is manufactured from high-strength multi-layer plywood bonded with industrial adhesives.

Q2: What are the standard beam sizes?
A: Standard dimensions include a beam height of 200 mm, flange width of 80 mm, and lengths such as 3900 mm, 4900 mm and 5900 mm. Customized lengths are also available.

Q3: Can H20 Timber Beams be used with other formwork systems?
A: Yes. They are compatible with most wall, slab, beam and column formwork systems and work well with Ringlock, Cuplock and other scaffolding systems.

Q4: Do you also supply formwork panels?
A: Yes. In addition to H20 Timber Beams, we also manufacture 3 Ply Yellow Shuttering Plywood Panels, providing customers with a complete formwork solution.

Q5: Is OEM service available?
A: Yes. We provide OEM and ODM services, including customized sizes, branding and packaging.

Q6: What payment methods do you accept?
A: We accept T/T, L/C at sight and other mutually agreed payment terms for international orders.
