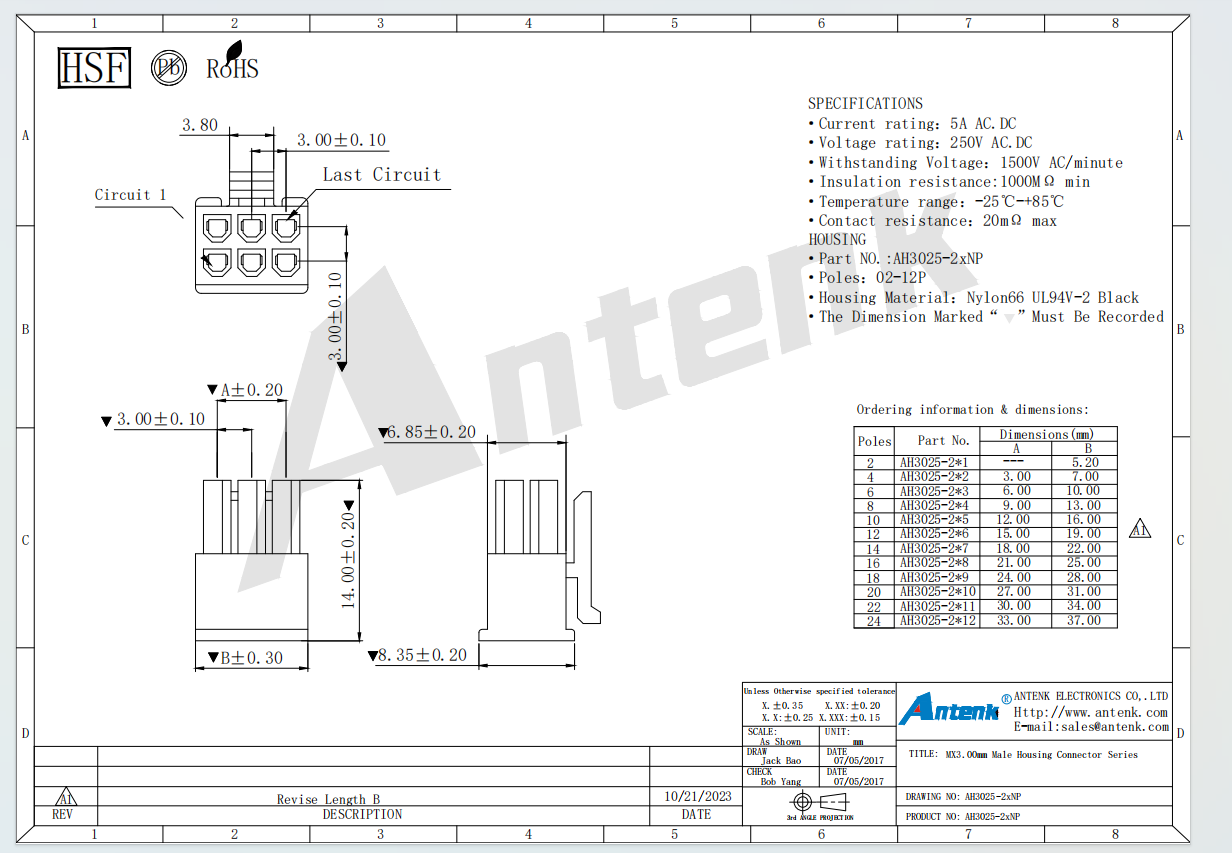

Manufactured by Huizhou Antenk Electronics Co., Ltd, the MX3.00mm male terminal connector series serves as core wire-to-board connection components to deliver stable power supply and interference-free signal transmission for diverse electronic wiring assemblies. This product series offers specifications ranging from 2 poles to 24 poles, with the male housing made of black Nylon66 material complying with UL94V 2 flame retardant standard. It is rated for 5A current and 250V AC DC voltage, capable of enduring 1500V AC withstand voltage within one minute, featuring minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, operating reliably in the temperature range from minus 25 degrees Celsius to 85 degrees Celsius. Our mature production workflow covers independent mold research and development, precision plastic injection molding, automated trimming, dimensional inspection and professional laboratory electrical safety testing. Equipped with Japanese precision injection molding machines and Taiwan high-speed processing equipment, all key dimensions are strictly controlled within specified tolerances, and the built-in locking buckle design effectively prevents accidental disconnection during long-term equipment operation.
This male terminal connector adopts crimping assembly mode, users need to crimp matched terminals onto wires first, then insert terminals into the male housing until locked firmly, and plug the whole assembly into corresponding female connectors to complete circuit connection. It is widely used in industrial control equipment, automotive electronic modules, smart household appliances, communication devices, precision testing instruments, computer peripherals and consumer electronic products. During application, users must follow rated electrical parameters to avoid overloading voltage and current, prohibit violent plugging and pulling to protect the lock structure, and keep the connector away from high temperature, dust and corrosive environments. All products comply with EU RoHS and REACH environmental regulations, most items obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications to guarantee stable safety performance.
Compared with competing connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pole numbers and dimensional parameters for this 3.00mm male terminal series. Our 10000 square meter production base with 250 skilled employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large-scale delivery capacity. As a certified Guangdong Famous Trademark enterprise, more than 70 percent of our connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system delivers superior anti-loosening and flame retardant performance, greatly reducing circuit failure risks and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
