1.27mm Pitch SMT Dual Row Header with 90° Angle Pins

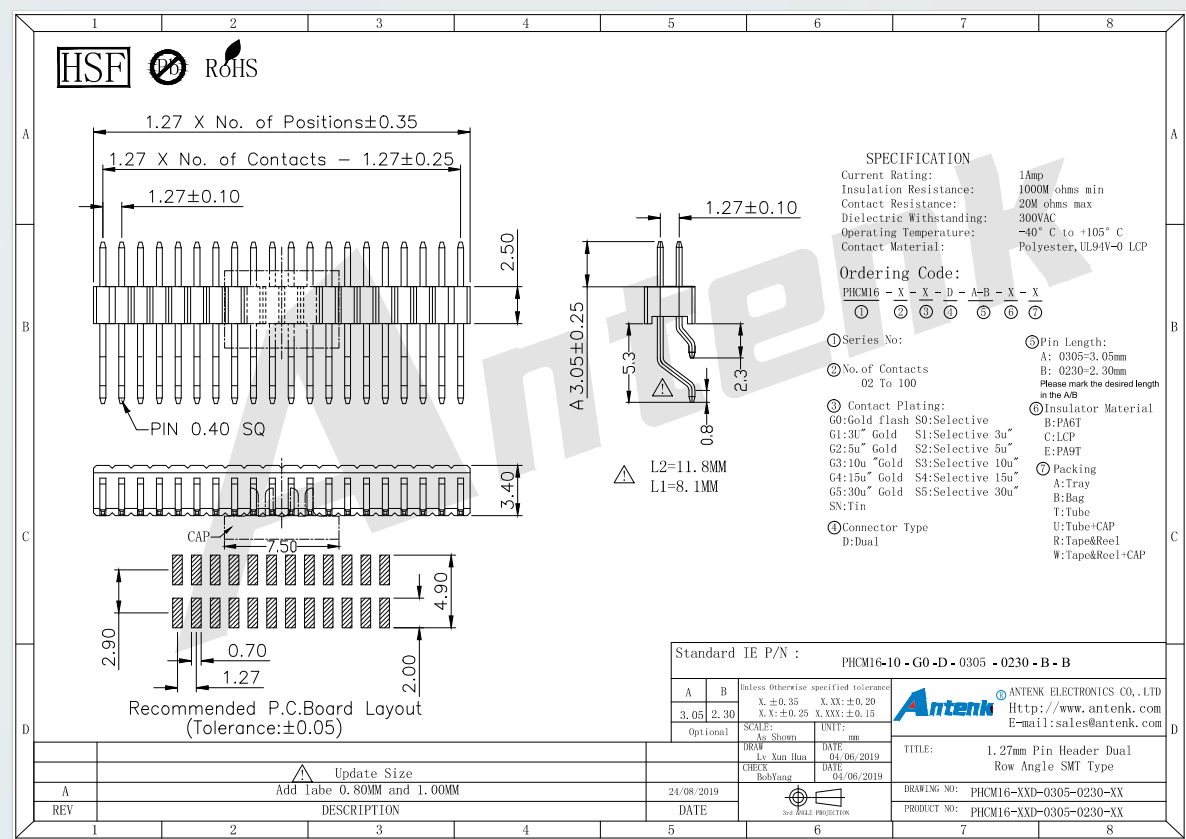

Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHCM16 series 1.27mm pitch dual row right angle SMT pin header delivers stable signal transmission and reliable low-current power interconnection for compact miniaturized PCB electronic devices. This connector supports contact specifications ranging from 2 pins to 100 pins, adopting square pins with 0.40mm side length, and provides diversified contact plating options including gold flash, selective gold plating and tin plating to meet different anti oxidation and conductive requirements. The insulator is fabricated from high performance LCP polyester material that complies with UL94V 0 flame retardant standard, perfectly adapting to high temperature SMT reflow soldering environments. It is rated for 1A working current, with minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and 300V AC dielectric withstand voltage, operating steadily within the temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Our complete production process covers independent precision mold design and development, high speed terminal stamping, high temperature resistant plastic injection molding, surface anti corrosion plating, automated assembly and strict electrical reliability testing in professional laboratories. Equipped with Taiwan high speed punching machines and Japanese precision injection molding equipment, this product offers two optional pin lengths and precise dimensional control, fully matching the tolerance requirements of standardized PCB layout.



This 90 degree dual row SMT pin header adopts surface mount soldering installation, suitable for automated high volume reflow soldering production, and can be supplied in tape and reel packaging to fit automatic SMT placement equipment. It is widely applied in industrial control modules, communication equipment, smart wearable devices, digital storage products, precision testing instruments, laptop peripherals and consumer electronic assemblies. During application, users must follow the official PCB layout dimensions for patch placement, strictly control the reflow soldering temperature curve to avoid insulator deformation caused by excessive heat, and store unused connectors in dry sealed packaging to prevent pin oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 quality management system certifications, with flexible packaging solutions including tray bag tube and tape reel for diverse production demands.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision hardware terminal molds, enabling flexible customization of pin count, pin length, plating type and insulating material for this miniature SMT header series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large batch delivery capacity. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi stage incoming in process and finished product inspection system provides outstanding high temperature resistance and stable soldering performance, effectively reducing patch welding failure risks and building long term trusted cooperative relationships with customers across Europe America Southeast Asia and other international regions.
