MX5.08 mm 90 Wafer Connector Series

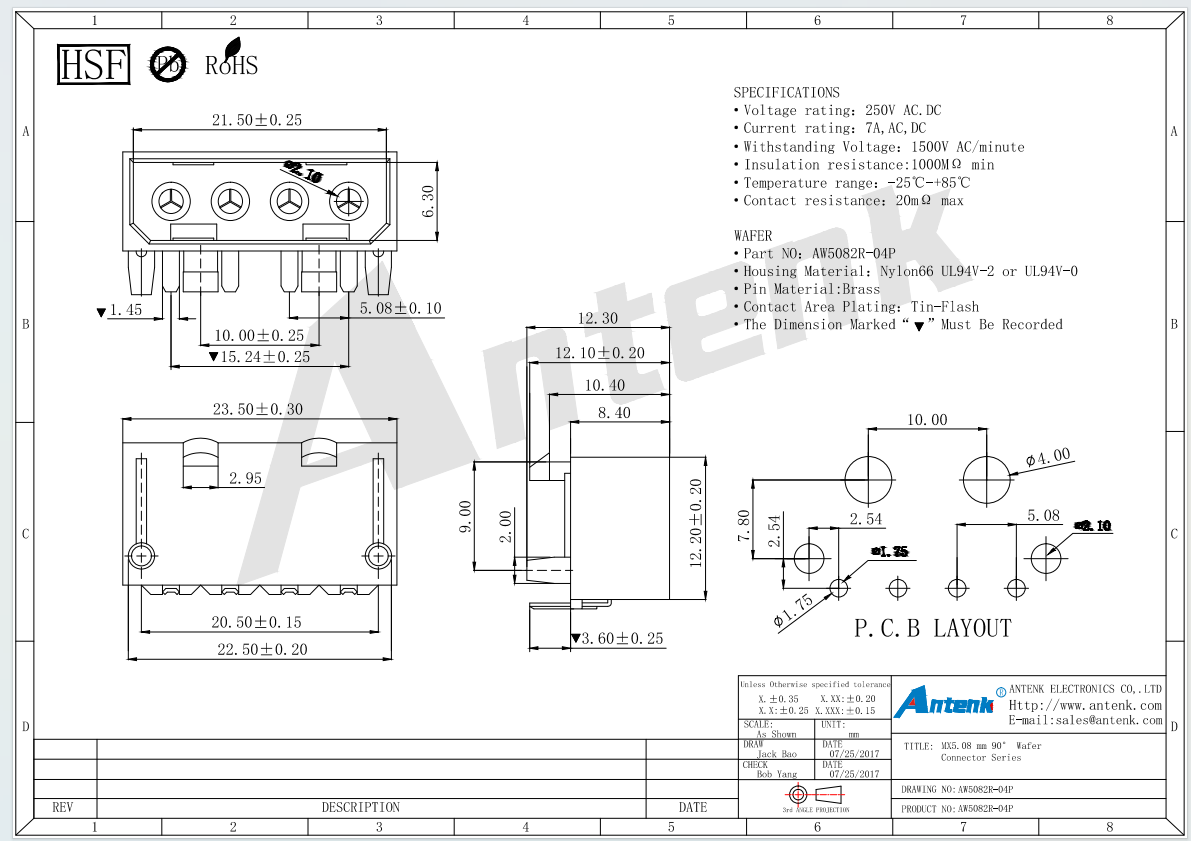

Manufactured by Huizhou Antenk Electronics Co., Ltd, the MX5.08mm 90-degree wafer connector series serves as reliable wire to board connection components to deliver stable power transmission and anti-interference signal transmission for diverse electronic equipment. This connector is made of high-performance Nylon66 material complying with UL94V 2 or UL94V 0 flame retardant standards, and adopts brass contact with tin flash surface plating to effectively prevent oxidation and guarantee stable conductivity. It supports a rated voltage of 250V AC DC and rated current of 7A, capable of enduring 1500V alternating current voltage within one minute, with minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, operating reliably within the temperature range from minus 25 degrees Celsius to 85 degrees Celsius. Our standardized production workflow includes independent precision mold development, high-speed terminal stamping, high temperature resistant plastic injection molding, anti-corrosion surface plating, automated assembly and strict electrical safety testing in professional laboratories. Equipped with Taiwan high-speed punching machines and Japanese precision injection molding equipment, all key dimensional parameters are strictly controlled within specified tolerances, and the optimized structural design delivers stable locking performance to avoid accidental disconnection during long-term equipment operation.



This right angle wafer connector adopts manual wire crimping assembly mode. Operators need to crimp matched terminals onto stripped wires, insert terminals into the plastic housing until fully locked, then solder the pin terminals onto PCB boards according to the official recommended PCB layout to complete circuit connection. It is widely applied in industrial control equipment, household appliances, communication power modules, automotive electronic components, precision testing instruments and consumer electronic devices. During installation and usage, users must follow official electrical parameter limits to avoid current and voltage overload, prohibit violent plugging and pulling to protect the locking structure, and store unused connectors in dry and ventilated environments to prevent plastic aging and terminal oxidation. All products comply with EU RoHS and REACH environmental regulations, most specifications pass UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 quality management system certifications to guarantee long-term safe and stable service performance.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision hardware terminal molds, supporting flexible customization of pole numbers and dimensional parameters for this 5.08mm wafer connector series. Our 10000 square meter production base with 250 skilled employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing devices, ensuring stable product consistency and large-scale bulk order delivery capacity. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets. Our multi-stage incoming, in-process and finished product inspection system brings outstanding flame retardant and anti-loosening performance, effectively reducing circuit connection failure risks and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
