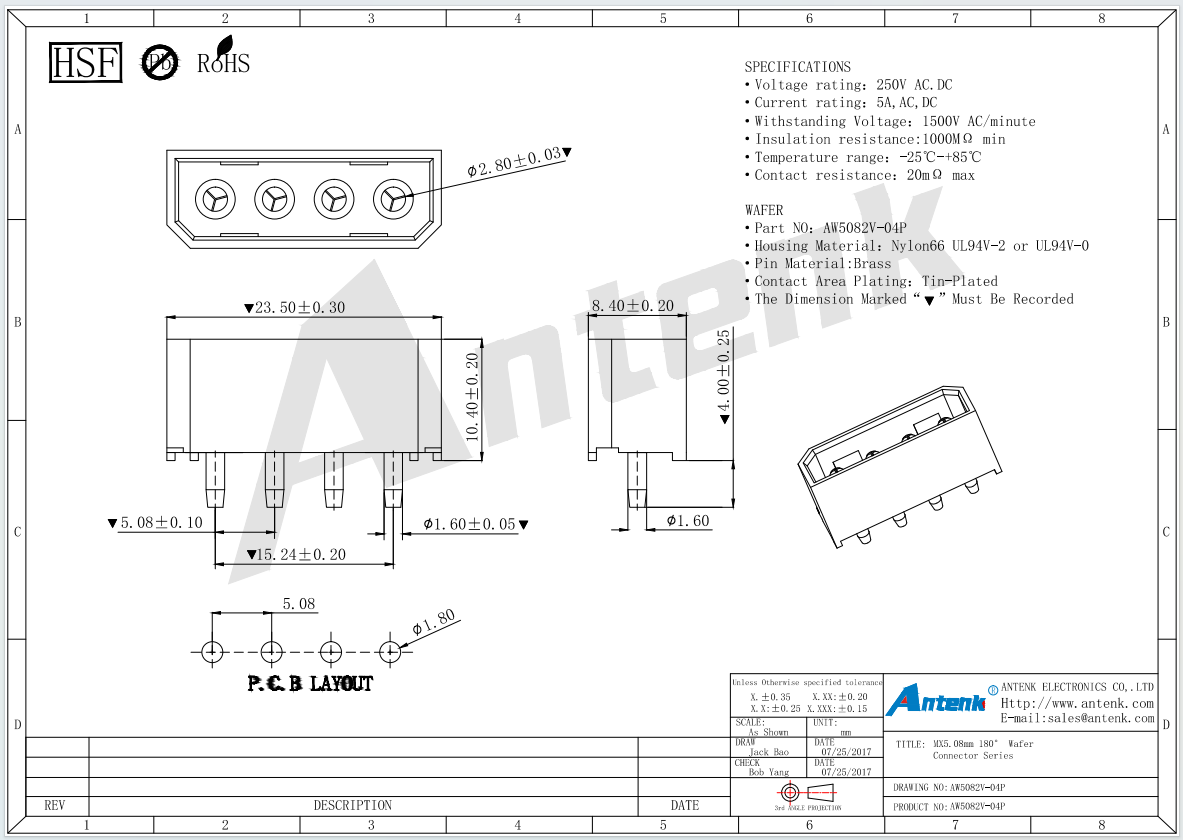

MX5.08mm 180° Wafer Connector Series

Manufactured by Huizhou Antenk Electronics Co., Ltd, the MX5.08mm 180 degree straight wafer connector is designed to deliver stable power transmission and reliable signal interconnection for wire to board electronic assembly scenarios. This connector adopts premium Nylon66 insulator material which meets UL94V 2 or UL94V 0 flame retardant standards, with brass pins processed by tin plating to resist oxidation and guarantee stable conductive performance. It features a rated voltage of 250V AC DC and rated current of 5A, capable of withstanding 1500V alternating current voltage per minute, with minimum insulation resistance of 1000MΩ and maximum contact resistance of 20mΩ, and operates steadily within the temperature range from minus 25 degrees Celsius to 85 degrees Celsius. Our complete manufacturing process covers independent precision mold research and development, high speed terminal stamping, high temperature resistant plastic injection molding, anti rust surface plating, automatic assembly and strict electrical reliability testing in professional laboratories. Equipped with Taiwan high speed punching machines and Japanese precision injection molding equipment, all key dimensional parameters are strictly controlled within standard tolerances, and the standardized pin layout perfectly matches conventional PCB welding requirements to ensure stable installation and connection.



This straight wafer connector adopts through hole soldering installation. Users need to complete wire crimping with matched terminals, lock terminals firmly into the plastic housing, then weld the straight pins onto printed circuit boards following the official PCB layout specification to realize stable circuit connection. It is widely applied in industrial control modules, smart household appliances, communication power supplies, automotive electronic accessories, precision testing instruments, digital storage equipment and consumer electronic devices. During installation and application, users must follow official rated electrical parameters to avoid overload damage, avoid excessive welding temperature which may lead to plastic deformation, and store spare connectors in dry environments to prevent pin oxidation and insulator aging. All products comply with EU RoHS and REACH environmental standards, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 quality management certifications to guarantee long term safe service performance.



Compared with other connector manufacturers, Antenk owns more than 250 sets of self developed plastic molds and 180 sets of precision metal terminal molds, supporting flexible customization of pin numbers and dimensional specifications for this 5.08mm straight wafer series. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent product quality and large batch order delivery capability. As a Guangdong Famous Trademark certified enterprise, more than 70 percent of our connectors are exported to global markets. Our multi stage strict quality inspection system delivers outstanding flame retardant and stable insulation performance, effectively reducing circuit connection failure risks and building long term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions.
